Supero X10SRL-F User Manual

Chapter 2: Installation
2-19
BIOS LICENSE
IPMI CODE
MAC CODE
BAR CODE
DESIGNED IN USA
1.01Rev:
X10SRL-F
1
+
LAN
CTRL
LAN
CTRL
BMC
JP3
JTPM1
JF1
JD1
T-SGPIO1
T-SGPIO2
T-SGPIO3
JOH1
JL1
JPME2
JWD1
JPG1
JPB1
JI2C2
JI2C1
JBR1
JPL2
JPL1
JVR1
JSD1
JSD2
JIPMB1
JPWR1
UID LED - LE1
LE2
LEDM1
JBT1
BT1
FAN4
FAN1
FAN2
FAN3
FANA
FAN5
J24
JPI2C1
JSTBY1
S-SATA3
I_SATA4
I-SATA0
I-SATA1I-SATA2
I-SATA3
S-SATA0
S-SATA1
S-SATA2
I-SATA5
SP1
CPU
CPU SLOT5 PCI-E 3.0 X8
CPU SLOT4 PCI-E 3.0 X8(IN X16)
USB0/1
DIMMC2
USB8/9
USB6/7
USB2/3(3.0)
LAN1
DIMMA2 DIMMA1
USB10(3.0)
LAN2
USB4/5
CPU SLOT2 PCI-E 3.0 X4(IN X8) PCH SLOT1 PCI-E 2.0 X4(IN X8)
COM2
COM1
DIMMB2 DIMMB1
DIMMD2
DIMMD1
IPMI_LAN
UID - SW
5V STBY
USB11(3.0)
IPMI
VGA
CPU SLOT7 PCI-E 3.0 X8
DIMMC1
CPU SLOT3 PCI-E 3.0 X4(IN X8)
CPU SLOT6 PCI-E 3.0 X8(IN X16)
Intel PCH
1
1

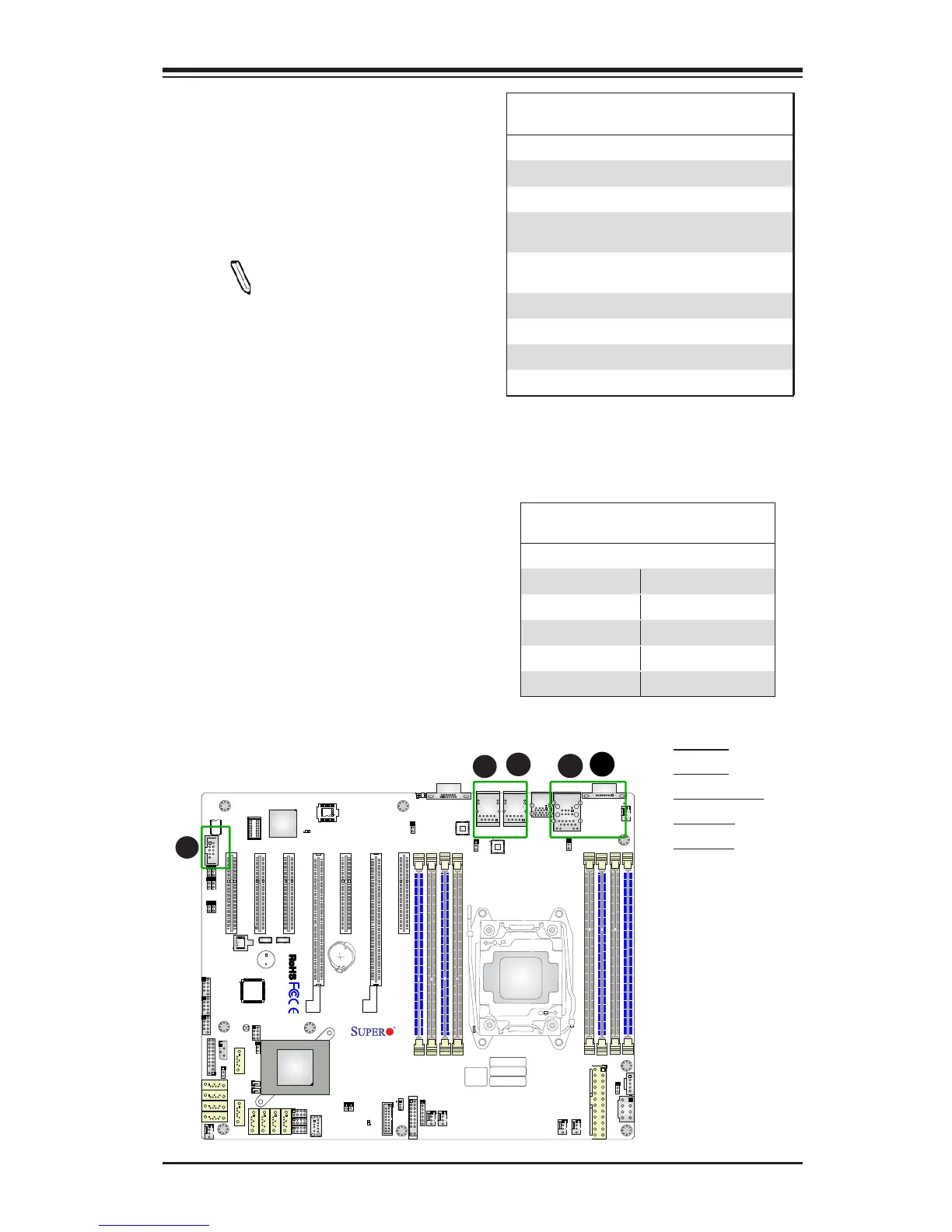

Ethernet Ports
Two Gigabit Ethernet ports (LAN1/LAN2)
and an IPMI_LAN port are located on
the I/O Backpanel to provide network
connections. These ports accept RJ45
type cables.
Note: Please refer to the LED
Indicator Section for LAN LED
information.
LAN Ports
Pin Denition
Pin# Denition
1 SGND 9 TD0+
2 GND 10 TD0-
3 TD3+ 11 Link 1000 LED
(Green, +3V3SB
4 TD3- 12 Link 1000 LED
(Yellow, +3V3SB)
5 TD2+ 13 Act LED
6 TD2- 14
7 TD1+ 15 SGND
8 TD1- 16 SGND
(NC: No Connection)
A. LAN2
B. LAN1
C. IPIMI_LAN
D. COM1
E. COM2
Serial Ports (COM1/COM2)
Serial port COM1 is located next to USB
0/1 on the I/O backplane. Another Serial
port header (COM2) is located next to
IPMI_LAN on the motherboard. See the
table on the right for pin denitions.
Serial Ports
Pin Denitions
Pin # Denition Pin # Denition
1 DCD 6 DSR
2 RXD 7 RTS
3 TXD 8 CTS
4 DTR 9 RI
5 SGND 10 SGND
A
B
C
D
E
