Supero X10SRL-F User Manual

Chapter 2: Installation
2-23
BIOS LICENSE
IPMI CODE
MAC CODE
BAR CODE
DESIGNED IN USA
1.01Rev:
X10SRL-F
1
+
LAN
CTRL
LAN
CTRL
BMC
JP3
JTPM1
JF1
JD1
T-SGPIO1
T-SGPIO2
T-SGPIO3
JOH1
JL1
JPME2
JWD1
JPG1
JPB1
JI2C2
JI2C1
JBR1
JPL2
JPL1
JVR1
JSD1
JSD2
JIPMB1
JPWR1
UID LED - LE1
LE2
LEDM1
JBT1
BT1
FAN4
FAN1
FAN2
FAN3
FANA
FAN5
J24
JPI2C1
JSTBY1
S-SATA3
I_SATA4
I-SATA0
I-SATA1I-SATA2
I-SATA3
S-SATA0
S-SATA1
S-SATA2
I-SATA5
SP1
CPU
CPU SLOT5 PCI-E 3.0 X8
CPU SLOT4 PCI-E 3.0 X8(IN X16)
USB0/1
DIMMC2
USB8/9
USB6/7
USB2/3(3.0)
LAN1
DIMMA2 DIMMA1
USB10(3.0)
LAN2
USB4/5
CPU SLOT2 PCI-E 3.0 X4(IN X8) PCH SLOT1 PCI-E 2.0 X4(IN X8)
COM2
COM1
DIMMB2 DIMMB1
DIMMD2
DIMMD1
IPMI_LAN
UID - SW
5V STBY
USB11(3.0)
IPMI
VGA
CPU SLOT7 PCI-E 3.0 X8
DIMMC1
CPU SLOT3 PCI-E 3.0 X4(IN X8)
CPU SLOT6 PCI-E 3.0 X8(IN X16)
Intel PCH
1
1
PowerButton
OH/Fan Fail LED
1
NIC1 LED
ResetButton
2
HDD LED
PowerLED
Reset
PWR
P3V3
P3V3_STB
P3V3_STB
P5V_STB
Ground
Ground
1920
P3V3
X
Ground
NMI
X
P3V3_STB
PWR Fail LED
NIC2 LED
A
B
HDD LED

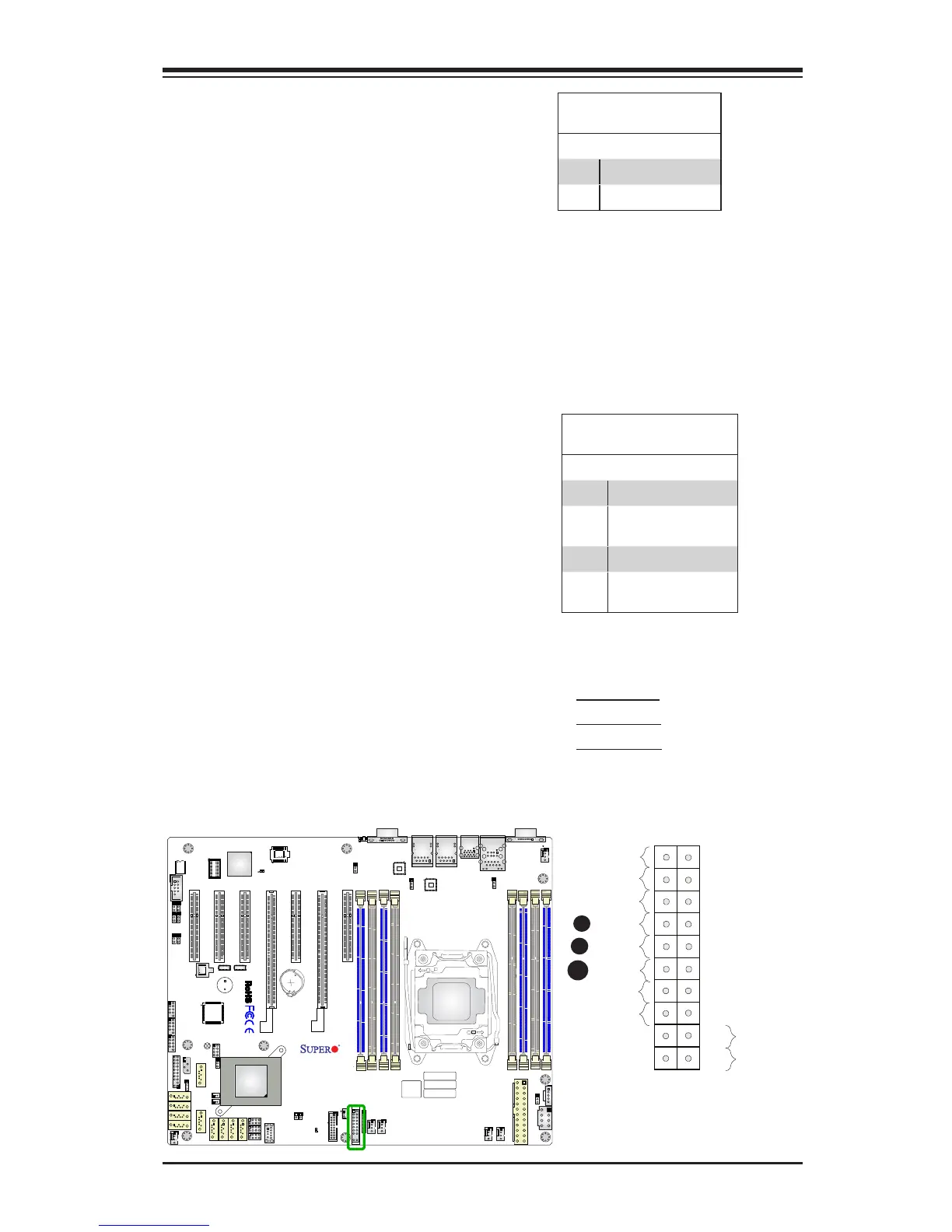

The HDD LED connection is located
on pins 13 and 14 of JF1. Attach a
cable here to indicate HDD activ-
ity. See the table on the right for pin
denitions.
HDD LED
Pin Denitions (JF1)
Pin# Denition
13 P3V3_STB
14 HD Active
NIC1/NIC2 LEDs
The NIC (Network Interface Control-
ler) LED connection for GLAN Port 1
is located on pins 11 and 12 of JF1,
and the LED connection for GLAN
Port 2 is on pins 9 and 10. Attach the
NIC LED cables to the LED indicators
mentioned above to display network
activity. Refer to the layout below for
the locations of NIC LED indicators.
GLAN1/2 LED
Pin Denitions (JF1)
Pin# Denition
9 P3V3_STB
10 NIC 2 Link/Acitivty
LED
11 P3V3_STB
12 NIC 1 Link/Acitivty
LED
A. HDD LED
B. NIC1 LED
C. NIC2 LED
