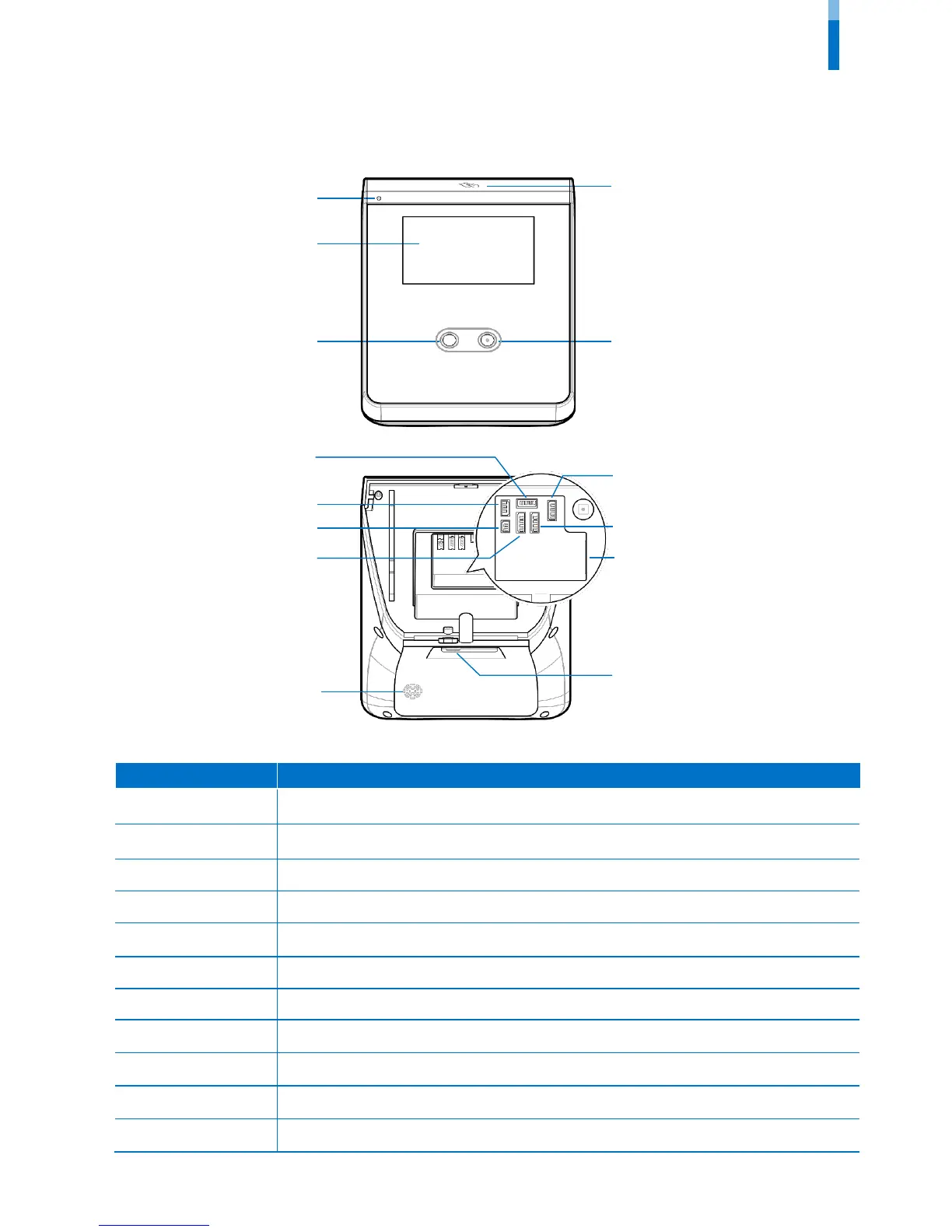

Name and function of each part
Name Description
Microphone
Delivers the voice of the user when the interphone is connected.
LCD screen Provides UI for operation.
IR camera
Captures IR images.
Camera Captures actual images.
RF card authentication
unit
Scans the card for entrance.
Speaker Delivers sound.
USB memory slot
Connects USB memory.
Mini USB cable slot Will be supported in the future.
TTL input (4 pins) Connects the TTL input cable.
RS-485 (4 pins) Connects the RS-485 cable.
Relay (3 pins) Connects the relay cable.
Microphone
LCD screen
TTL input (4 pins)
Power supply (2 pins)
Relay (3 pins)
RF card authentication unit
Speaker
Camera
Ethernet
Wiegand input (4 pins)
Wiegand output (4 pins)
RS-485 (4 pins)
IR camera
USB memory slot
Mini USB cable slot
