396-3815Y1 SureFire PumpRight for Raven RCM 23 Revised 01/16/2018
Master Switch
Connector
POWER CONNECTOR
12 Pin ISO Connector
214-00-3553Y1 - 10'
214-00-3554Y1 - 20'
214-00-3555Y1 - 30'
214-00-3556Y1 - 40'
214-00-3557Y1 - 50'
Implement Con-

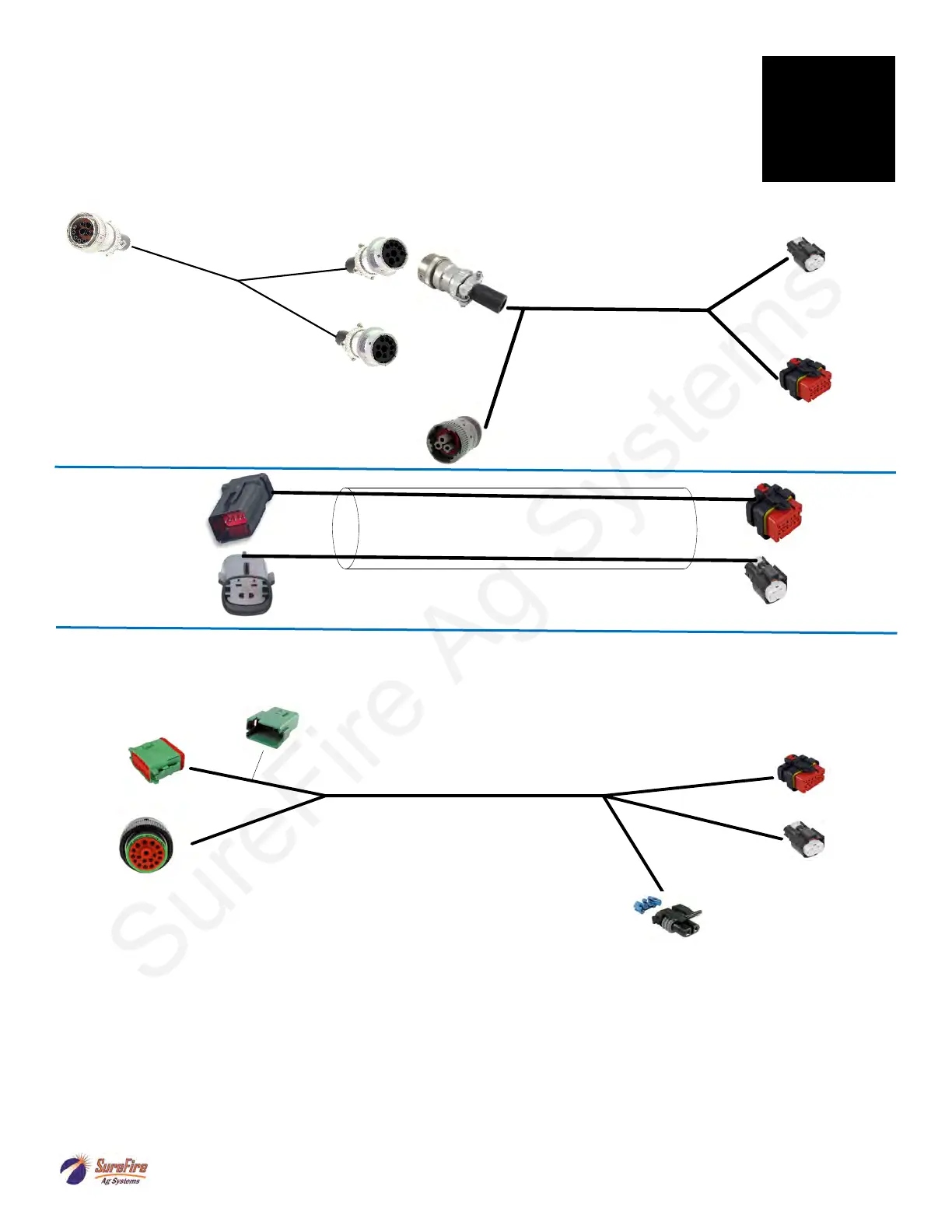

Harness Layout Below and on the next page are the harnesses in a typical setup.
Your layout may vary.
A layout could begin with a Center ISO Extension if there is a connection for that on the
implement.
ISO Y Harness
201-3306Y1
Front ISO Extension
Connect to Foot Switch Adapter
harness that goes to foot switch
in cab
Center ISO Extension
206-14-3385Y1 10’
-3386Y1 20’
-3387Y1 30’
-3388Y1 40’
1'
1'
1'
1'
1'
2'
Attach connector for this to harness so
jumper on planter can be kept safely here.
DT04-12SC-B016
When using this harness, change fuses on RCM Main Adapter Harness from 15 Amps to 7.5 Amps (QTY 2) and from 25
Amps to 15 Amps (QTY 1).
Plugging in the Raven RCM:
1. Plug the 35-pin and 23-pin connectors from the SureFire adapter harness (213-00-3467Y2) into the RCM.
2. Plug the 12-pin ISO and 2-pin Power connector on the long leads of the 213-00-3467Y2 harness into the
ISO and Power connectors shown above. Plug in an ISO terminator to the short ISO lead, or connect next
ISO module.
3. The RCM must have a foot switch in the cab. Make the necessary connections to connect the foot switch.
4. Plug in the Implement Height Switch if it is being used.
5. Plug in the final Product and Section harnesses.
Harness Option for Case 2000 Series Planter to Raven RCM 213-05-3873Y1
To Liquid Fert UCM on planter
To CAN 4 UCM on planter
To Foot Switch
Extension to Cab
ISO and Power connect to
3417 or -3467 harness (next
pages)
