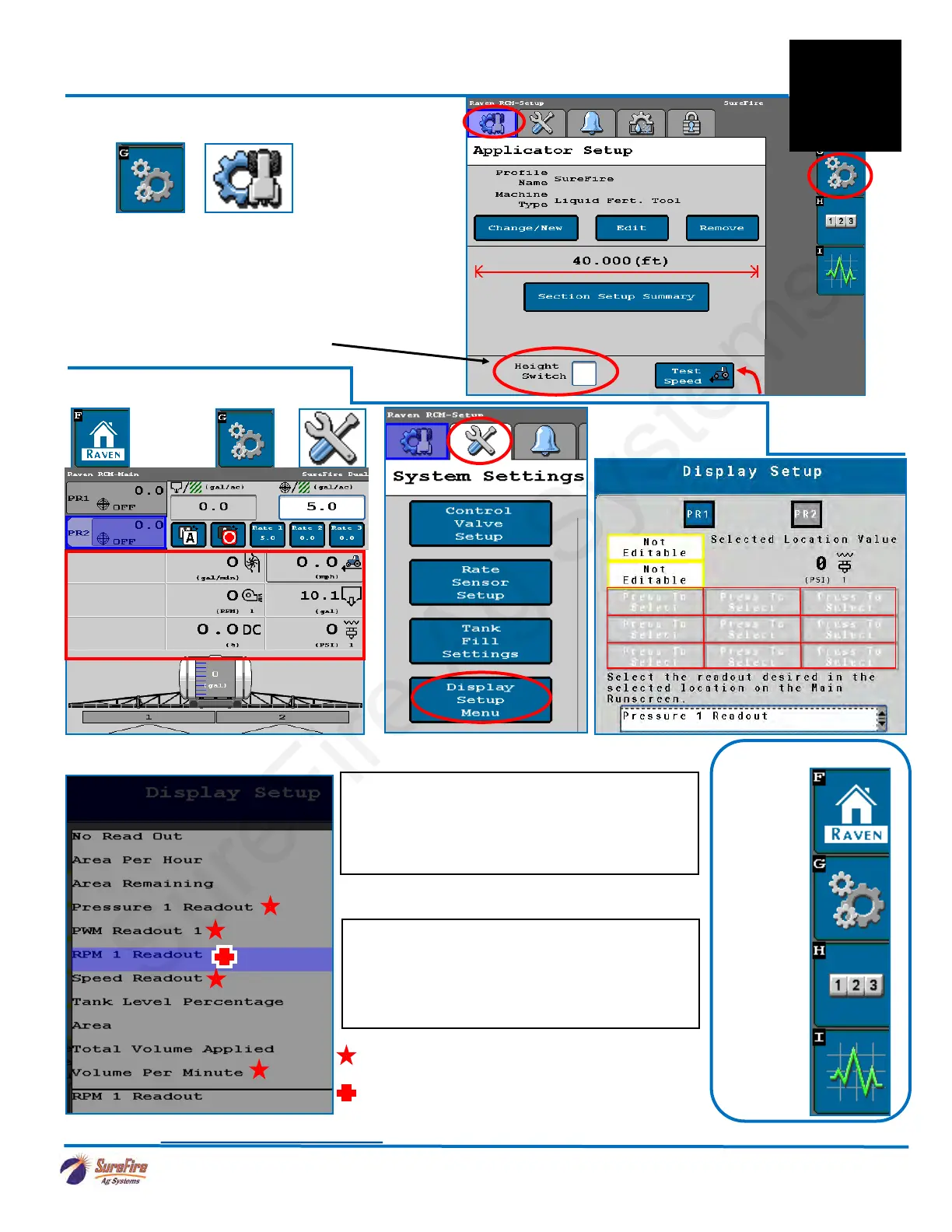

396-3815Y1 SureFire PumpRight for Raven RCM 47 Revised 01/16/2018
Display Setup Menu
Recommended for all systems
Recommended for hydraulic pump
systems with Pump RPM sensor
Run Screen Display Setup
Read the Raven RCM Operation Manual for safety information and additional setup/operating information.
Setup
Totals
Main
Diagnostics
Navigation
Implement Height Indicator Setup
Setup
Applicator
Setup
Check the Height Switch box if you are using a
Mercury Switch or Finger Style Switch for
Implement Height Indication.
Test Speed will be used later
when testing the system.
Setup instructions for Raven RCM and SureFire: 2 Liquid Products
• Valve Response Rate
• Control Deadband
• PWM Setup (Coil Frequency, High Limit, Low
Limit, PWM Standby)
Control Valve Setup Menu
• PM Calibration Pulse/Rev
• RPM Low Limit
• RPM High Limit
• RPM Sensor Assignment
Auxiliary Features Setup Menu
These 9 locations
can be edited from
Display Setup
Menu to show the
values you want to
see.
F
Setup &
Operation
To Next Page
