396-3815Y1 SureFire PumpRight for Raven RCM 44 Revised 01/16/2018

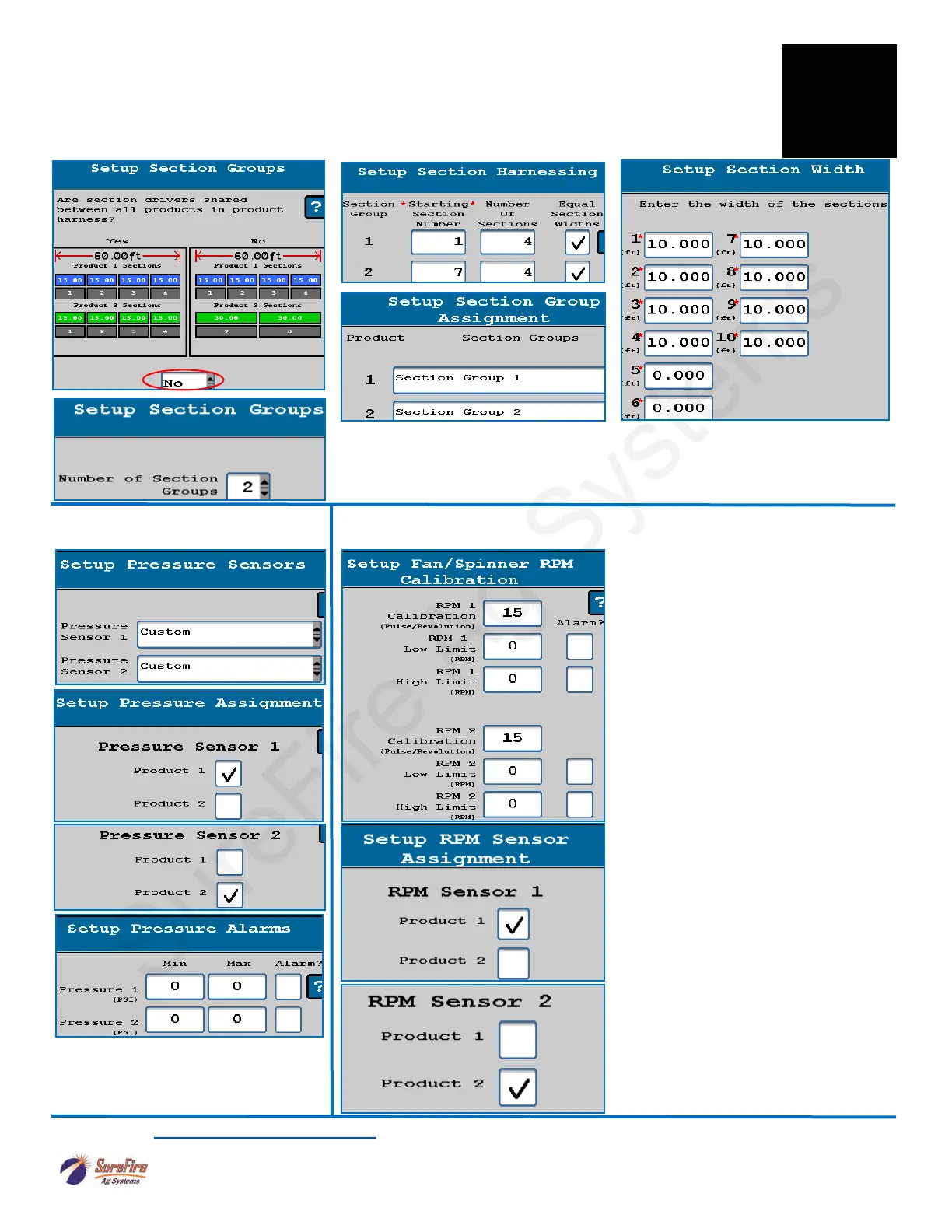

Setup instructions for Raven RCM and SureFire: 2 Liquid Products
8. SureFire Pressure Sensors will
be CUSTOM.
9. Pump RPM setup-for hydraulic
RPM Calibration for SureFire Pump
RPM sensor is 15 pulses/rev.
Set up as needed for your system.
Product 2 will be RPM Sensor 2 on the
SureFire harness.
If using a Pump RPM sensor, you will
set up a Display Setting on the Run
Screen with the Pump RPM readout
(described later).
Read the Raven RCM Operation Manual for safety information and additional setup/operating information.
Typical setup shown. Many different section setup combinations are possible.
The SureFire harness has Sections 1-6 on one connector and Sections 7-12
on another connector. You could set up each product with 12 sections and
share section drivers. You do NOT have to have the same number of sections
on each product.
For most systems, do not set any
pressure alarms. Checking the Alarm
box sets a control limit and the
pressure will not go beyond that.
7. Section Group Setup—Typical setup—Product 1 is Sections 1-6. Product 2 is Sections 7-12. Many
other setups are possible. For a typical dual product setup, you will say NO to sharing section drivers.
However, when using a Spartan injection pump that is going into a mixing chamber, say YES to sharing
section drivers with the main product.
F
Setup &
Operation
See note above on YES or NO
