Surefire PumpRight D70 - Harness Drawings

Wire 18AWG
unless otherwise
specified

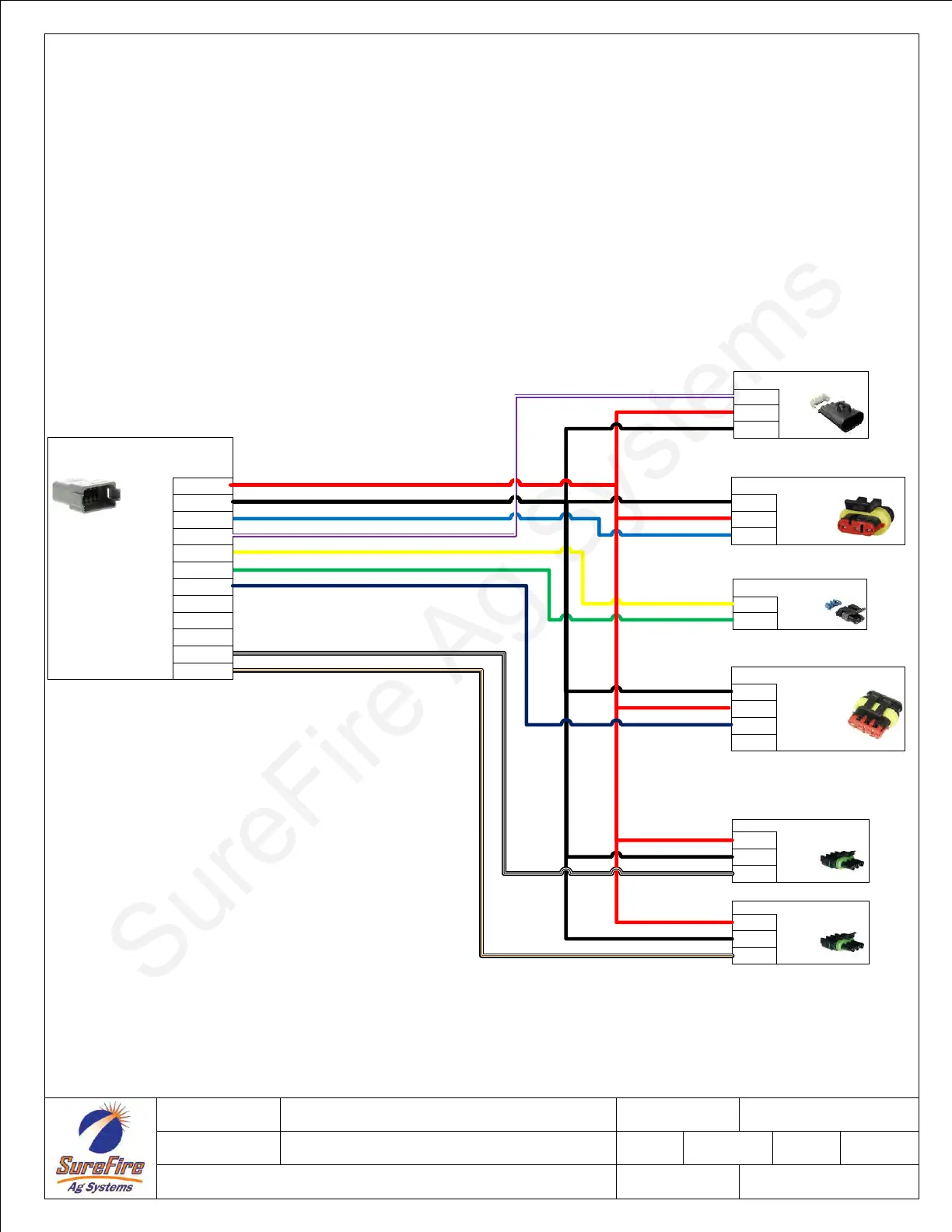

Final Cable for Tower With 1-2 Section Valves (pwm, flow, pres., sec 1, sec 2, fill flow)
207-3461Y1
Final Cable for Tower With 1-2 Section Valves (pwm, flow, pres., sec 1, sec 2, fill flow)
207-3461Y1
10/26/2017
Brandon Cavenee
Final Cable for Tower With 1-2 Section Valves (pwm, flow,
pres., sec 1, sec 2, fill flow)
Part No:
Description:
Drawn By:
Last Edit
Date:
Copyright 2016 SureFire Ag Systems, Reproduction or other use of drawing
without express written permission from SureFire Ag Systems is forbidden
Revision
A-01
10/26/2017
Brandon Cavenee
Final Cable for Tower With 1-2 Section Valves (pwm, flow,
pres., sec 1, sec 2, fill flow)
Part No:
Description:
Drawn By:
Last Edit
Date:
26
Copyright 2016 SureFire Ag Systems, Reproduction or other use of drawing
without express written permission from SureFire Ag Systems is forbidden
Revision
A-01
PWM
A
150 MP Tower 2-PIN
B
PWM +
PWM -
PWM
A
150 MP Tower 2-PIN
B
PWM +
PWM -
YEL
GRN
PWM
A
150 MP Tower 2-PIN
B
PWM +
PWM -
YEL
GRN
7
8
BLK
A
Signal
+12V DC
WP TOWER 3-PIN
B
C
GND
SECTION 2
RED
WHT/BRN
BLK
A
Signal
+12V DC
WP TOWER 3-PIN
B
C
GND
SECTION 2
RED
WHT/BRN
BLK
A
Signal
+12V DC
WP TOWER 3-PIN
B
C
GND
SECTION 1
RED
WHT/BLK
BLK
A
Signal
+12V DC
WP TOWER 3-PIN
B
C
GND
SECTION 1
RED
WHT/BLK
PUR/WHT
RED
BLK
BLU
YEL
DRK BLU
GRN
1
2
3
4
5
6
+12V DC
Flow Signal
GND
Pressure
PWM (+)
PWM (-)
DEUTSCH 12-pin
DT04-12P
Pump
7
8
9
10
11
12
Fill Flow
Pump RPM
Bin Level
Open
Section 1
Section 2
1
2
3
4
5
6
+12V DC
Flow Signal
GND
Pressure
PWM (+)
PWM (-)
DEUTSCH 12-pin
DT04-12P
Pump
7
8
9
10
11
12
Fill Flow
Pump RPM
Bin Level
Open
Section 1
Section 2
WHT/BLK
WHT/BRN
1
GND
+12V
AMP SUPER SEAL TOWER 3-PIN
BLK
RED
2
Flowmeter
3
Signal
BLU
1
GND
+12V
AMP SUPER SEAL TOWER 3-PIN
BLK
RED
2
Flowmeter
3
Signal
BLU
1
GND
+12V
AMP SUPER SEAL TOWER 4-PIN
BLK
RED
2
Fill Flowmeter
3
Signal
DRK BLU
4
Open
1
GND
+12V
AMP SUPER SEAL TOWER 4-PIN
BLK
RED
2
Fill Flowmeter
3
Signal
DRK BLU
4
Open
Pressure
A
150 MP SHROUD 3-PIN
B
C
Pressure
A
150 MP SHROUD 3-PIN
B
C
RED
BLK
Pressure
A
150 MP SHROUD 3-PIN
B
C
RED
BLK
Signal
+12V
GND
Pressure
A
150 MP SHROUD 3-PIN
B
C
RED
BLK
Signal
+12V
GND
Include Dust Cap
