396-3815Y1 SureFire PumpRight for Raven RCM 5 Revised 01/16/2018
**2.6—53 GPM flow-
meter uses quantity 2
of bracket 204-01-
463911-100

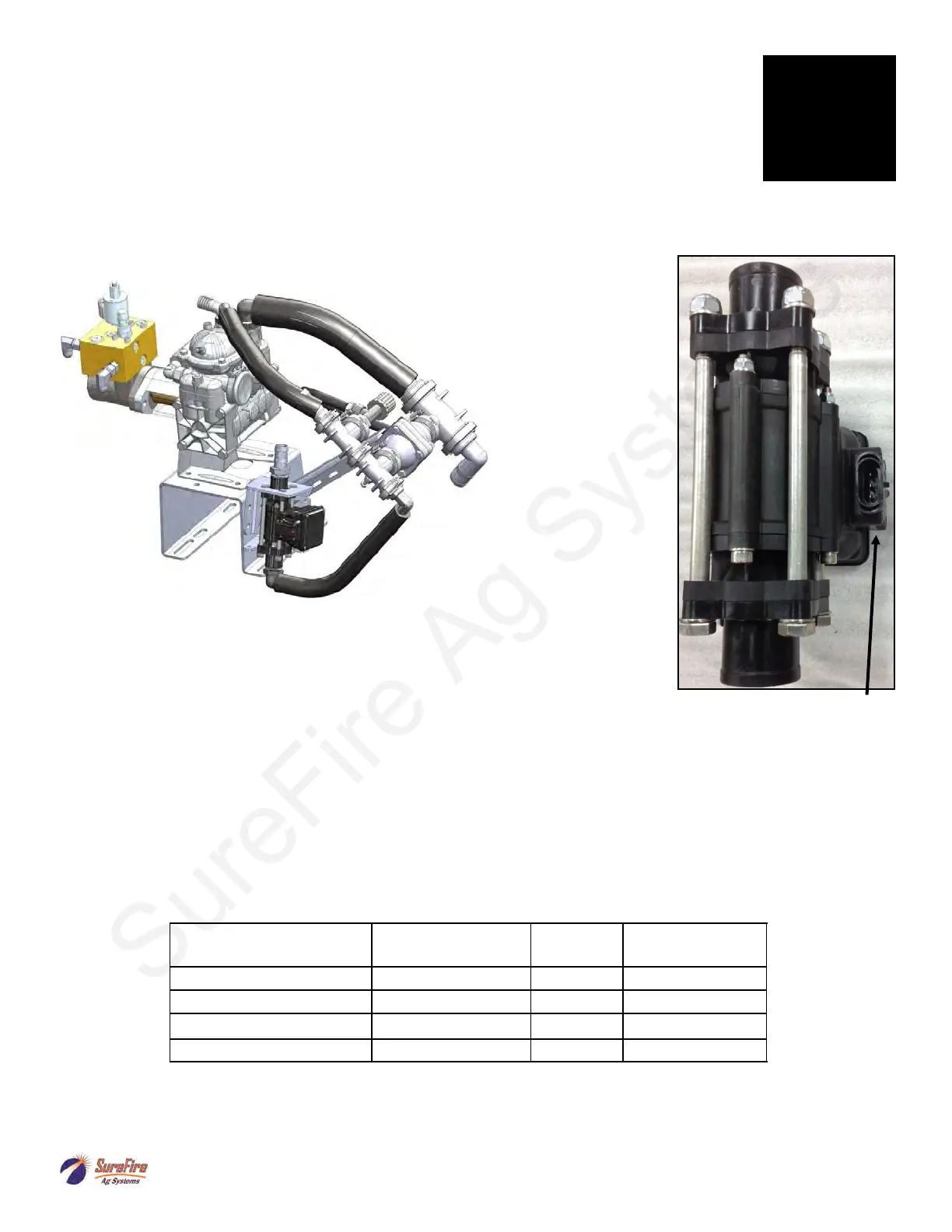

Electromagnetic Flowmeter Kits
0.3 - 5 GPM Item Number 500-02-2050
0-6 - 13 GPM Item Number 500-02-2060
1.3 - 26 GPM Item Number 500-02-2070
2.6 - 53 GPM Item Number 500-02-2080
Kits include flowmeter, adapter harness, mounting bracket, hose barb fittings & hose clamps.
Flowmeter Model
(black meter with orange label)
Flow
Calibration (pls/gal) FPT Size
Hose Barb
In kit
0.3-5.0 GPM 3000 3/4” 3/4”
0-6 –13 GPM 2000 3/4” 1”
1.3 - 26 GPM 2000 1” 1”
2.6 - 53 GPM 2000 1 1/4” 1 1/2”
B
Components
Liquid
Electromagnetic flowmeters are superior to traditional turbine flowmeters in two basic ways. First,
they have no moving parts. This translates into no wear items or potential for contaminants to jam a spinning
turbine.
Second, electromagnetic flowmeters detect the flow by electrically measuring the velocity of the liquid,
which makes them independent of viscosity or density of the fluid measured. They are extremely accurate
using the standard calibration number. SureFire still recommends you perform a catch test to verify the
system is properly installed and configured.
Mounting Bracket,
400-1208A1
(not used for 2.6-53
model**)
Each flowmeter has a different diameter sensing element. Although the calibration numbers may be the same, the
proper sized flowmeter must be used.
Earlier model flowmeters (meters with white labels with black text) have different calibration numbers. See the
documentation for those meters to find the calibration numbers.
The latest version of the SureFire Electromagnetic
flowmeter has a black molded body and an orange
sticker. The meter has a molded in 3-pin Superseal
connector for improved sealing.
SureFire has adapter harnesses available to adapt to
other flow meter connections.
Before doing any arc welding on the implement, unplug the cable to the
flowmeter, or damage to the flowmeter may result.
Do not power wash the
flowmeter. High
pressure spray directed
at the back edge of the
face plate or at the wire
connector may allow
water into the
flowmeter electronics.
Amp SuperSeal 3-pin connector
Use adapter 201-17842
to connect to 3-pin MP harness
