396-3815Y1 SureFire PumpRight for Raven RCM 40 Revised 01/16/2018

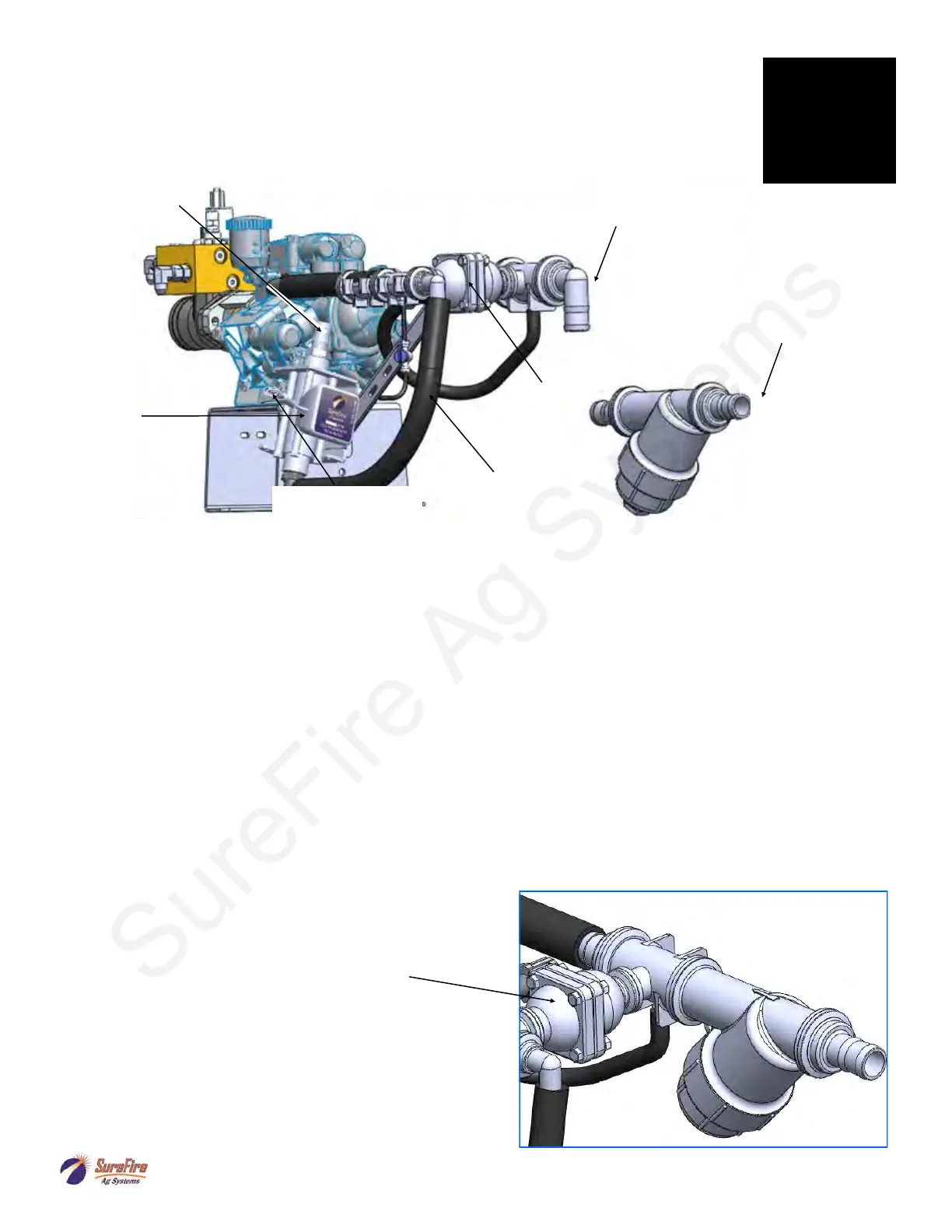

D70 & D115 Liquid Plumbing Connections
Inlet Hose Barb
Outlet Hose to
Flowmeter
Pressure
Relief Valve
SureFire Electro-
magnetic Flow-
meter
Flow Connector—
3 Pin MP Shroud
Flowmeter
outlet
Inlet: The D70 and D115 PumpRight is shipped with a 1 1/2” inlet hose barb. Attach this to the hose from
your supply tank and strainer . A 1 1/2” 90 degree hose barb is included and can be substituted.
Inlet Strainer: A 50 mesh strainer is included in the pump kit. The manifold strainer includes two hose
barbs so it can be mounted anywhere in the inlet line. If space allows, the strainer can be mounted directly
to the inlet plumbing assembly as shown below.
Outlet: The outlet is plumbed directly to the flowmeter with 1” hose. As shown above, the flowmeter may be
mounted directly to the PumpRight pump. The flowmeter outlet is a 1” hose barb. The outlet hose should be
a minimum of 24” long with a gentle curve prior to any fittings for optimum flowmeter performance. The
flowmeter outlet will attach to your manifold(s) or section valves. A 3/4” hose barb is included in the bag of
parts and can be substituted on the flow meter outlet.
Pressure Relief Valve (PRV): The PRV is a 100 psi relief.
If there is a restriction that creates over 100 psi in the
system, the PRV will open allowing the excess flow to pass
back to the inlet side of the pump. This protects the pump
and fertilizer system from damage.
Strainer - place
in line before
pump inlet
E
Installation
Overview
