396-3815Y1 SureFire PumpRight for Raven RCM 36 Revised 01/16/2018
PumpRight Installation

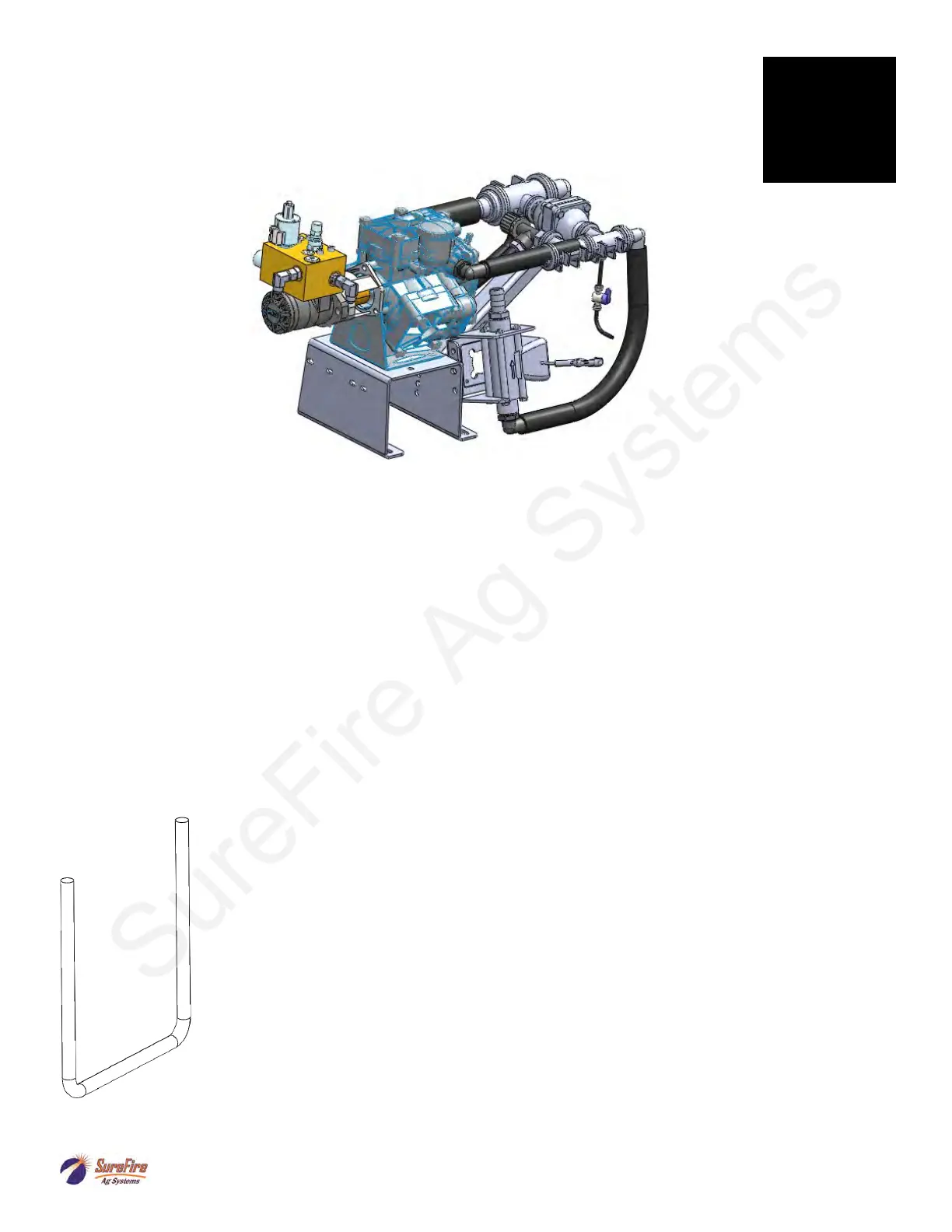

3 Chamber , D115 Pump Shown. Other PumpRight sizes function identically, but will re-
quire slightly different mounting due to the different physical size of the pump.
Mounting
1. Mount pump in your preferred location. The PumpRight pump has excellent suction and priming ability,
so it can be mounted away from or above fertilizer tanks.
2. SureFire has pump mounting brackets available for many models of planters and for mounting in different
locations to fit your system setup.
3. SureFire has U-Bolts available to mount the pump directly to multiple bar sizes shown below. If the U-
Bolts will not work, order the universal backer plate, number 400-1973A1 which allows use of 1/2” bolts to
clamp to any size tube up to 8” wide.
E
Installation
Overview
Mounting Bar Item Number Item Description
3” x 3” 380-1022 1/2" U-bolt Kit - 1/2", fits 3" x 3" tube - (3" opening )
4" x 4" 380-1023 1/2" U-bolt Kit - 1/2", fits 4" x 4" tube - (4" opening )
4" x 6" 380-1015 1/2" U-bolt Kit - 1/2", fits 4" x 6" tube - (4" opening)
380-1017 1/2" U-bolt Kit - 1/2", fits 6" x 4" tube - (6" opening)
5" x 7" 380-1014 1/2" U-bolt Kit - 1/2", fits 5" x 7" tube - (5" opening)
380-1016 1/2" U-bolt Kit - 1/2", fits 7" x 5" tube - (7" opening)
6” x 7” 380-1018 1/2" U-bolt Kit - 1/2", fits 7" x 6" tube - (7" opening)
7" x 7" 380-1001 1/2" U-bolt Kit - 1/2", fits 7" x 7" tube - (7" opening )
6” x 10” 380-1021 1/2" U-bolt Kit - 1/2", fits 6" x 10" tube - (6" opening)
8" x 12" 380-1019 1/2" U-bolt Kit - 1/2", fits 8" x 12" tube - (8" opening)
8" x 16" 380-1020 1/2" U-bolt Kit - 1/2", fits 8" x 16" tube - (8" opening)
