396-3815Y1 SureFire PumpRight for Raven RCM 37 Revised 01/16/2018

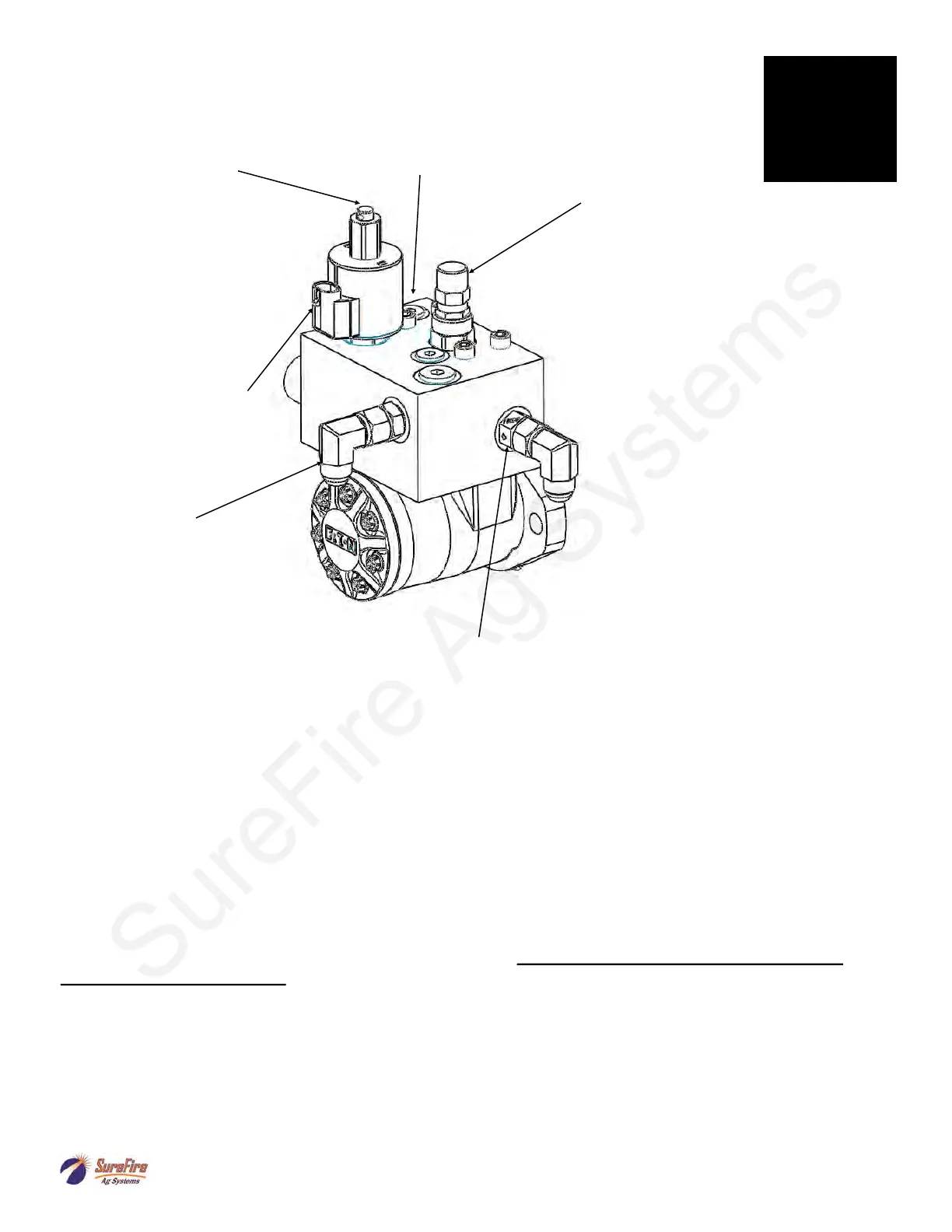

PumpRight Hydraulic Connections
PWM Valve
Load Sense Port—For power
beyond hydraulic use only.
How it Works with Power Beyond Hydraulics
This valve is designed to work with power beyond hydraulics. This configuration will not require a stand-
ard tractor remote hydraulic valve. First, remove the load sense plug and install a #6 male boss x #6 JIC
adapter fitting, SureFire PN 161-01-6MB-6MJ. Then run a 3/8” or 1/4” hydraulic hose back to the tractor.
This hose will connect to the load sense port on the tractor. The bypass valve must be closed to use
power beyond hydraulics. The load sense line will signal the tractor hydraulic system to supply the flow
needed by the pump to meet your application rate. The SureFire valve has an internal load sense check
valve, which is required for power beyond hydraulics.
Return oil to Tank - Check valve
included on return port
Bypass Valve—Remove the cap to
access a bypass needle valve. This
valve is shipped from the factory
closed. The only case when valve
should be open is when running in
series with other hydraulic motors.
Depending on your tractor and exact
hydraulic plumbing scenario your pump
may turn very slowly when it should
stop. To stop the pump completely,
open the bypass valve slightly.
To adjust the Bypass Needle Valve,
first loosen the lock nut. Do not
overtighten the needle valve.
Pump Rotation Check Valve
A check valve is included on the outlet port of the hydraulic valve. This prevents the pump from running in
the wrong direction. If ran in the wrong direction, liquid will be pumped, however the hydraulic valve will
not be able to control the flow. The check valve can be identified by the Part Number 1108R stamped on
it and a flow direction arrow.
Pressure from
Tractor
PWM Valve Connector -2 Pin
MP Shroud
Manual Override - Turn
and lift the manual override
to check for proper
hydraulic connections.
Override will completely
open valve, so limit
tractor hydraulic flow to
valve.
(May need to clean packed
dirt to allow movement of
override knob)
Push down and turn 1/2
turn CW to return to
operating position.
E
