396-3815Y1 SureFire PumpRight for Raven RCM 48 Revised 01/16/2018
Initial Operation in AUTO mode: (Could also do Nozzle Flow Check).
1. Enter a Test Speed by pressing on the Speed (mph) window or at Setup > Applicator Setup.
2. Toggle system to AUTO / ENABLED. Select a Rate.
3. Height switch must be DOWN (or uncheck Height Switch box).
4. Turn on Master Switch.
5. Monitor Actual Rate (gal/ac), Flow (gal/min), PSI, DC, Pump RPM.
6. Go to Switch Box (above). Turn Sections OFF and ON.
7. Turn Master Switch OFF. (NOTE: Pressure will be much less with water than with heavier, thicker fertilizer.)
Initial Operation in MANUAL mode: (See Optional Manual Pump Operation below)
1. Fill the system with water. For first time startup, open air bleed valve until a steady stream comes out.
2. Enter a Test Speed by pressing on the Speed (mph) window or at Setup > Applicator Setup.
3. Navigate to MANUAL MODE as shown above (toggle between Auto and Manual with the Auto/Manual button).
4. ENABLE system (toggle between Enable / Disable with the Enable / Disable button).
5. Height switch must be DOWN (or uncheck Height Switch box).
6. Turn on Master Switch. Press and hold + to increase flow.
7. Monitor Flow (gal/min), PSI, DC, Pump RPM (if using Hydraulic pump with RPM sensor).
8. Go to Switch Box. Turn Sections OFF and ON.
9. Turn Master Switch OFF.
OPTIONAL MANUAL PUMP OPERATION:
Go to Diagnostics > Tests > Calibrate PWM LIMITS. Here you can manually run the pump without the system shutting
down if it doesn’t read flow immediately. Turn on Master Switch, Start the test, hold + button to increase pump speed.

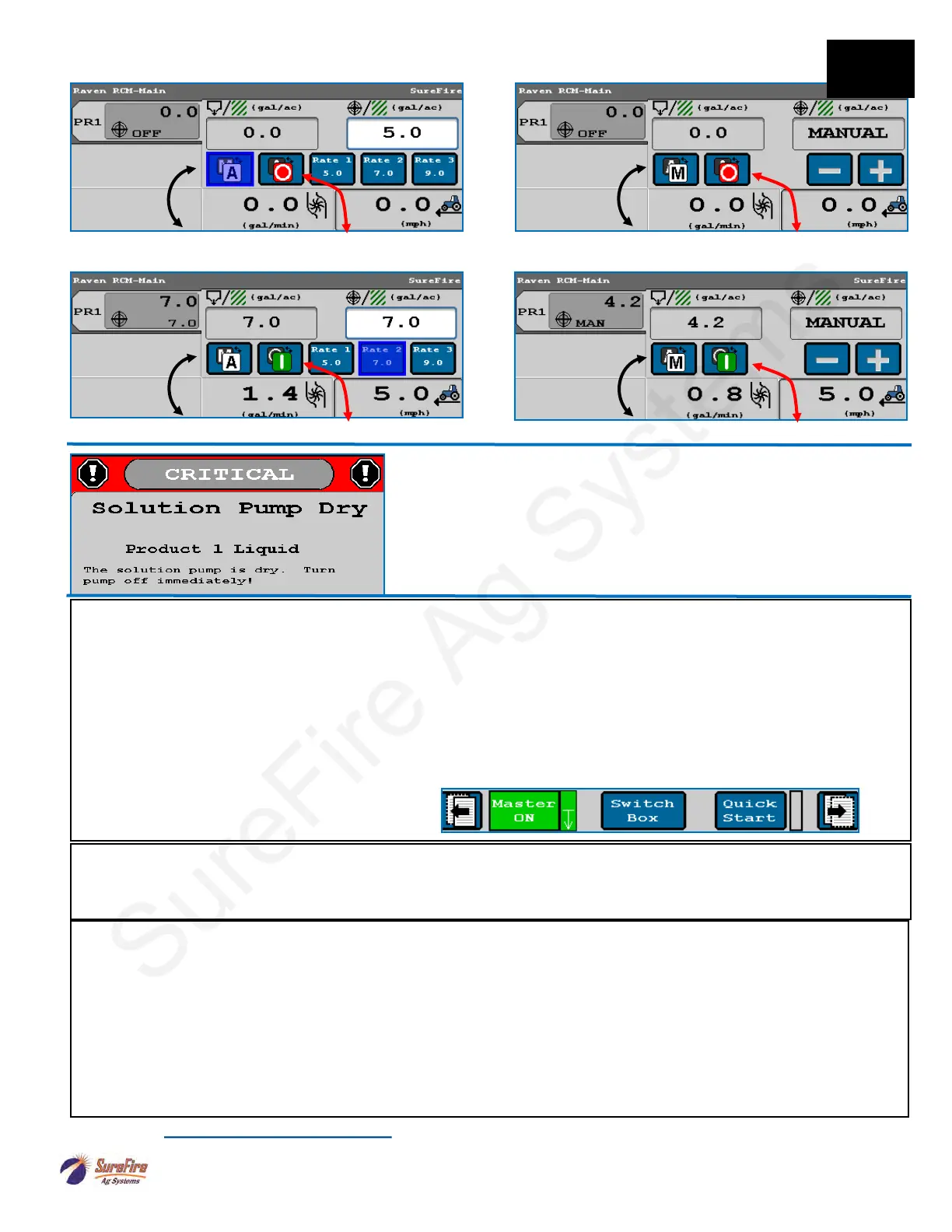

Advanced Setup and Operating Information, Run Page, Initial Startup
AUTO MODE / DISABLED
MANUAL MODE / DISABLED
AUTO MODE / ENABLED
MANUAL MODE / ENABLED
If flow or pressure is not immediately detected, the Solution Pump Dry
warning will come up and the system will shut down.
Solution Pump Dry is NOT a problem for SureFire electric pumps or for
SureFire PumpRight hydraulic diaphragm pumps. It is a problem for
centrifugal pumps.
Read the Raven RCM Operator’s Manual for safety information and additional setup/operating information.
