396-3815Y1 SureFire PumpRight for Raven RCM 41 Revised 01/16/2018

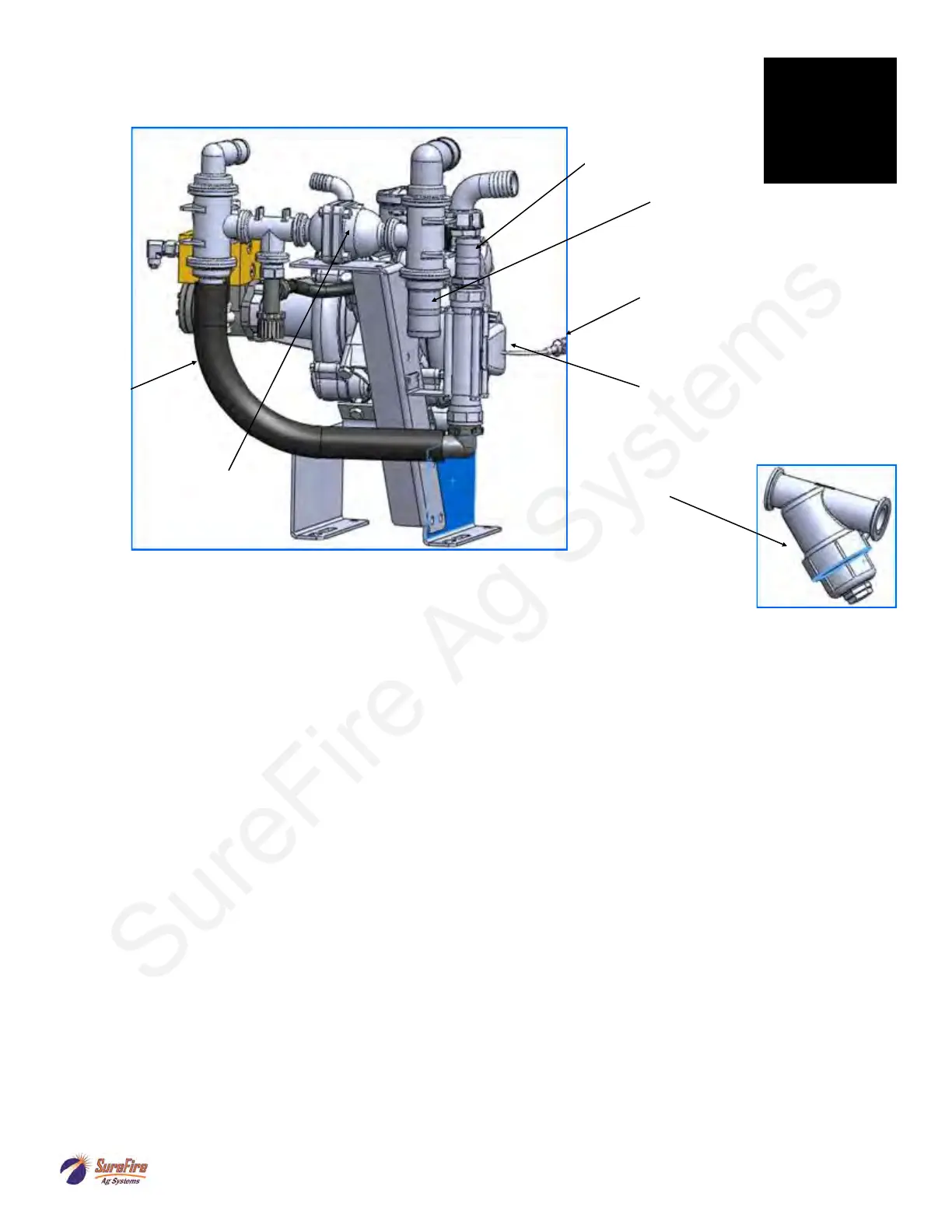

D160 & D250 Liquid Plumbing Connections
Inlet Hose Barb
Outlet Hose to
Flowmeter
Pressure Relief
Valve
SureFire
Electromagnetic
Flowmeter
Flow Connector—
3 Pin MP Shroud
Flowmeter
outlet
Inlet: The D160 and D250 PumpRight is shipped with a 2” inlet hose barb. Attach this to the hose from
your supply tank and strainer . A 2” 90 degree hose barb is included and can be substituted.
Inlet Strainer: A 50 mesh strainer is included in the pump kit. The manifold strainer includes two hose
barbs so it can be mounted anywhere in the inlet line. If space allows, the strainer can be mounted directly
to the inlet plumbing assembly.
Outlet: The outlet is plumbed directly to the flowmeter with 1 1/2” hose. As shown above, the flowmeter
may be mounted directly to the PumpRight pump. The flowmeter outlet is a 1 1/2” hose barb. The outlet
hose should be a minimum of 24” long with a gentle curve prior to any fittings for optimum flowmeter
performance. The flowmeter outlet will attach to your manifold(s) or section valves.
Pressure Relief Valve (PRV): The PRV is a 100 psi relief. If there is a restriction that creates over 100 psi
in the system, the PRV will open allowing the excess flow to pass back to the inlet side of the pump. This
protects the pump and fertilizer system from damage.
Strainer - place in line
before pump inlet
E
Installation
Overview
