396-3815Y1 SureFire PumpRight for Raven RCM 6 Revised 01/16/2018
Section Valves and LiquiShift Valves
Liquid
inlet
105-100075BRB90
105-100PLG (alternate
105-100PLG025 includes 1/4” pipe
thread for gauge)
103-2501Y1
KZ TX2 Valve
(single complete valve)
117-211-0066
Liquid outlet to
each section
Additional Parts:
1” Gasket 105-100G-H
1” Clamp 105-FC100
How section valves work
Section valves can be assembled into
groups with a common inlet to control flow to each
section. Common assemblies use up to 5-6
valves, however, more can be used where
practical. Many alternate fittings can be used to
accommodate different hose sizes and
configurations.
The valves have a 3-pin weather pack
electrical connector. This has a power, ground,
and switched wire. The power measured to
ground should have 12 volts when the controller is
on. The switched wire will have 12 volts to turn
the valve on, and 0 volts to turn the valve off.
Wiring Connector:
Pin A—Red, 12 Volts +
Pin B—Black, Ground -
Pin C—White, Signal
12V=on ; 0V=off
Mounting Hardware:
2 Valve Bolt Kit
384-1100
Mounting Bracket
400-2493Y1
B
Components
Liquid
Note: Ensure back-side port is
capped prior to use

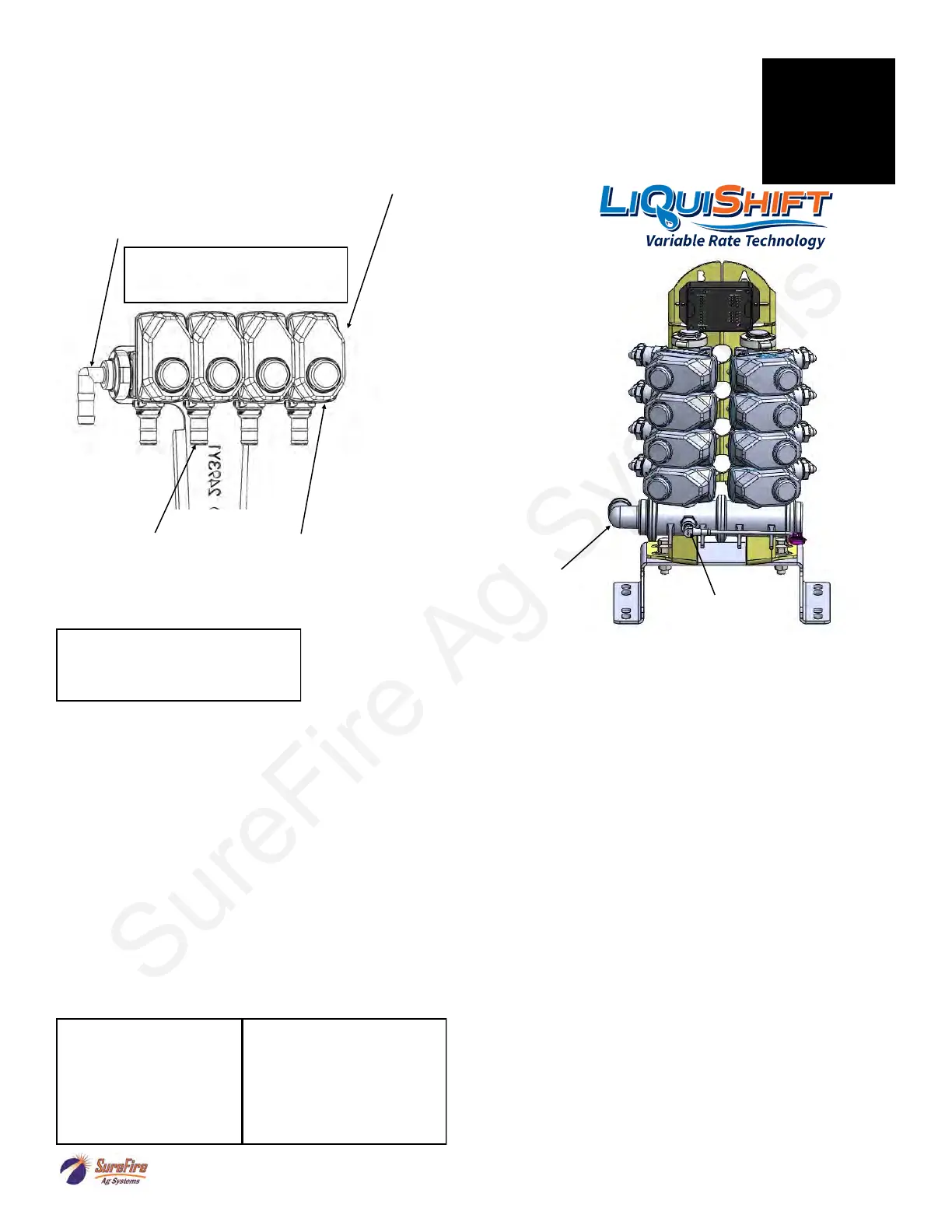

How LiquiShift Works
LiquiShift is a section valve manifold
specifically built and controlled to provide the
operator a very wide flow range for variable rate
application. It is valuable for variable rate
prescription application or variable rate between
different fields. Each section has an A and B
valve that are opened based on the section
status, current rate and system pressure.
Therefore, a 4– section LiquiShift (shown above)
will have 8 total valves.
The valves themselves are identical to a
regular section valve (KX TX2) and have a 3-pin
weather pack electrical connector.
LiquiShift systems are available with
systems from 1-8 sections.
On the RCM, LiquiShift systems connect
to the RCM Adapter Harness with a 14-pin round
connector. Typically this connector would be for
Sections 1-6 (product 1) or Sections 7-12 (product
2). Your system may vary so check the specific
instructions with our RCM adapter harness.
Liquid
inlet
Pressure Sensor
A4
A3
A2
A1
B4
B3
B2
B1
