Suzuki 125 - “44” (P0130;P0135) HO2 Sensor (HO2 S) Circuit Malfunction; Inspection

RV125K7 (’07-MODEL) 75

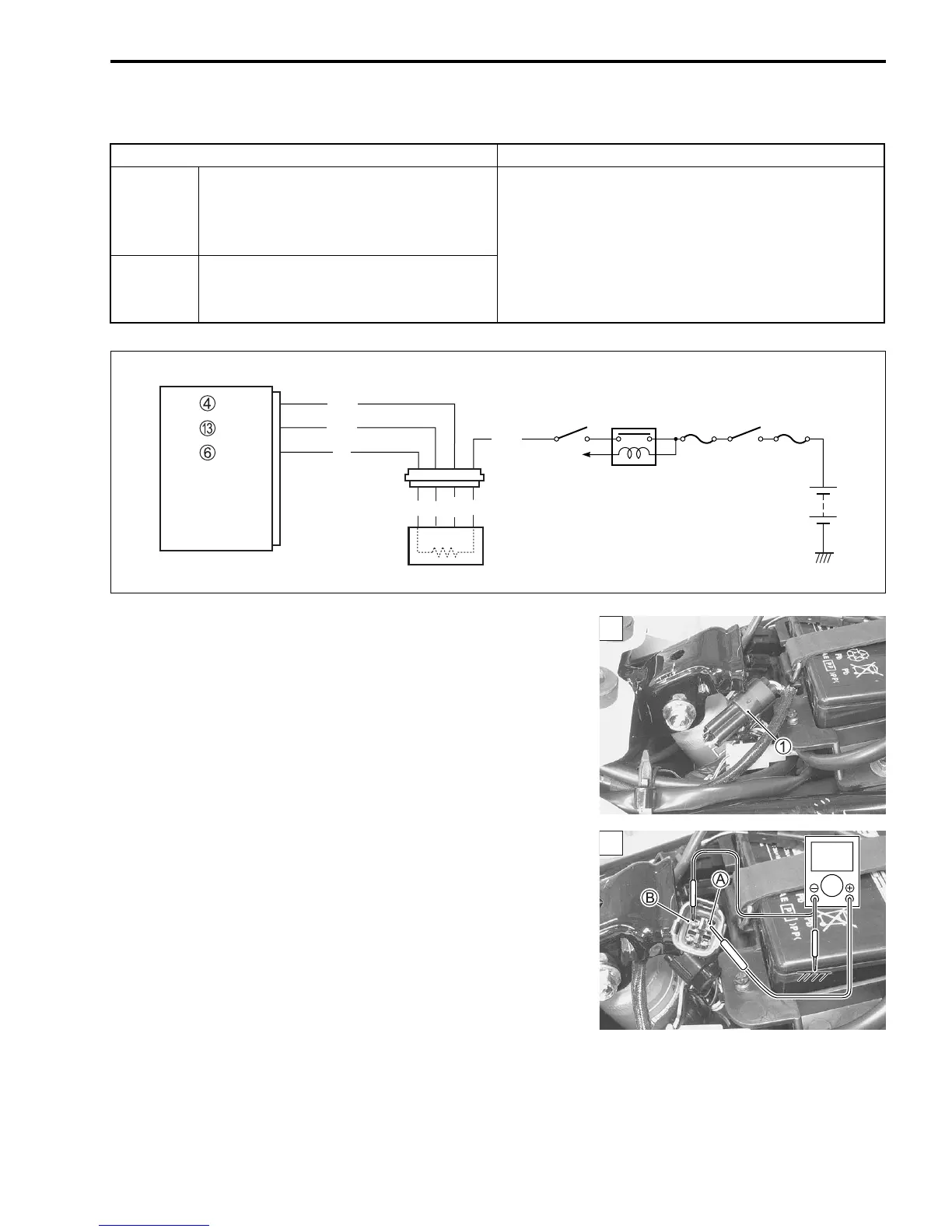

“44” (P0130/P0135) HO2 SENSOR (HO2S) CIRCUIT MALFUNCTION
INSPECTION
Step 1 (When indicating 44/P0130:)
1) Turn the ignition switch OFF.
2) Remove the seat.
3) Check the HO2 sensor coupler 1 for loose or poor contacts.
If OK, then check the HO2 sensor lead wire continuity.
4) Disconnect the HO2 sensor coupler.
5) Check the continuity between W/G wire A and ground.
6) Also, check the continuity between W/G wire A and B/Br wire
B. If the sound is not heard from the tester, the circuit condi-
tion is OK.
 09900-25008: Multi-circuit tester set
 Tester knob indication: Continuity test ()
DETECTED CONDITION POSSIBLE CAUSE
44
(P0130)
HO2 sensor output voltage is not input
to ECM during engine operation and
running condition.
(Sensor voltage < 0.60 V)
• HO2 sensor circuit open or shorted to ground.
• Fuel system malfunction.
• ECM malfunction.
44
(P0135)
The heater can not operate so that
heater operation voltage is not supply to
the oxygen heater circuit.
• Battery voltage supply to the HO2 sensor.
ECM
Side-stand
relay
Ignition
switch
Engine stop
switch
B/O
W
Gr
B
W
B/Br
W/G
W
HO2 sensor
HO2S
HO2. H
E2
To side-stand
switch
1
1
?
