44 RV125K7 (’07-MODEL)

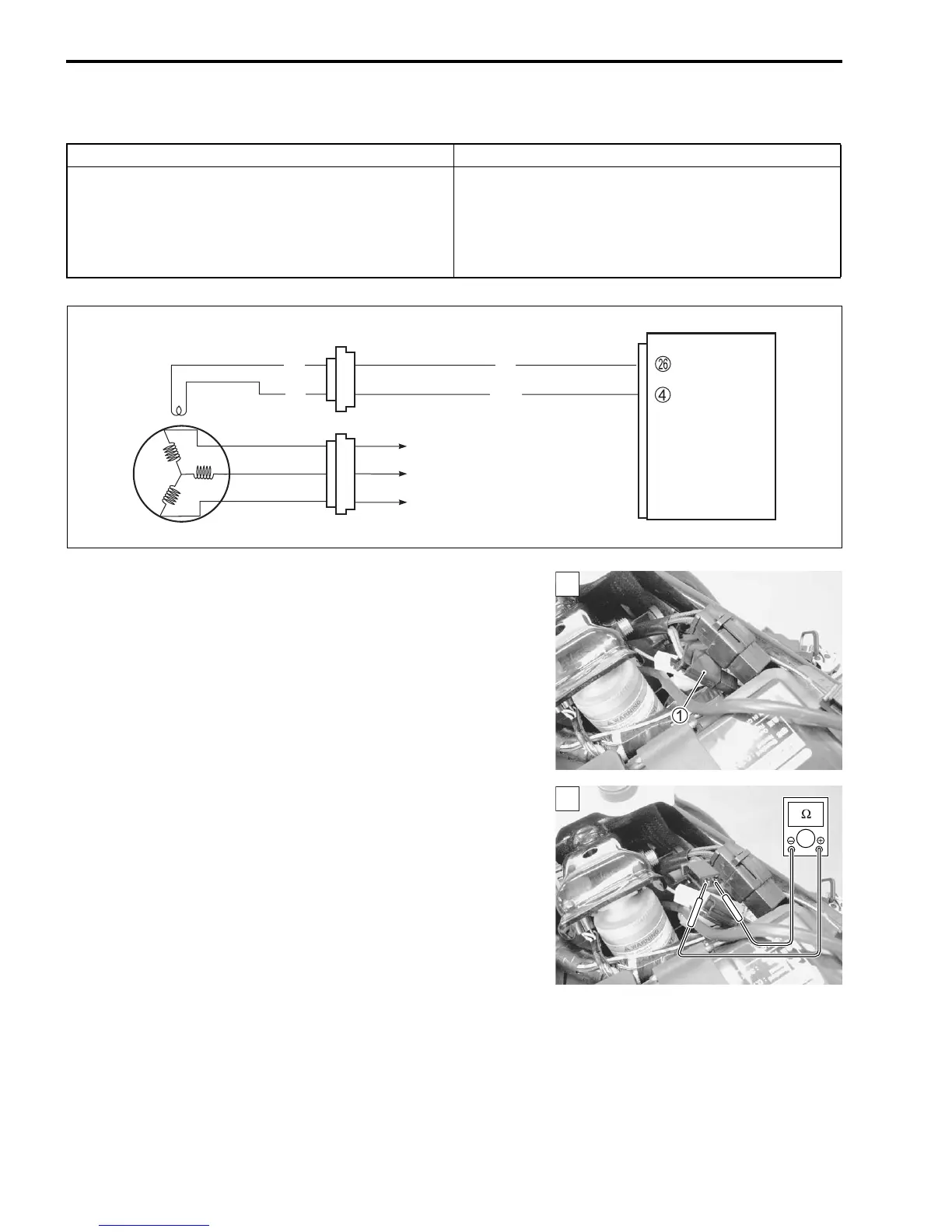

“12” (P0335) CKP SENSOR CIRCUIT MALFUNCTION
INSPECTION
Step 1
1) Turn the ignition switch OFF.
2) Remove the seat. (RV125K3 5-3)
3) Check the CKP sensor coupler 1 for loose or poor contacts.
If OK, then measure the CKP sensor resistance.
4) Disconnect the CKP sensor coupler and measure the resis-
tance.
CKP sensor resistance: 172 – 288 Ω (G – Bl)
DETECTED CONDITION POSSIBLE CAUSE
The CKP sensor signal does not reach ECM for 4
sec. or more, after receiving the IAP sensor signal.
• Metal particles or foreign material being stuck on
the CKP sensor and rotor tip
• CKP sensor circuit open or short
• CKP sensor malfunction
• ECM malfunction
Generator
ECM
CKP sensor
To regulator/rectifier
CKP
G
Bl
Bl
E2
B/Br
1
1
To Next Page
