Suzuki GSX-R1000 2007 Service Manual

3-54 ENGINE

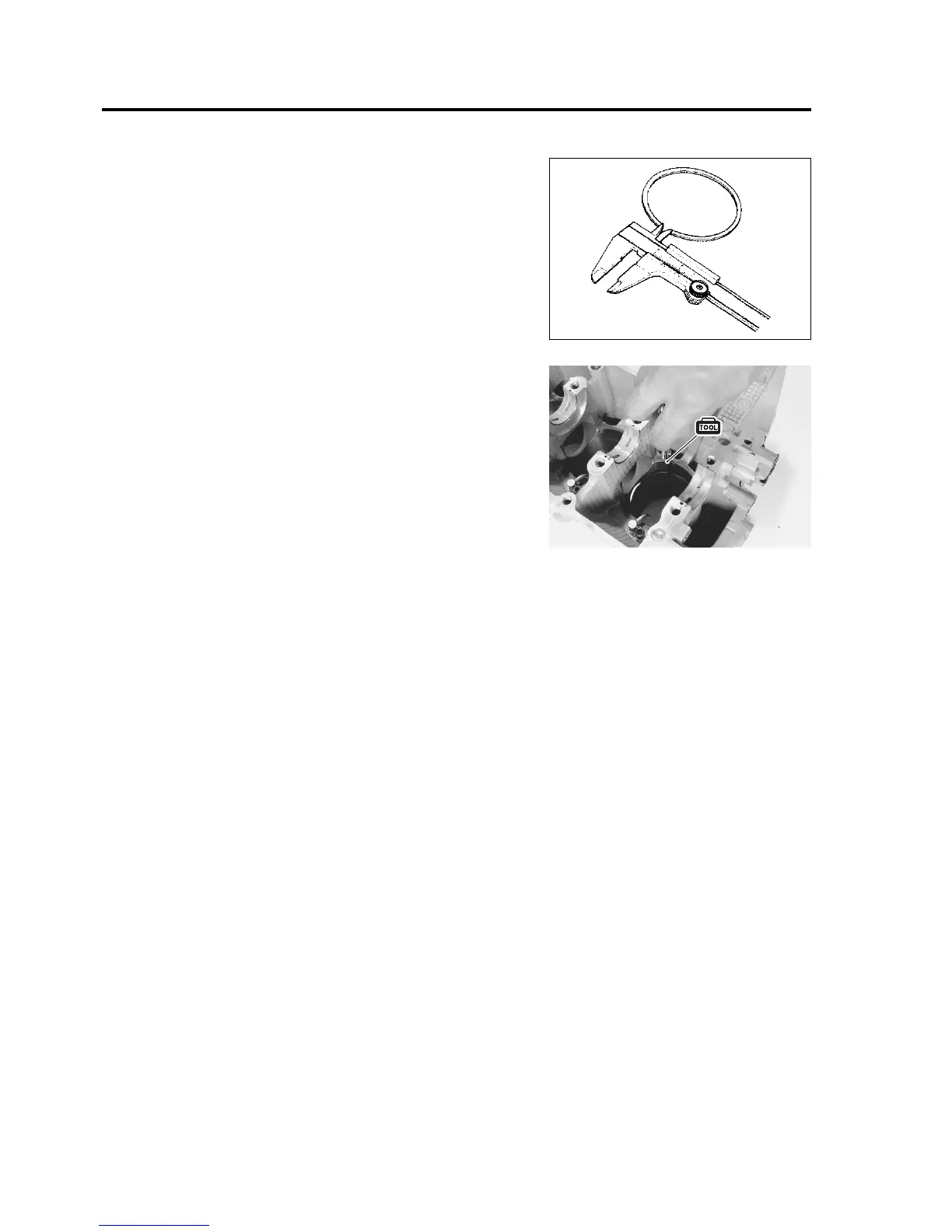

PISTON RING FREE END GAP AND PISTON RING END GAP
• Measure the piston ring free end gap using the vernier cali-
pers.
• Next, fit the piston ring squarely into the cylinder and measure
the piston ring end gap using the thickness gauge.
• If any of the measurements exceeds the service limit, replace
the piston ring with a new one.
 Piston ring free end gap:
Service Limit (1st) : 5.2 mm (0.20 in)
(2nd): 6.4 mm (0.25 in)
\ 09900-20102: Vernier calipers
 Piston ring end gap:
Service Limit (1st) : 0.50 mm (0.020 in)
(2nd): 0.50 mm (0.020 in)
\ 09900-20803: Thickness gauge

Suzuki GSX-R1000 2007 Specifications

General

Engine Type	4-stroke, 4-cylinder, liquid-cooled, DOHC
Displacement	999 cc
Bore x Stroke	73.4 mm x 59.0 mm
Compression Ratio	12.5:1
Fuel System	Fuel injection
Ignition	Electronic ignition (transistorized)
Transmission	6-speed constant mesh
Front Suspension	Inverted telescopic, coil spring, oil damped
Front Brakes	Dual hydraulic disc
Rear Brakes	Single hydraulic disc
Seat Height	810 mm
Lubrication System	Wet sump
Starter	Electric
Final Drive	Chain
Ground Clearance	130 mm
Rear Suspension	Link type, coil spring, oil damped
Front Tire	120/70ZR17M/C (58W)
Rear Tire	190/50ZR17M/C (73W)
Overall Length	2045 mm (80.5 in)
Overall Height	1, 130 mm
Overall Width	720 mm (28.3 in)
Wheelbase	1, 405 mm
Curb Weight	203kg
