Suzuki GSX-R1000 2007 Service Manual

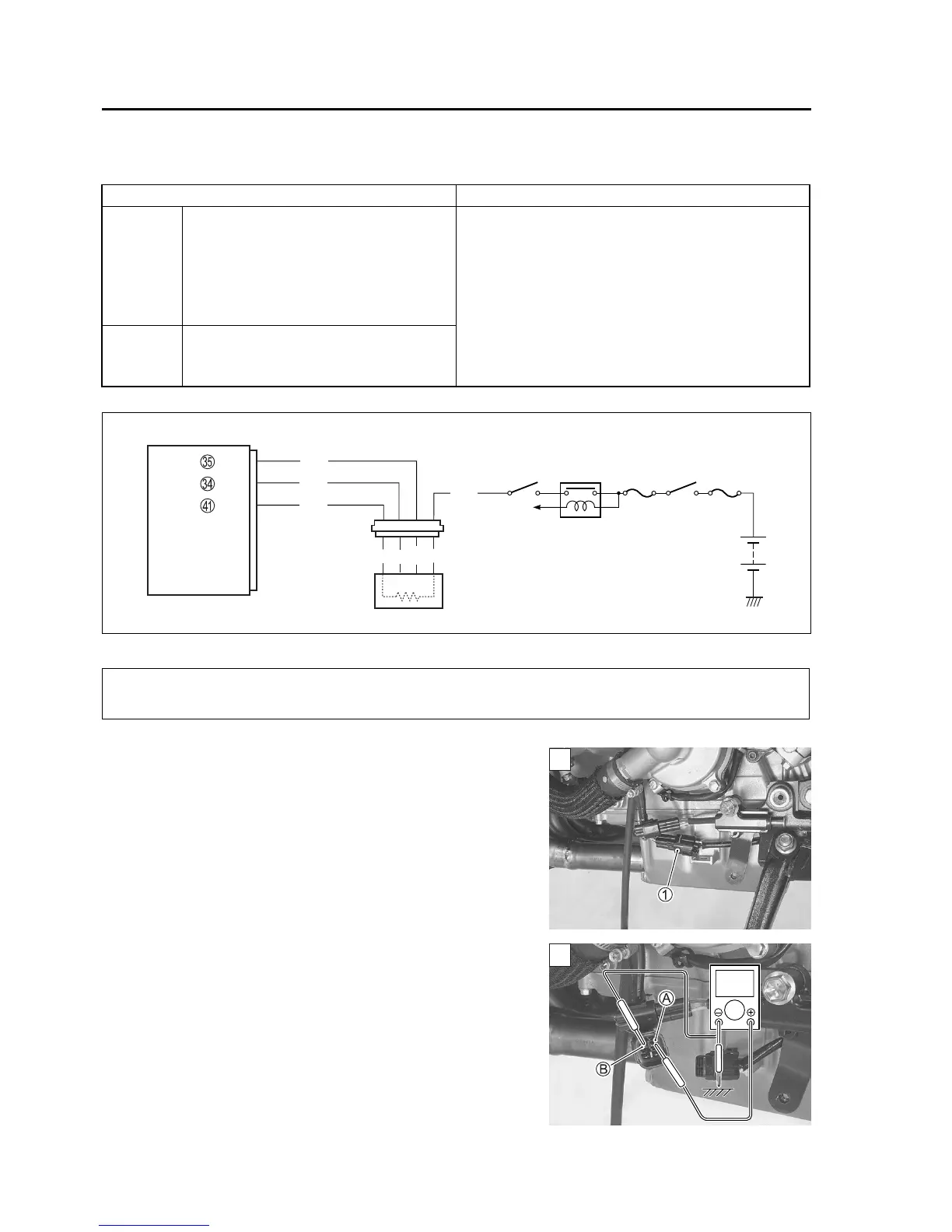

4-88 FI SYSTEM DIAGNOSIS
“C44” (P0130/P0135) HO2 SENSOR (HO2S) CIRCUIT MALFUNCTION

INSPECTION
Step 1 (When indicating C44/P0130:)
1) Turn the ignition switch OFF.
2) Remove the left under cowling. (8-5)
3) Check the HO2 sensor coupler  for loose or poor contacts.
If OK, then check the HO2 sensor lead wire continuity.
4) Disconnect the HO2 sensor coupler.
5) Check the continuity between W/G wire  and ground.
6) Also, check the continuity between W/G wire  and B/Br wire
. If the sound is not heard from the tester, the circuit condi-
tion is OK.
\ 09900-25008: Multi-circuit tester set
= Tester knob indication: Continuity test (?)
DETECTED CONDITION POSSIBLE CAUSE
C44
(P0130)
HO2 sensor output voltage is not input
to ECM during engine operation and
running condition.
(Sensor voltage < 1.0 V)
In other than the above value, C44
(P0130) is indicated.
• HO2 sensor circuit open
C44
(P0135)
The heater can not operate so that
heater operation voltage is not supplied
to the oxygen heater circuit.
• HO2 sensor lead wire/coupler connection
• Battery voltage supply to the HO2 sensor.
ECM
Side-stand
relay
Ignition
switch
Engine stop
switch
O/W
W
Gr
B
W
B/Br
W/G
W/B
HO2 sensor
OX
OXH
E2
To GP
switch
When using the multi-circuit tester, do not strongly touch the terminal of the ECM coupler with
a needle pointed tester probe to prevent the terminal damage or terminal bend.
1
1
?

Suzuki GSX-R1000 2007 Specifications

General

Engine Type	4-stroke, 4-cylinder, liquid-cooled, DOHC
Displacement	999 cc
Bore x Stroke	73.4 mm x 59.0 mm
Compression Ratio	12.5:1
Fuel System	Fuel injection
Ignition	Electronic ignition (transistorized)
Transmission	6-speed constant mesh
Front Suspension	Inverted telescopic, coil spring, oil damped
Front Brakes	Dual hydraulic disc
Rear Brakes	Single hydraulic disc
Seat Height	810 mm
Lubrication System	Wet sump
Starter	Electric
Final Drive	Chain
Ground Clearance	130 mm
Rear Suspension	Link type, coil spring, oil damped
Front Tire	120/70ZR17M/C (58W)
Rear Tire	190/50ZR17M/C (73W)
Overall Length	2045 mm (80.5 in)
Overall Height	1, 130 mm
Overall Width	720 mm (28.3 in)
Wheelbase	1, 405 mm
Curb Weight	203kg
