Suzuki GSX-R1000 2007 Service Manual

FUEL SYSTEM AND THROTTLE BODY 5-3
FUEL SYSTEM

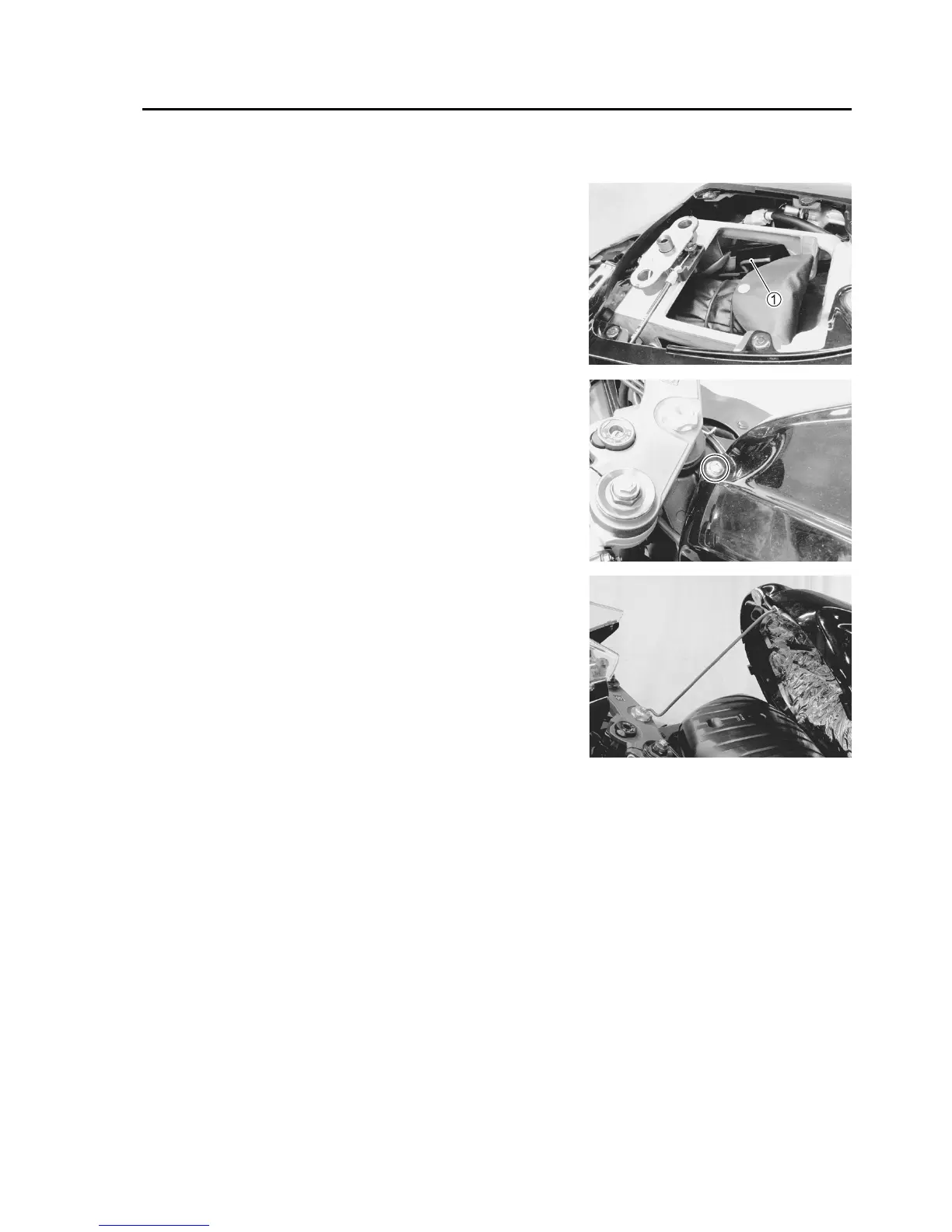

FUEL TANK LIFT-UP
• Remove the seats. (8-8 and -9)
• Remove the fuel tank side covers. (8-8)
• Take out the fuel tank prop stay .
• Remove the fuel tank bolt.
• Lift and support the fuel tank with the fuel tank prop stay.

Suzuki GSX-R1000 2007 Specifications

General

Engine Type	4-stroke, 4-cylinder, liquid-cooled, DOHC
Displacement	999 cc
Bore x Stroke	73.4 mm x 59.0 mm
Compression Ratio	12.5:1
Fuel System	Fuel injection
Ignition	Electronic ignition (transistorized)
Transmission	6-speed constant mesh
Front Suspension	Inverted telescopic, coil spring, oil damped
Front Brakes	Dual hydraulic disc
Rear Brakes	Single hydraulic disc
Seat Height	810 mm
Lubrication System	Wet sump
Starter	Electric
Final Drive	Chain
Ground Clearance	130 mm
Rear Suspension	Link type, coil spring, oil damped
Front Tire	120/70ZR17M/C (58W)
Rear Tire	190/50ZR17M/C (73W)
Overall Length	2045 mm (80.5 in)
Overall Height	1, 130 mm
Overall Width	720 mm (28.3 in)
Wheelbase	1, 405 mm
Curb Weight	203kg
