ENGINE GENERAL INFORMATION AND DIAGNOSIS (SFI FOR G13) 6-1-79
1) 2) 3)
4)
5) 6)
7)
Engine speed
4000 r/min
0
Vehicle speed
0
50 – 55 mph
80 – 88 km/h
(Keep throttle
valve opening
constantly)

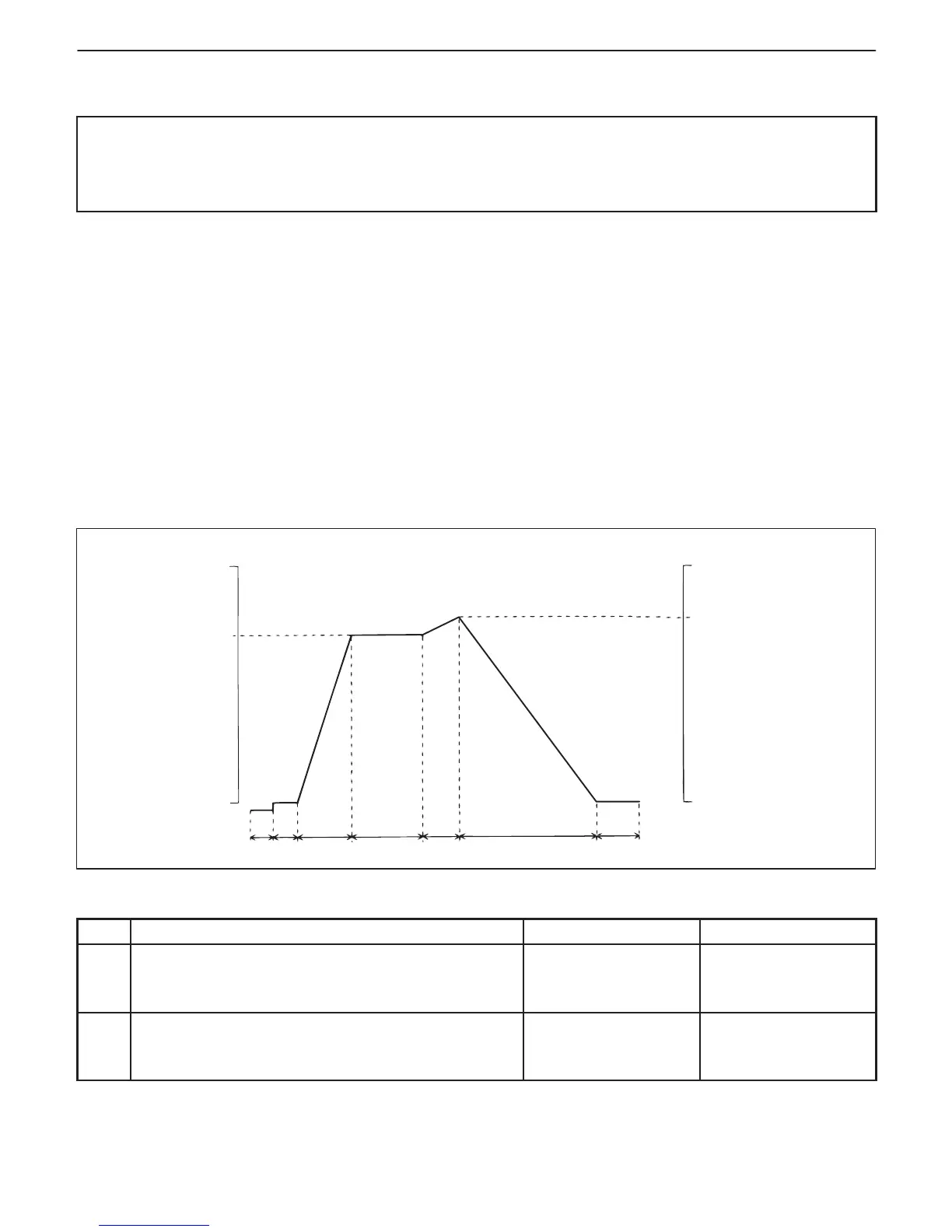

DTC CONFIRMATION PROCEDURE
WARNING:
D When performing a road test, select a place where there is no traffic or possibility of a traffic accident
and be very careful during testing to avoid occurrence of an accident.
D Road test should be carried out with 2 persons, a driver and a tester, on a level road.
1) Turn ignition switch OFF.
Clear DTC with ignition switch ON, check vehicle and environmental condition for:
– Altitude (barometric pressure): 2400 m, 8000 ft or less (560 mmHg, 75 kPa or more)
– Intake air temp.: between –10_C and 80_C (14_F and 158_F)
2) Start engine and warm it up to normal operating temperature (70 – 110_C, 158 – 230_F) and run it at idle for
5 min.
3) Increase vehicle speed to 50 – 55 mph, 80 – 88 km/h in 5th gear or in “D” range.
4) Hold throttle valve at that opening position for 2 min. or longer.
5) Increase engine speed to 4000 r/min. in 3rd gear or in “2” range.
6) Release accelerator pedal and with engine brake applied, keep vehicle coasting (fuel cut condition) till engine
speed reaches 1500 r/min.
7) Stop vehicle (don’t turn ignition switch OFF) and confirm test results according to following “Test Result Con-
firmation Flow Table.”
Test Result Confirmation Flow Table
STEP ACTION YES NO
1 Check DTC in “DTC” mode and pending DTC in “ON
BOARD TEST”.
Is DTC or pending DTC displayed?
Proceed to applicable
DTC flow table.
Go to Step 2.
2 Set scan tool to “READINESS TESTS” mode and
check if testing has been completed.
Is test completed?
No DTC is detected.
(Confirmation test is
completed)
Repeat DTC
confirmation
procedure.
To Next Page
