PERIODIC MAINTENANCE AND TUNE-UP PROCEDURES 2-2

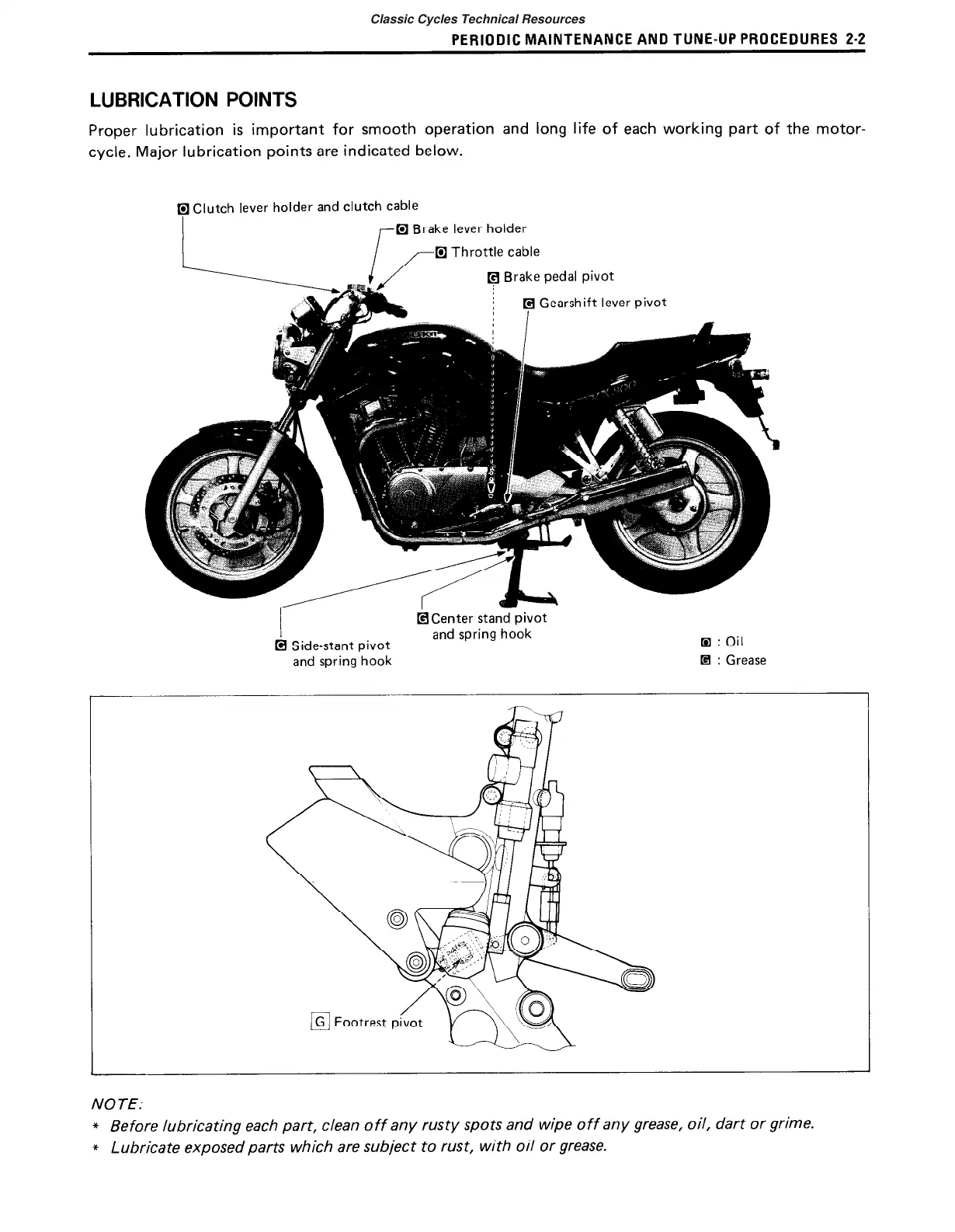

LUBRICATION POINTS
Proper lubrication is important for smooth operation and long life of each working part of the motor-
cycle. Major lubrication points are indicated below.
q
Clutch lever holder and clutch cable
I
ElCenter stand pivot
I
El Side-stant pivot
and spring hook
and spring hook
q :
Oil
ra
q
Footrest
phot
NOTE:
*
Before lubricating each part, clean off any rusty spots and wipe off any grease, oil, dart or grime.
*
Lubricate exposed parts which are subject to rust, with oil or grease.
