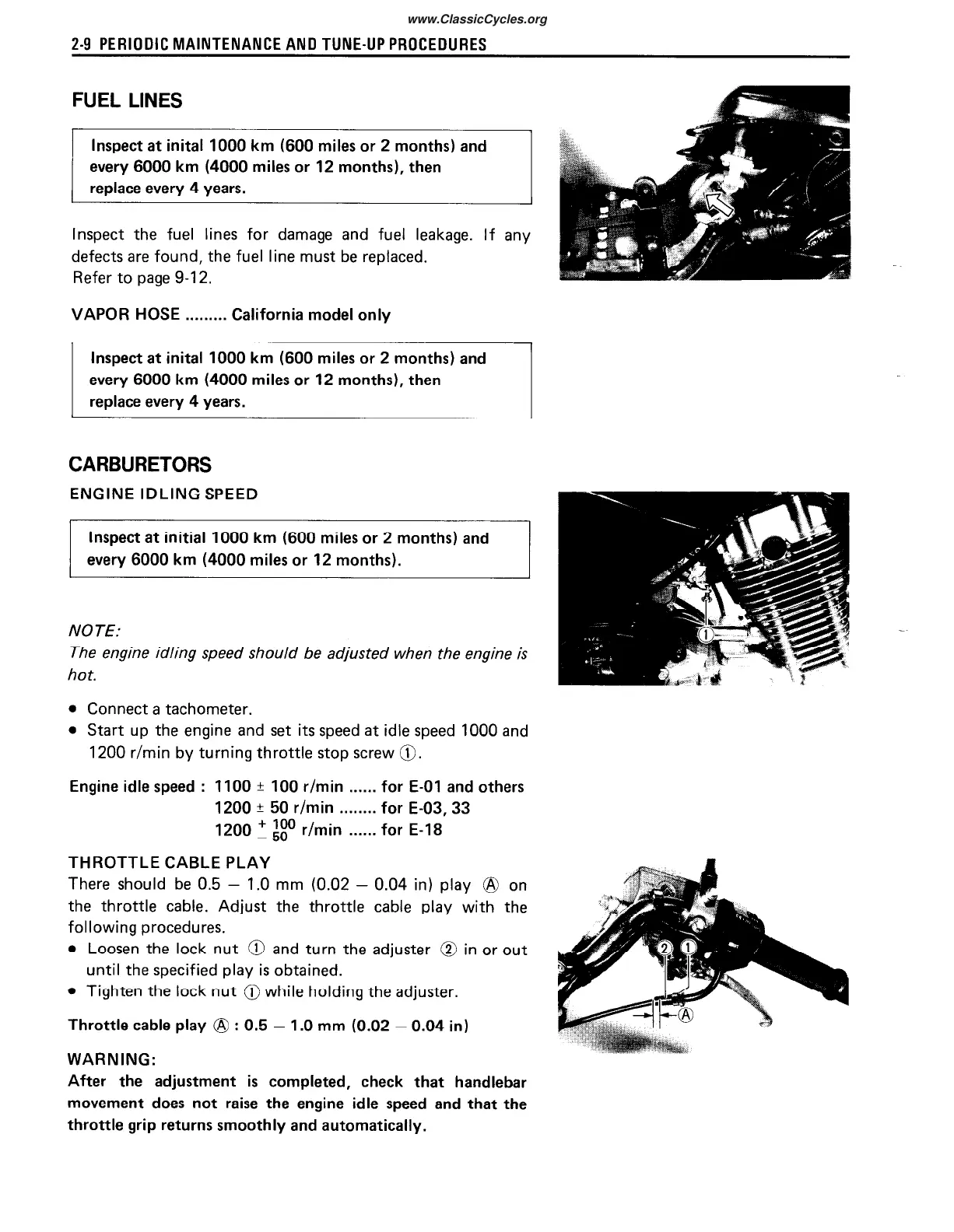

2-9 PERIODIC MAINTENANCE AND TUNE-UP PROCEDURES
FUEL LINES
Inspect at inital 1000 km (600 miles or 2 months) and
every 6000 km (4000 miles or 12 months), then
replace every 4 years.
Inspect the fuel lines for damage and fuel leakage. If any
defects are found, the fuel line must be replaced.
Refer to page 9-l 2.
VAPOR HOSE . . . . . . . . . California model only
Inspect at inital 1000 km (600 miles or 2 months) and
every 6000 km (4000 miles or 12 months), then
replace every 4 years.
CARBURETORS
ENGINE IDLING SPEED
Inspect at initial 1000 km (600 miles or 2 months) and
every 6000 km (4000 miles or 12 months).
NOTE:
The engine idling speed should be adjusted when the engine is
hot.
l
Connect a tachometer.
l
Start up the engine and set its speed at idle speed 1000 and
1200 r/min by turning throttle stop screw 0.
Engine idle speed : 1100 ? 100 r/min . . . . . . for E-01 and others
1200 * 50 r/min . . . . . . . . for E-03, 33
1200 + $O r/min
. . . . . . for E-18
THROTTLE CABLE PLAY
There should be 0.5 - 1.0 mm (0.02 - 0.04 in) play @ on
the throttle cable. Adjust the throttle cable play with the
following procedures.
l
Loosen the lock nut @ and turn the adjuster @ in or out
until the specified play is obtained.
l
Tighten the lock nut @while holding the adjuster.
Throttle cable play @
:
0.5 - 1 .O mm (0.02 - 0.04 in)
WARNING:
After the adjustment is completed, check that handlebar
movement does not raise the engine idle speed and that the
throttle grip returns smoothly and automatically.
