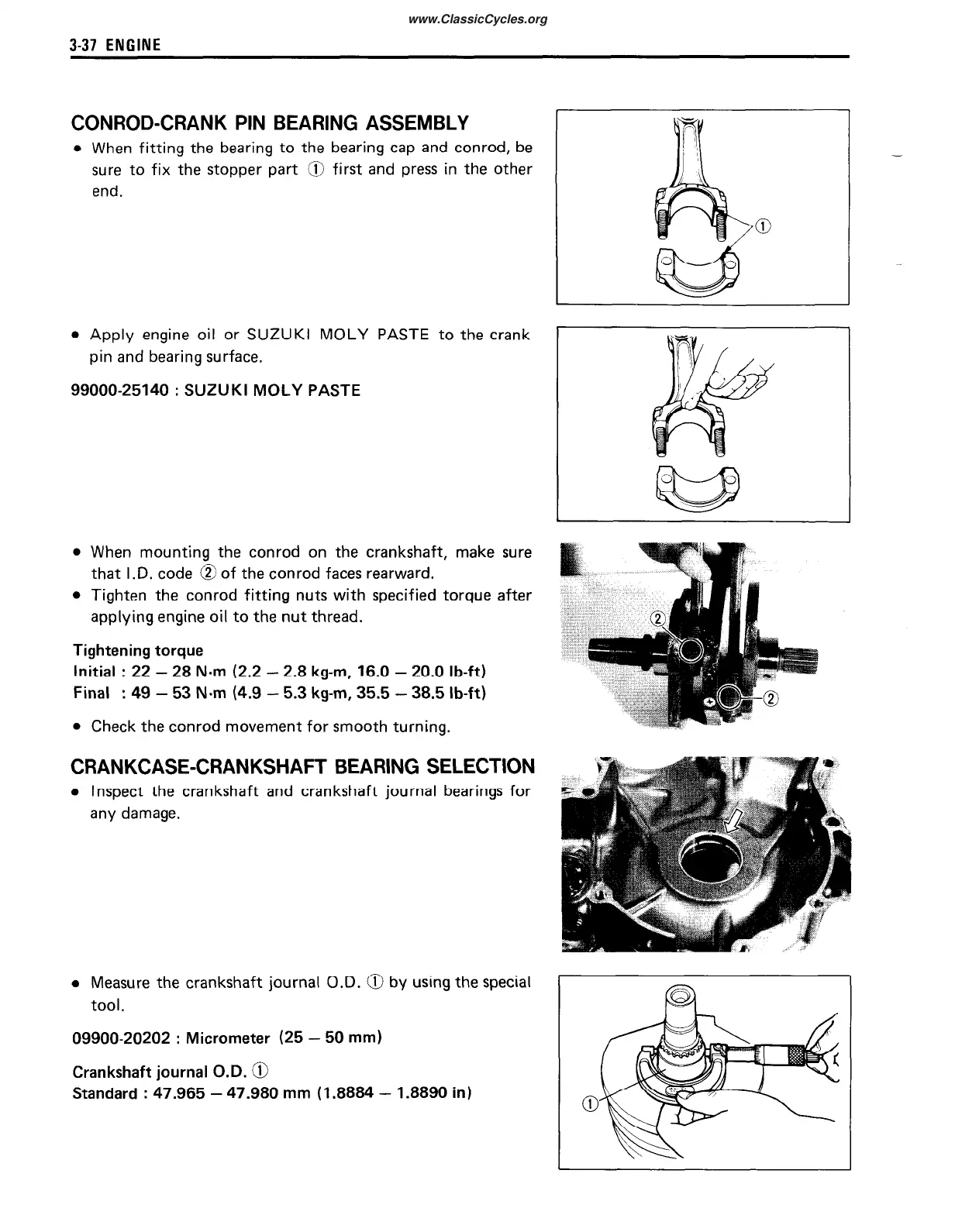

CONROD-CRANK PIN BEARING ASSEMBLY
l
When fitting the bearing to the bearing cap and conrod, be
sure to fix the stopper part @ first and press in the other
end.
l
Apply engine oil or SUZUKI MOLY PASTE to the crank
pin and bearing surface.
99000-25140 : SUZUKI MOLY PASTE
l
When mounting the conrod on the crankshaft, make sure
that
I.D.
code @ of the conrod faces rearward.
l
Tighten the conrod fitting nuts with specified torque after
applying engine oil to the nut thread.
Tightening torque
Initial
:
22 - 28 N-m (2.2 - 2.8 kg-m, 16.0 - 20.0 lb-ft)
Final : 49 - 53 N.m (4.9 - 5.3 kg-m, 35.5 - 38.5 lb-ft)
l
Check the conrod movement for smooth turning.
CRANKCASE-CRANKSHAFT BEARING SELECTION
l
Inspect the crankshaft and crankshaft journal bearings for
any damage.
l
Measure the crankshaft journal O.D. @ by using the special
tool.
09900-20202
:
Micrometer
(25 - 50
mm)
Crankshaft journal O.D. @
Standard : 47.965 - 47.980 mm (1.8884 - 1.8890 in)
I
