Suzuki VX800L - Piston Ring

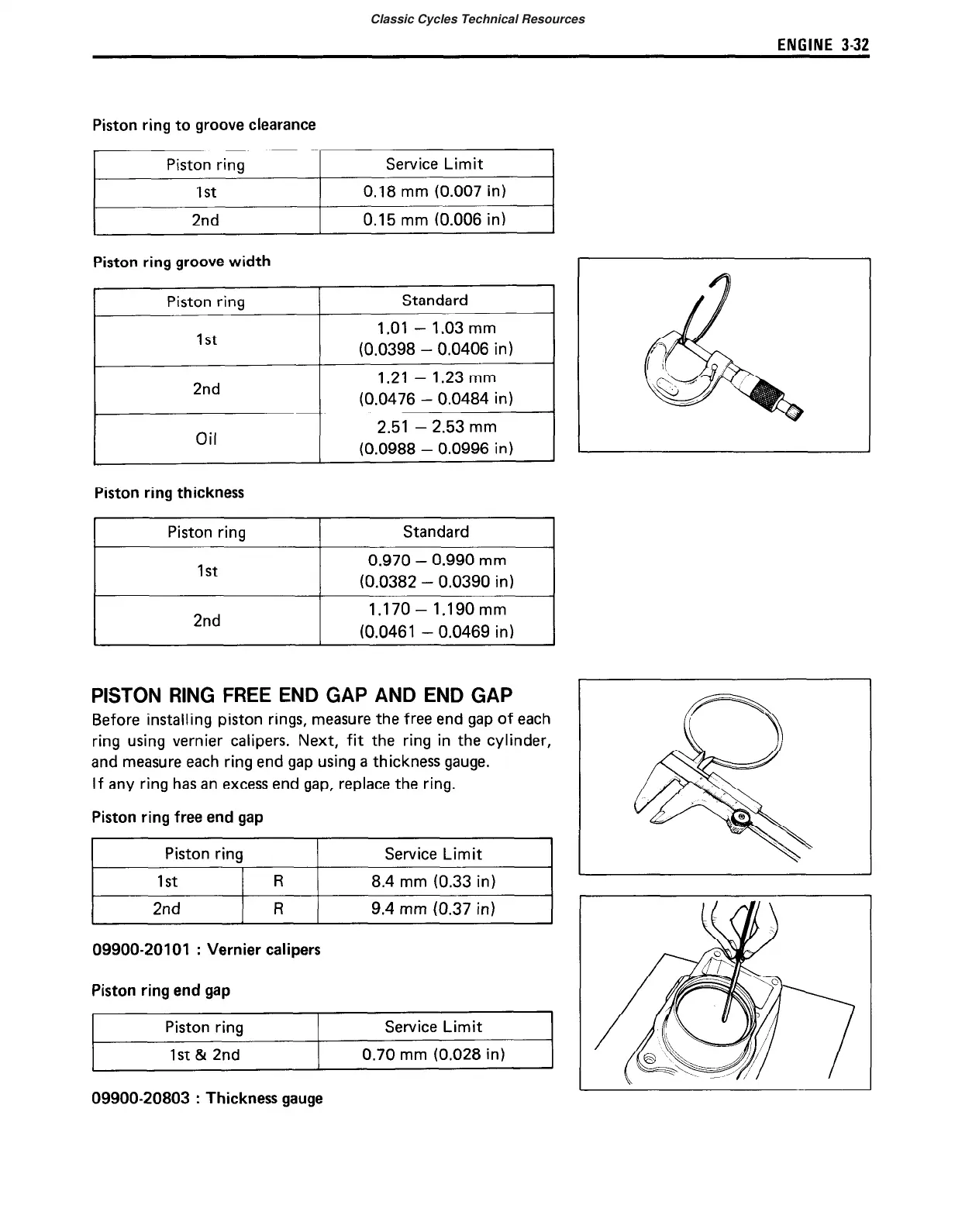

ENGINE 3-32
Piston ring to groove clearance
[
Piston ring
Service Limit
1
1st
0.18 mm (0.007 in)
2nd
0.15 mm (0.006 in)
Piston ring groove width
Piston ring
1 st
Standard
1.01 - 1.03 mm
(0.0398 - 0.0406 in)
2nd
1.21 - 1.23 mm
(0.0476 - 0.0484 in)
Oil
2.51 - 2.53 mm
(0.0988 - 0.0996 in)
Piston ring thickness
Piston ring
Standard
1st
0.970 - 0.990 mm
(0.0382 - 0.0390 in)
1
2nd
1.170 - 1.190 mm
(0.0461 - 0.0469 in)
PISTON RING FREE END GAP AND END GAP
Before installing piston rings, measure the free end gap of each
ring using vernier calipers. Next, fit the ring in the cylinder,
and measure each ring end gap using a thickness gauge.
If any ring has an excess end gap, replace the ring.
Piston ring free end gap
Piston ring
Service Limit
1 st
R
8.4 mm (0.33 in)
2nd
R
9.4 mm (0.37 in)
09900-20101 : Vernier calipers
Piston ring end gap
Piston ring
1st & 2nd
09900-20803 : Thickness gauge
Service Limit
0.70 mm (0.028 in)
