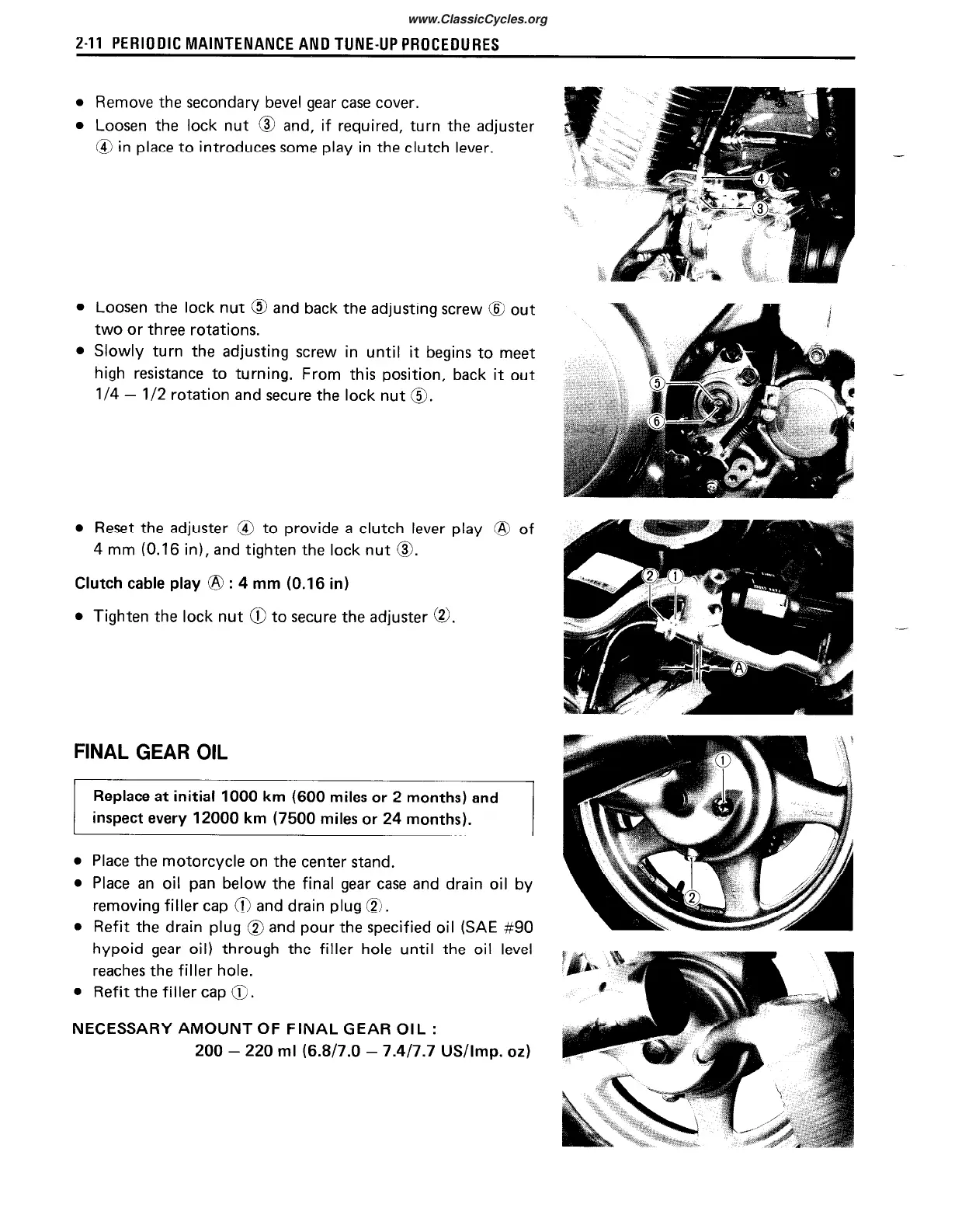

2-11 PERIODIC MAINTENANCE AND TUNE-UP PROCEDURES
Remove the secondary bevel gear case cover.
Loosen the lock nut @ and, if required, turn the adjuster
@ in place to introduces some play in the clutch lever.
Loosen the lock nut @ and back the adjusting screw @ out
two or three rotations.
Slowly turn the adjusting screw in until it begins to meet
high resistance to turning. From this position, back it out
l/4 - l/2 rotation and secure the lock nut 0.
Reset the adjuster @ to provide a clutch lever play 8 of
4 mm (0.16 in), and tighten the lock nut @.
Clutch cable play @
:
4 mm (0.16 in)
l
Tighten the lock nut @ to secure the adjuster 0.
FINAL GEAR OIL
Replace at initial 1000 km (600 miles or 2 months) and
inspect every 12000 km (7500 miles or 24 months).
Place the motorcycle on the center stand.
Place an oil pan below the final gear case and drain oil by
removing filler cap 0 and drain plug 0.
Refit the drain plug @ and pour the specified oil (SAE #90
hypoid gear oil) through
reaches the filler hole.
Refit the filler cap 0.
NECESSARY AMOUNT OF
the filler hole until the oil level
FINAL GEAR OIL
:
200 - 220 ml (6.8/7.0 - 7.4/7.7 US/Imp. oz)
-
-
-
