Suzuki VX800L - Engine Disassembly

ENGINE 3-6

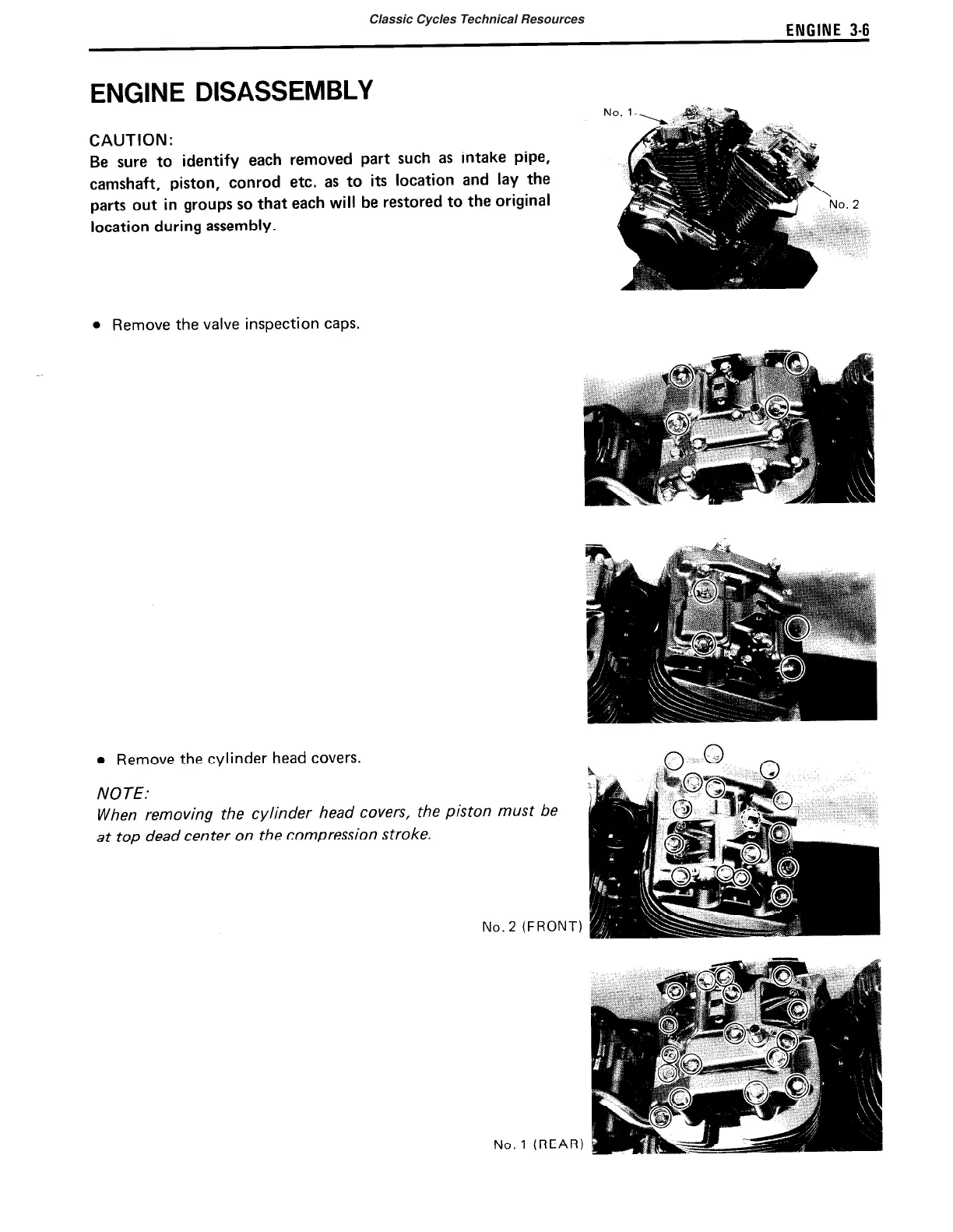

ENGINE DISASSEMBLY
CAUTION:
Be sure to identify each removed part such as intake pipe,
camshaft, piston, conrod etc. as to its location and lay the
parts out in groups so that each will be restored to the original
location during assembly.
l Remove the valve inspection caps.
l Remove the cylinder head covers.
NOTE:
When removing the cylinder head covers, the piston must be
at top dead center on the compression stroke.
No. 2 (FRONT)
No. 1 (REAR)
