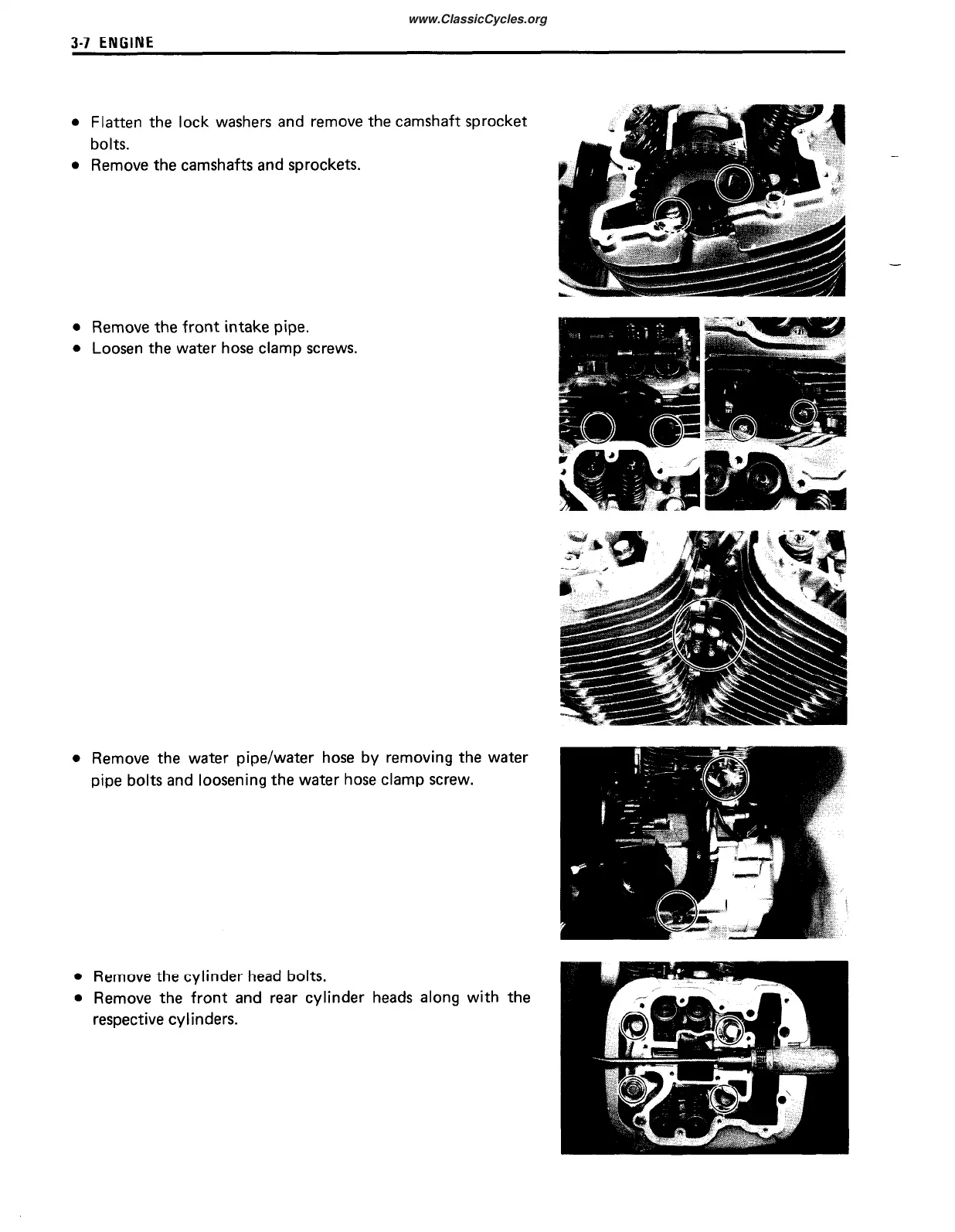

Suzuki VX800L - Page 40

l Remove the front intake pipe.
l Loosen the water hose clamp screws.
l Flatten the lock washers and remove the camshaft sprocket
bolts.
l Remove the camshafts and sprockets.
l Remove the water pipe/water hose by removing the water
pipe bolts and loosening the water hose clamp screw.
l Remove the cylinder head bolts.
l Remove the front and rear cylinder heads along with the
respective cylinders.
