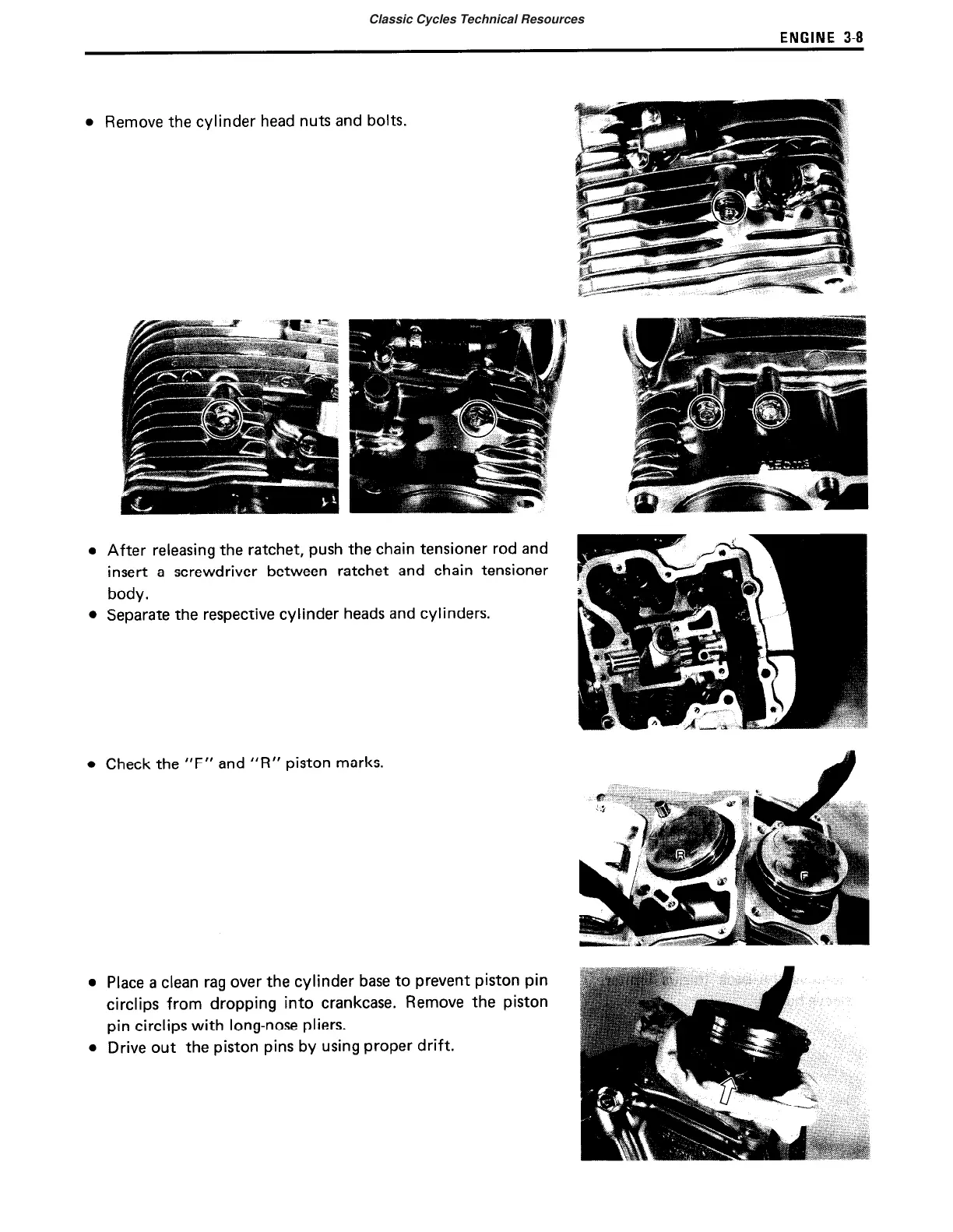

ENGINE 3-8
Remove the cylinder head nuts and bolts.
After releasing the ratchet, push the chain tensioner rod and
insert a screwdriver between ratchet and chain tensioner
body.
Separate the respective cylinder heads and cylinders.
l
Check the “F” and “R” piston marks.
Place a clean rag over the cylinder base to prevent piston pin
circlips from dropping into crankcase. Remove the piston
pin circlips with long-nose pliers.
Drive out the piston pins by using proper drift.
