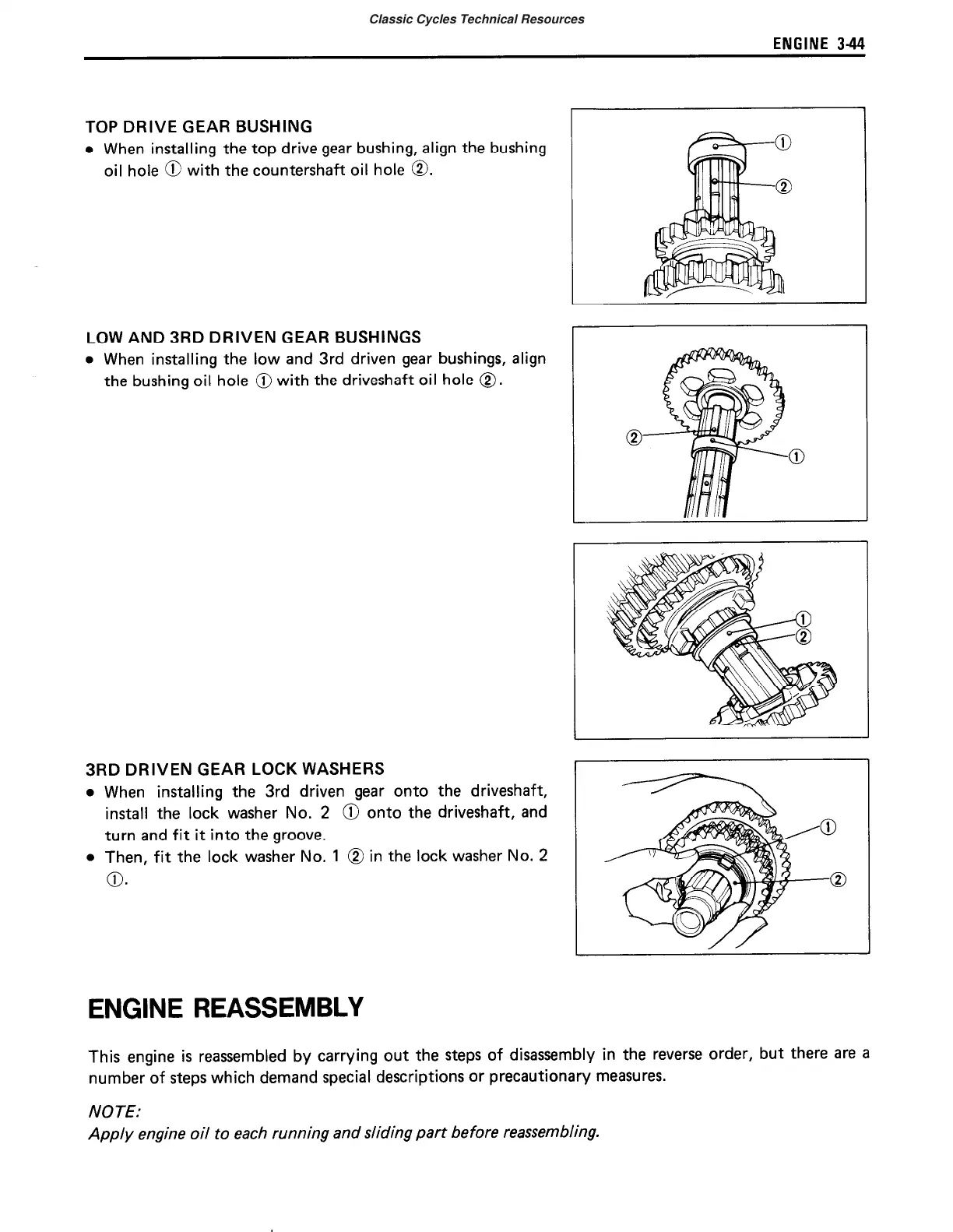

ENGINE 3-44
TOP DRIVE GEAR BUSHING
l
When installing the top drive gear bushing, align the bushing
oil hole @ with the countershaft oil hole 0.
LOW AND 3RD DRIVEN GEAR BUSHINGS
l
When installing the
low and 3rd driven gear bushings, align
the bushing oil hole
@ with the driveshaft oil hole 0.
3RD DRIVEN GEAR LOCK WASHERS
l
When installing the 3rd driven gear onto the driveshaft,
install the lock washer No. 2 @I onto the driveshaft, and
turn and fit it into the groove.
l
Then, fit the lock washer No. 1 @ in the lock washer No. 2
0.
ENGINE REASSEMBLY
This engine is reassembled by carrying out the steps of disassembly in the reverse order, but there are a
number of steps which demand special descriptions or precautionary measures.
NOTE:
Apply engine oil to each running and sliding part before reassembling.
