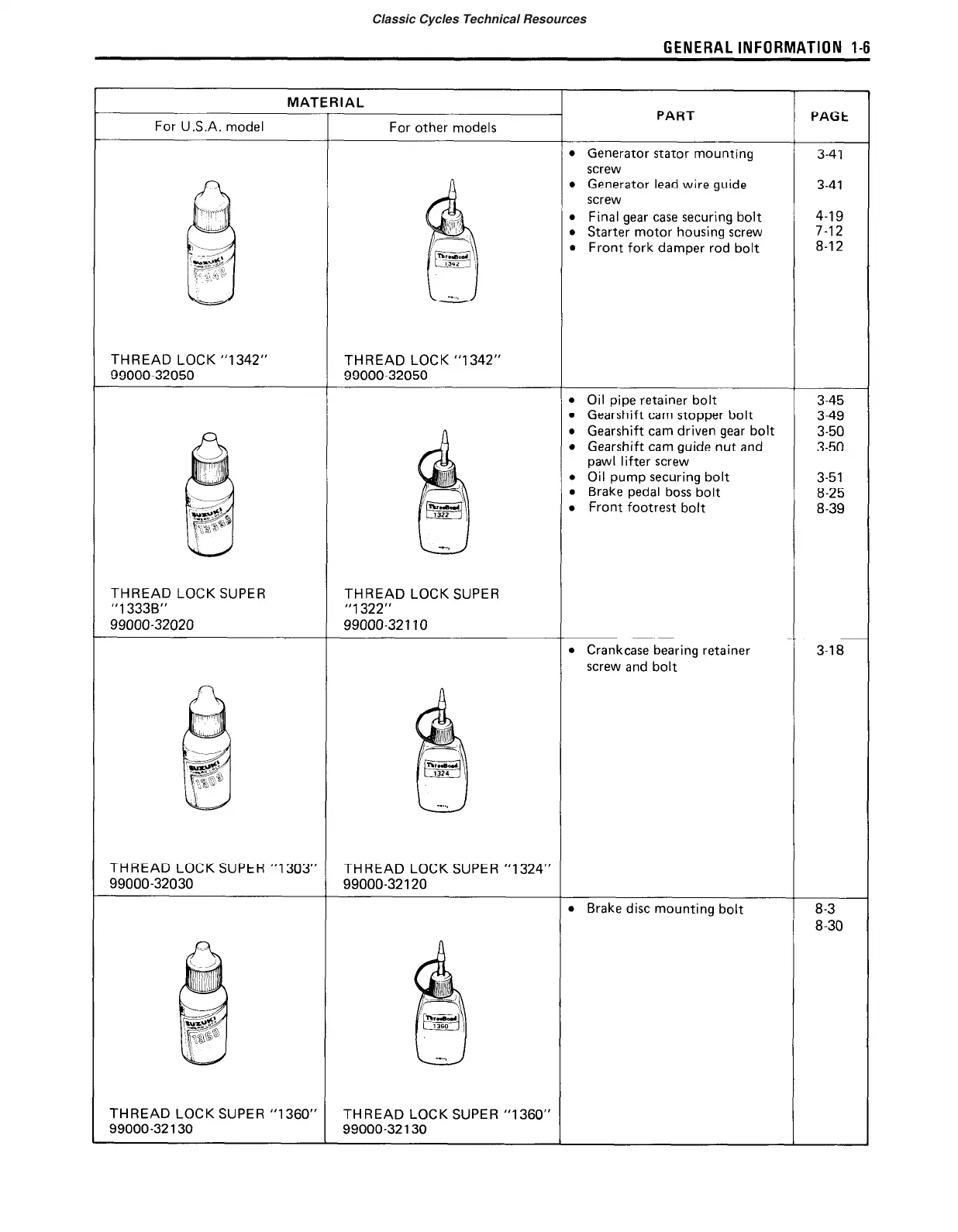

GENERAL INFORMATION 1-6
MATERIAL
For U.S.A. model
PART
PAGE
For other models
l Generator stator mounting
3-41
screw
l Generator lead wire guide
3-41
screw
l Final gear case securing bolt
4-19
l Starter motor housing screw
7-12
l Front fork damper rod bolt
8-12
THREAD LOCK “1342”
99000-32050
THREAD LOCK “1342”
99000-32050
l Oil pipe retainer bolt
l Gearshift cam stopper bolt
l Gearshift cam driven gear bolt
l Gearshift cam guide nut and
paw1 lifter screw
l Oil pump securing bolt
l Brake pedal boss bolt
l Front footrest bolt
3-45
3-49
3-50
3-50
3-51
8-25
8-39
THREAD LOCK SUPER
THREAD LOCK SUPER
“1333B”
“1 322”
99000-32020 99000-32 110
l Crankcase bearing retainer
screw and bolt
3-18
THREAD LOCK SUPER “1303”
THREAD LOCK SUPER “1324”
99000-32030
99000-32120
l Brake disc mounting bolt
8-3
8-30
THREAD LOCK SUPER “1360”
THREAD LOCK SUPER “1360”
99000-32 130
99000-32 130
