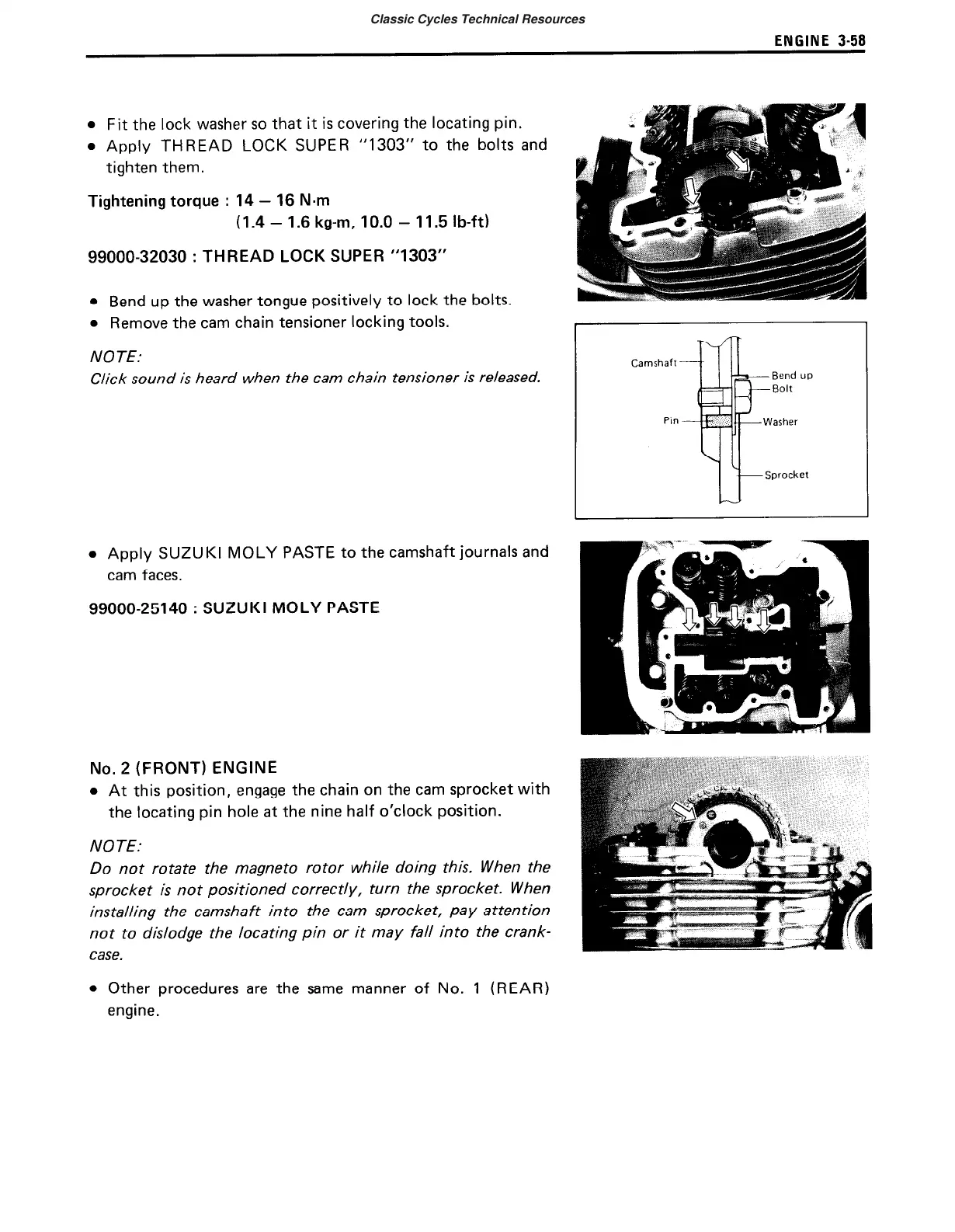

ENGINE 3-58
l
Fit the lock washer so that it is covering the locating pin.
l Apply THREAD LOCK SUPER “1303” to the bolts and
tighten them.
Tightening torque : 14 - 16 N-m
(1.4 - 1.6 kg-m, 10.0 - 11.5 lb-ft)
99000-32030 : THREAD LOCK SUPER “1303”
l Bend up the washer tongue positively to lock the bolts.
l Remove the cam chain tensioner locking tools.
NOTE:
Click sound is heard when the cam chain tensioner is released.
l Apply SUZUKI MOLY PASTE to the camshaft journals and
cam faces.
99000-25140 : SUZUKI MOLY PASTE
No. 2 (FRONT) ENGINE
l At this position, engage the chain on the cam sprocket with
the locating pin hole at the nine half o’clock position.
NOTE:
Do not rotate the magneto rotor while doing this. When the
sprocket is not positioned correctly, turn the sprocket. When
installing the camshaft into the cam sprocket, pay attention
not to dislodge the locating pin or it may fall into the crank-
case.
l Other procedures are the same manner of No. 1 (REAR)
engine.
Camshaft -
Pin
