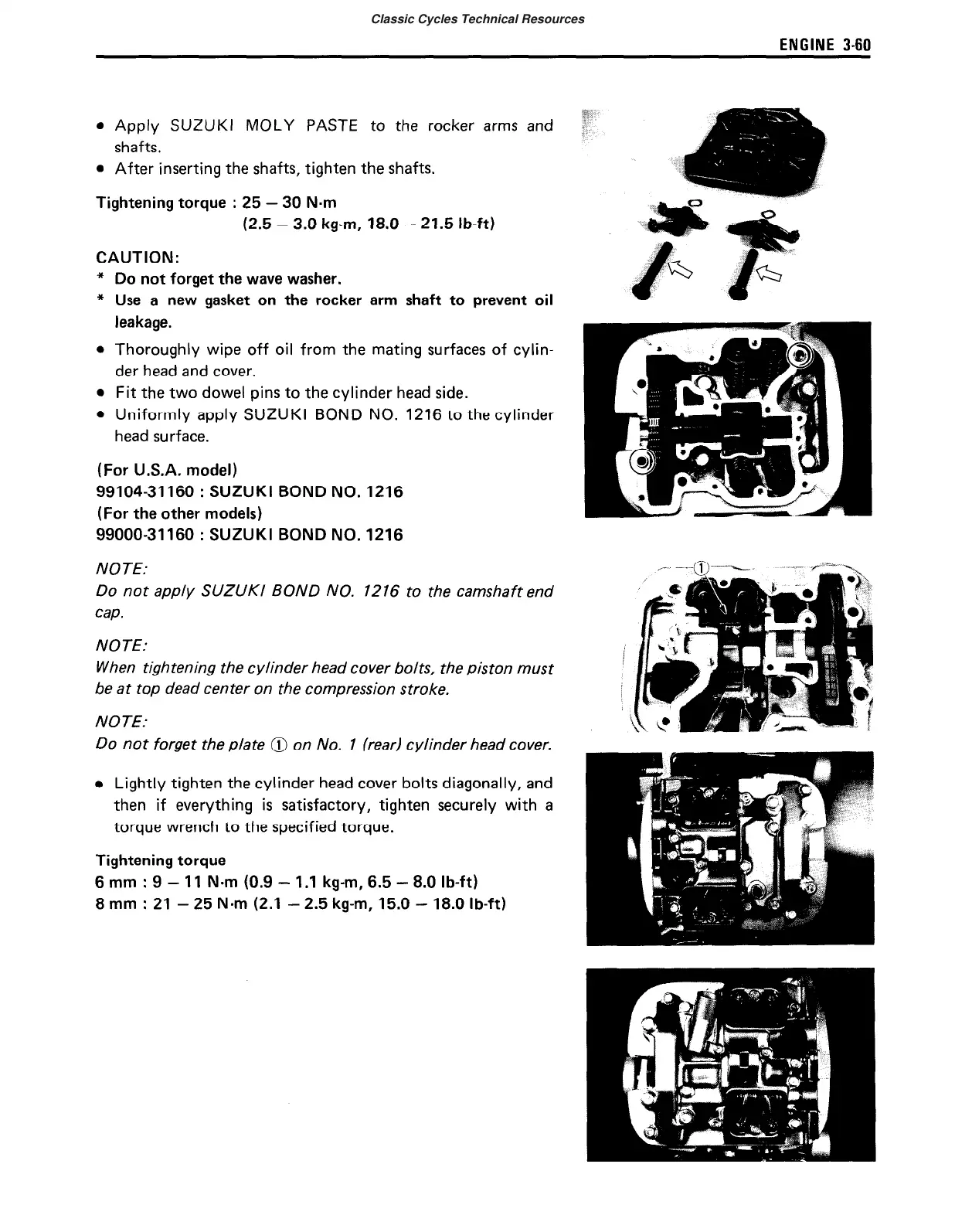

ENGINE 3-60
l
Apply SUZUKI MOLY PASTE to the rocker arms and
shafts.
l
After inserting the shafts, tighten the shafts.
Tightening torque
:
25 - 30 N-m
(2.5 - 3.0 kg-m, 18.0 - 21.5 lb-ft)
CAUTION:
Do not forget the wave washer.
Use a new gasket on the rocker arm shaft to prevent oil
leakage.
Thoroughly wipe off oil from the mating surfaces of cylin-
der head and cover.
Fit the two dowel pins to the cylinder head side.
Uniformly apply SUZUKI BOND NO. 1216 to the cylinder
head surface.
(For U.S.A. model)
99104-31160
:
SUZUKI
(For the other models)
99000-31160
:
SUZUKI
NOTE:
BOND NO. 1216
BOND NO. 1216
Do not apply SUZUKI BOND NO. 1216 to the camshaft end
cap.
NOTE:
When tightening the cylinder head cover bolts, the piston must
be at top dead center on the compression stroke.
NOTE:
Do not forget the plate @ on No. 1 (rear) cylinder head cover.
l
Lightly tighten the cylinder head cover bolts diagonally, and
then if everything is satisfactory, tighten securely with a
torque wrench to the specified torque.
Tightening torque
6 mm : 9 - 11 N-m (0.9 - 1 .l kg-m, 6.5 - 8.0 lb-ft)
8 mm
:
21 - 25 N-m (2.1 - 2.5 kg-m, 15.0 - 18.0 lb-ft)
