Sveaverken F100 Auto Steer System Software User Manual

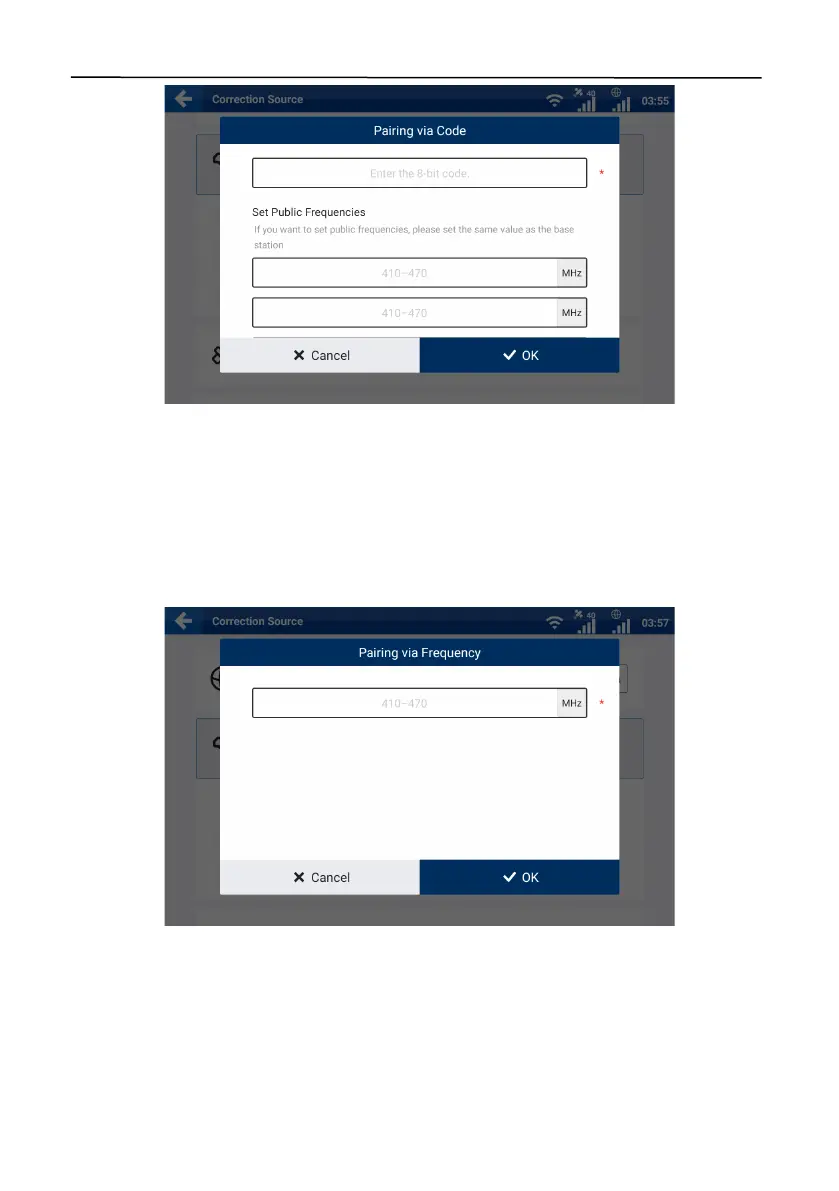

Figure 12.
Pair via code
Pairing via Frequency
Tap
Mobile Base Station RTK
, and select
Pairing via Frequency
. In the popup dialog, enter the
frequency of the base station and tap
OK
. The frequency must be 410 MHz to 470 MHz with a
maximum of five decimal places. For details about the base station's frequency, refer to its user
manual.
Applicable base stations: Sveaverken high-power base stations whose service codes start with FQ.
Figure 13.
Pair via frequency
Pairing with Base Stations of Other Brands
Power on the base station, and set its frequency, over-the-air baud rate, and radio communication
protocol on the base station. Tap
Mobile Base Station RTK
, and select
Other Base Station
. In the
popup dialog, set the same frequency, over-the-air baud rate, and radio communication protocol,
and then tap
OK
. For details about the parameter settings of the base station, refer to its user
