6.3.8 Implement Library
Tap
Implement Library
on the
DEVICE SETTINGS
screen to configure implement parameters. Refer
to section 2.9 "Setting Implement Parameters" for details.

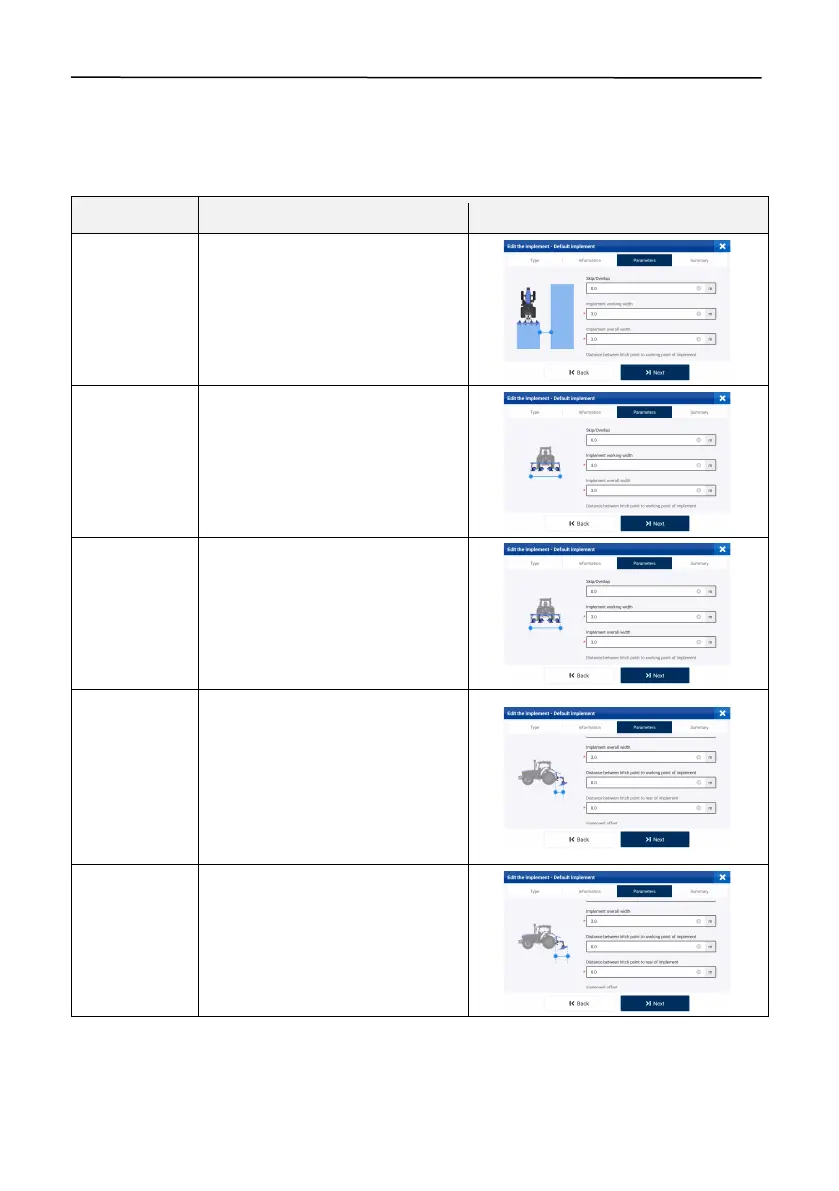

Implement Parameters
Parameter
Description
Illustration
Skip/Overlap
The spacing between two adjacent
rows.
Implement
working width
The actual working width of the
implement. It is used to plan the
guidance line spacing.
Implement
overall width
The total width of the implement. It
is used to reserve the safety
distance during automatic path
planning.
Distance
between hitch
point to
working point
of implement
The vertical distance between the
working point of the implement
and the hitch point of the tractor.
It is used to determine the
accurate position of the working
point.
Distance
between hitch
point to rear
of implement
The total length of the implement.
It is used to reserve the safety
distance during automatic path
planning.
