24 A-96.250.531 / 300617
AMI Oxytrace QED
Installation

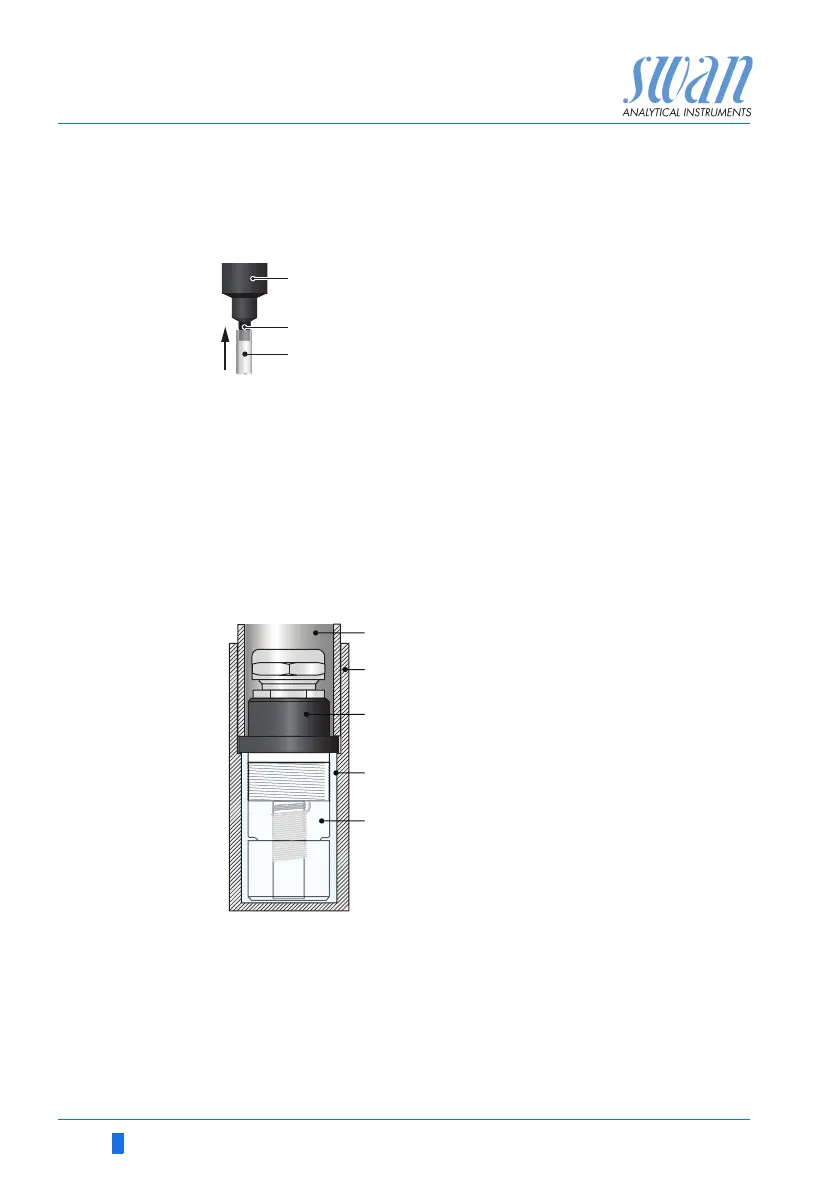

3.3.2 FEP Tube at Sample Outlet
1/2” Tube at waste funnel.
Connect the 1/2” tube [C] to the hose nozzle [B] and place it into a
drain with atmospheric pressure.
3.4 Install the Swansensor Oxytrace G
The Swansensor Oxytrace G is delivered with prefilled electrolyte
chamber [E]. A transport protection cap [B] filled with water [D]
keeps the sensor wet during transport and storage. To install the
sensor proceed as follows:
1 Unscrew the fixing sleeve [A].
2 Remove the transport protection cap [B].
3 Clean the Swansensor Oxytrace G [C] with water.
4 Install the Swansensor Oxytrace G into the flow cell
5 Connect the sensor cable to the transmitter, see Electrical Con-
nection Diagram AMI Oxytrace, p. 27.
A
B
C
Waste funnel
Hose nozzle
1/2” tube
A
B
C
A
B
C
D
E
Fixing sleeve
Transport protection cap
Swansensor Oxytrace G
Water
Sensor cap filled with electrolyte
A
B
C
D
E
