AMI Oxytrace QED
Operation

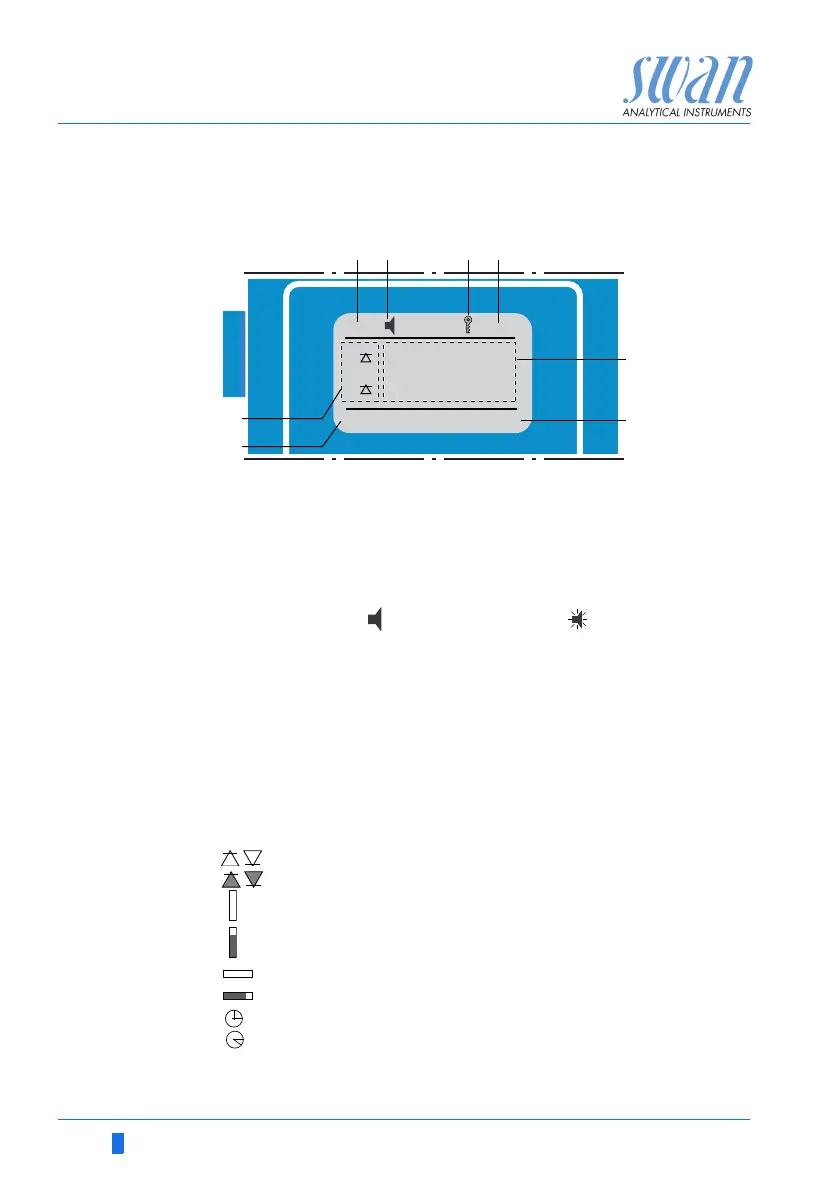

5.2. Display
Relay status, symbols
A RUN normal operation
HOLD input closed or cal delay: Instrument on hold (shows
status of signal outputs).
OFF input closed: control/limit is interrupted (shows status
of signal outputs).
B ERROR Error Fatal Error
C Keys locked, transmitter control via Profibus
D Time
E Process values
F Sample Temperature
G Sample flow in i/h
H Relay status
upper/lower limit not yet reached
upper/lower limit reached
control upw./downw. no action
control upw./downw. active, dark bar indicates control intensity
motor valve closed
motor valve: open, dark bar indicates approx. position
timer
timer: timing active (hand rotating)
RUN
23 °C
12 l/h
15:20:18
R1
R2
ppm
0.15
AB CD
F
E
G
H
