3.8. Signal Outputs
3.8.1 Signal output 1 and 2 (current outputs)
NOTICE: Max. burden 510 Ω.
If signals are sent to two different receivers, use signal isolator
(loop isolator).
Signal output 1: Terminals 14 (+) and 13 (-)
Signal output 2: Terminals 15 (+) and 13 (-)
Programming see menu 5.2 Signal Outputs, p. 75
3.9. Interface Options
The slot for interfaces can be used to expand the functionality of
the AMI instrument with either:
 an additional signal output
 a Profbus or Modbus connection
 a HART connection
 an USB Interface
A
B
C
D

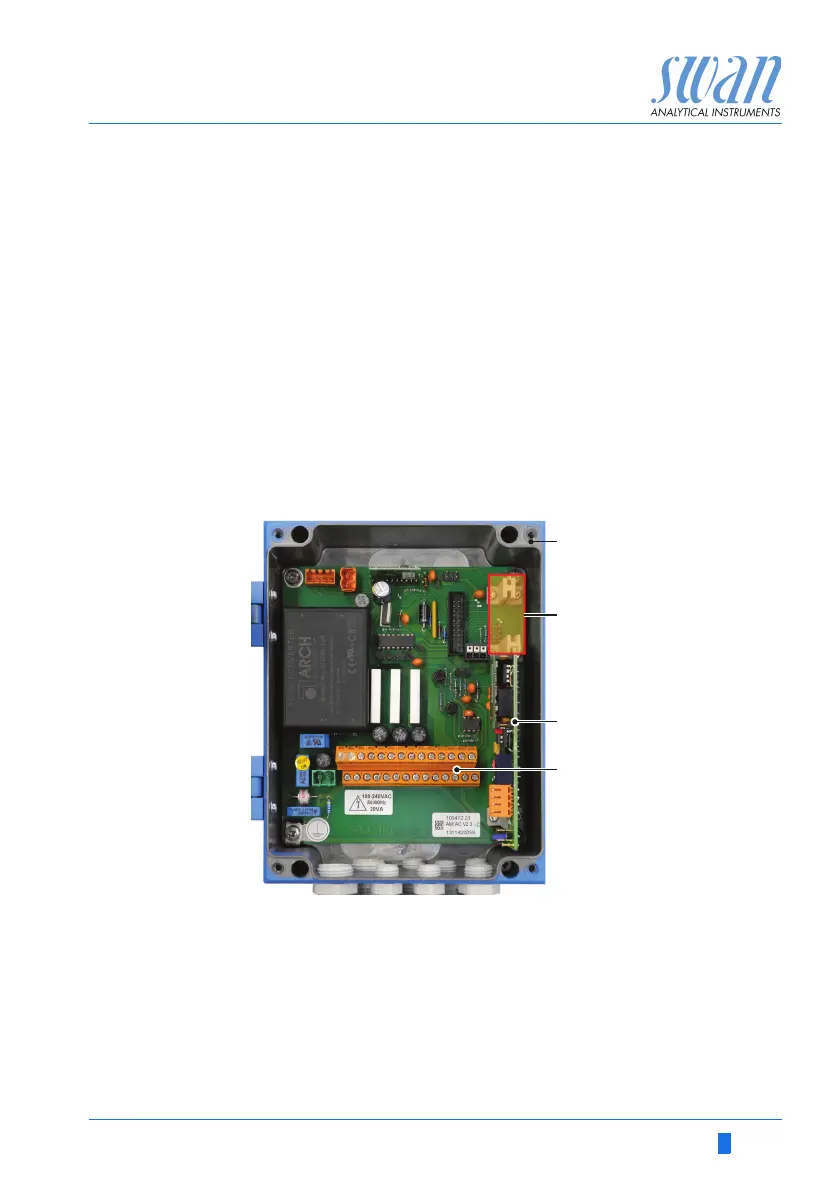

AMI Transmitter
Slot for interfaces
Frontend PCB
Screw terminals
