Sylvac Hi Cal User Manual

22
CH-1400 Yverdon-les-Bains (Suisse)
Echelle
381 / 531 / 681
95
17
101
111
31
124 / 194 / 194
187 / 187 / 187
92 / 92 / 92
55
147 / 147 / 147
Ensemble général 150
2:5
Dess.:
08-Jun-20 DNi
Modèle:302_150_101{.prt/asm}
Liste de pces selon nomenclature:
-
A3
1/1
PM 302.150.101 -
Matière:
- - -
Chanfreiner:
Article:
M302-150-101
Trait. thermiques:
-
Masse / Volume:
44513824299.110 g
Trait. de surfaces:
-
Cotes non tolérancées selon SN EN 22768-1 / Classe f (fine), tolérances indiquées en 1/1000 mm
Indice Date Nom Modification
-
UP :
balance setting for hea-
vier probes (depth, 90°,
extended measuring
DOWN :
standard probe weight
setting

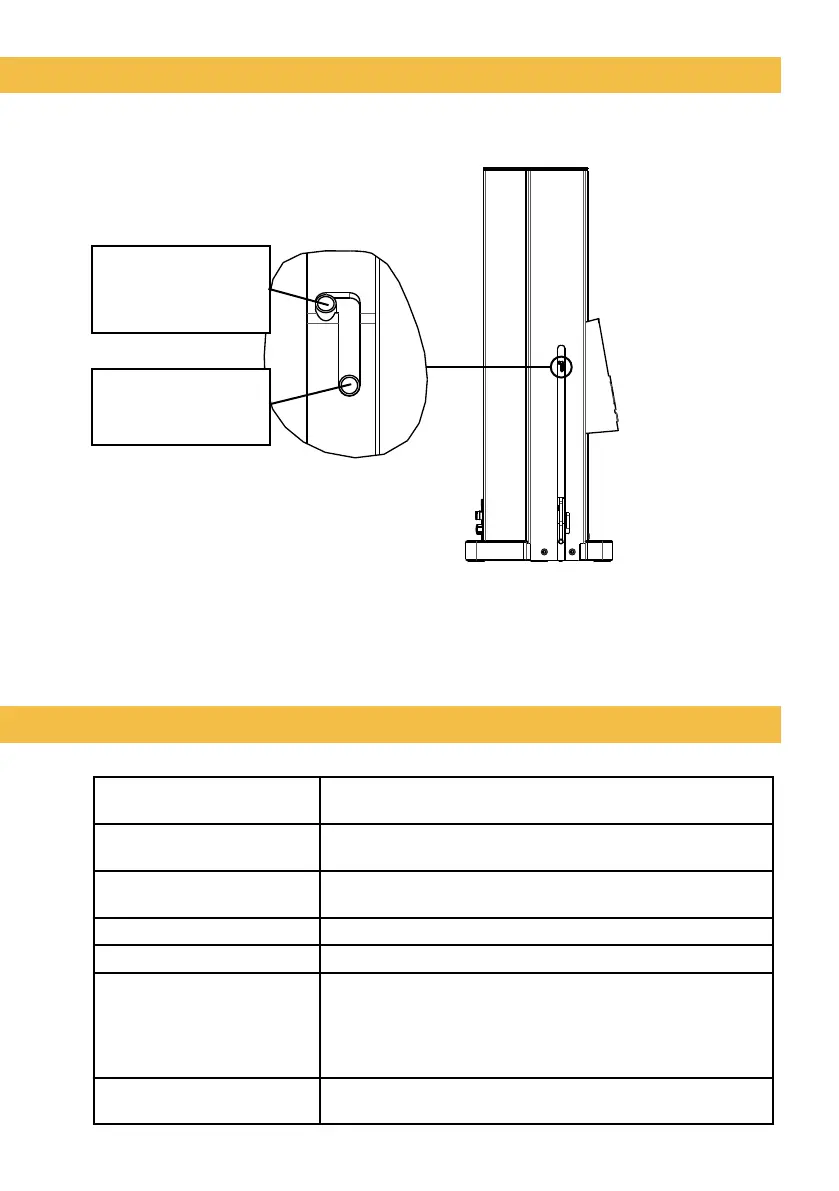

Adjusting the cursor balance
The weight adjustment selector enables two di󰀨erent setting:
The weight adjustment selector enables with a screwdriver 00 or a pen.
Error messages
Err0 Measurement error of the main sensor. Acknowledge via SET,
new reference tap.
Err0.540 Measurement error of the UP/DOWN button sensor. Release
and acknowledge via SET
Err0.550 Measurement error of the relative sensor. Release the mea-
suring key and acknowledge with SET.
Err1 Parity error in an ASCII RS232 | USB command
Err2 RS232 control | USB ASCII
Err6 Error when initializing the centering of the measuring range.
Check the following points and restart the instrument:
- Does the measuring key move freely?
- Is the selector switch for key weight compensation correctly set?
? (see chapter «Adjusting the selector switch»)»
PrObE Measuring key blocked. Release measuring key (when initiali-
zing the instrument)
