The value is sent in ASCII code :
mm :
Example: ±123.456
Comments: - 10
-3
only for 0.001 mm resolution
- 10
-4
only for 0.0005 mm resolution
- there is no space between the sign and the rst numeral
Inches :
Example: ±12.34565
Comments : - 10
-3
only for 0.00005 and 0.00002 inch resolution
- there is no space between the sign and the rst numeral
SIGN 10
2
10
1
10
0
DP 10
-1
10
-2
10
-3
CR
SIGN 10
1
10
0
DP 10
-1
10
-2
10
-3
10
-4
10
-5
CR

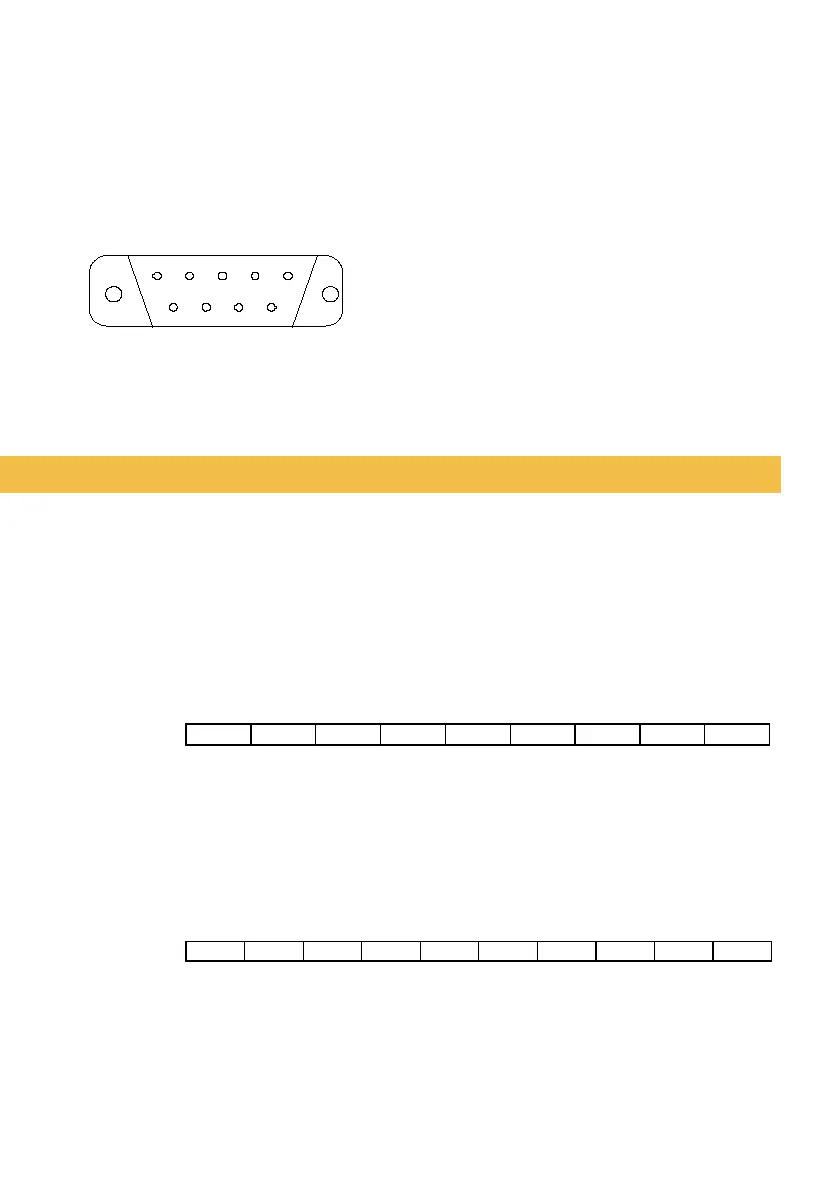

Data transmission format
Data transmission format:
4800 bds, 7 data bits, even parity, 1 stop bit.
5 4 3 2 1
9 8 7 6
Important : It is not recommended to use the USB and RS232 outputs
simultaneously.
Female 9 pin D-Sub connector (seen from the outside):
• Pin 1 : 9V DC output (only with
adapter connected)
• Pin 2 : RXD (RS232 output of
the Hi_Cal)
• Pin 3 : TXD (RS232 input from
the PC)
• Pin 5 : SG signal ground
