How to Replace Hard Disk Backplane for 8 bay/5 bay DiskStation
Page 17 of 39
Date: 2014/4/11
Issued by: Hardware Development Group, Synology
®
Inc.

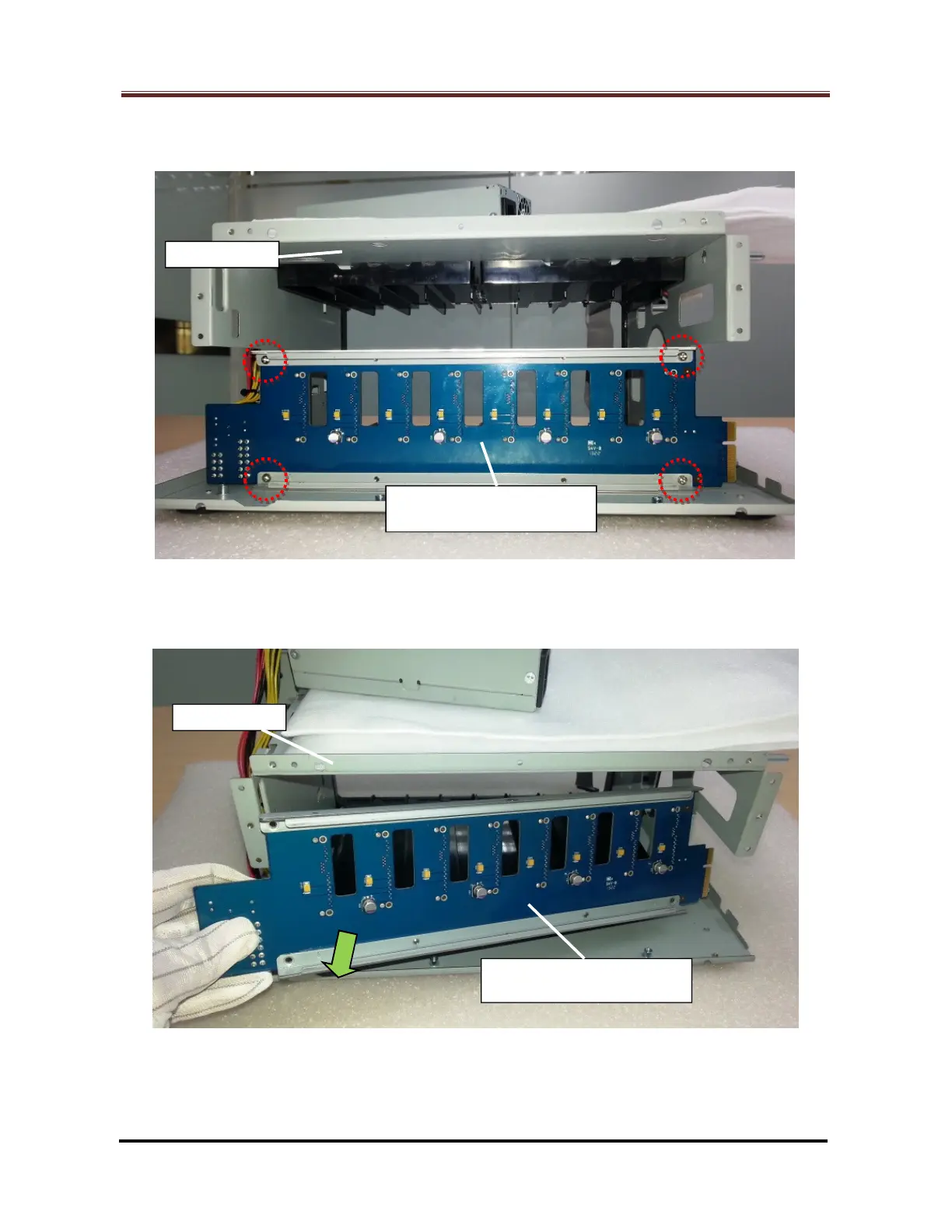

 Release the four (4) screws (Marked by the red circles) which fix the defective
HDD backplane assembly. (Fig. 25)
Fig. 25
 Remove the defective HDD backplane assembly. (Fig. 26)
Fig. 26
HDD Chassis
Defective HDD Backplane
–
Back Side
HDD Chassis
Defective HDD Backplane
–
Back Side
