How to Replace Hard Disk Backplane for 8 bay/5 bay DiskStation
Page 18 of 39
Date: 2014/4/11
Issued by: Hardware Development Group, Synology
®
Inc.

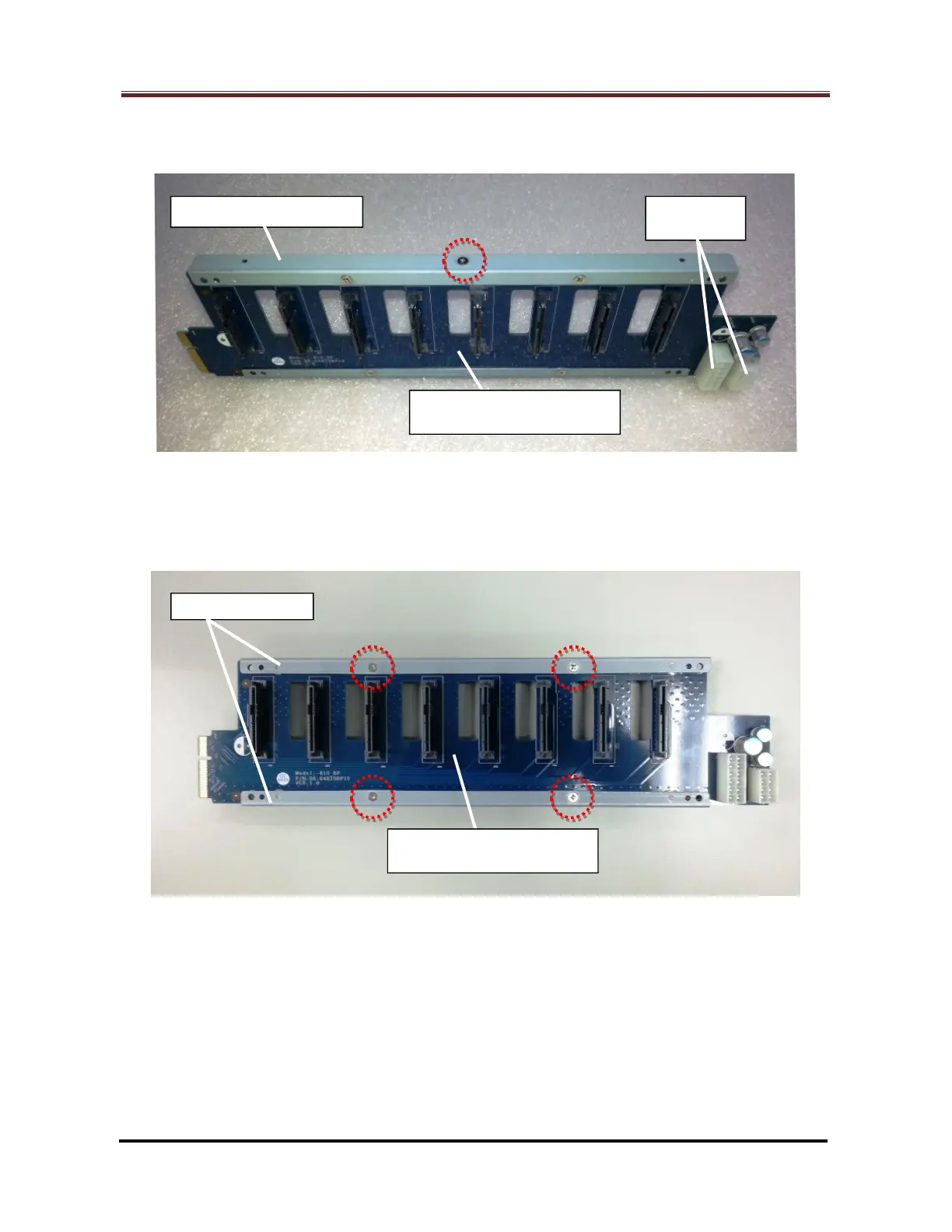

 Release the screw on top of the upper metal frame (Marked by the red
circles). (Fig. 27)
Fig. 27
 Release the four (4) screws (Marked by the red circles) to remove the
defective HDD backplane from the two sets of metal frame. (Fig. 28)
Fig. 28
Metal Frame Set
Upper Metal Frame Set
Defective HDD Backplane
–
SATA Connector Si
de
Defective HDD Backplane
–
SATA Connector Side
PSU Cable
Connector
