Synology DS1813+ - Page 20

How to Replace Hard Disk Backplane for 8 bay/5 bay DiskStation
Page 20 of 39
Date: 2014/4/11
Issued by: Hardware Development Group, Synology
®
Inc.

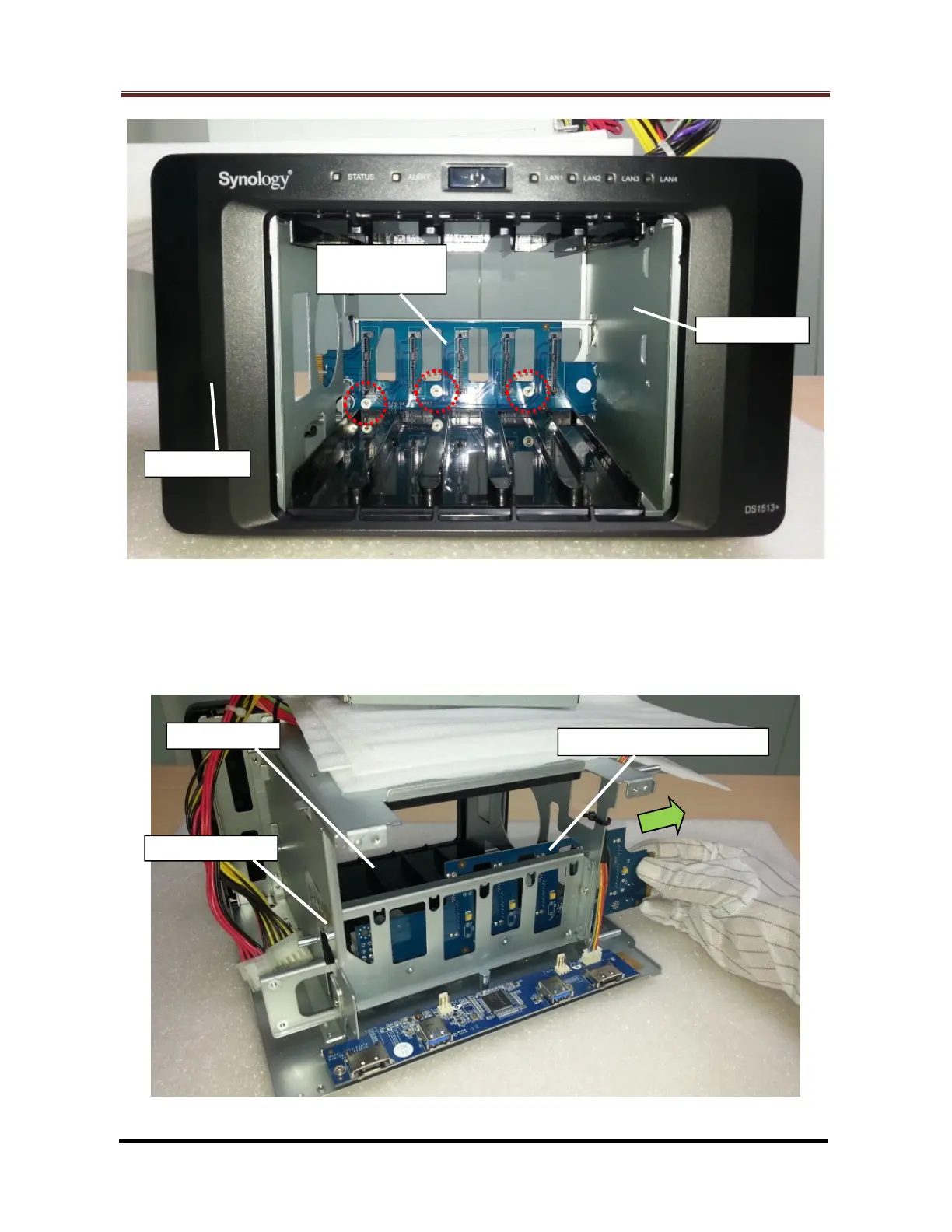

Fig. 31
 Bring the defective HDD backplane through the opening on the HDD chassis
to remove it. (Fig. 32) Do not damage the aluminum foil pasted on the HDD
chassis when moving the backplane.
Fig. 32
Front Panel
HDD Chassis
Defective HDD
Backplane
HDD Chassis
Defective HDD Backplane
Aluminum Foil
