5.3 Starting up
Before the power is switched on
The following should be carried out before switching on the
power:
1. Check that sensors and actuators are connected correctly.
2. Set the changeover switch to configuration. It is possible to gain
access to the changeover switch by pulling out the quick
reference and removing the plastic disk in front of it.
3 Switch on the power to the controller.
4 Set the clock (see chapter 4).
The controller should now control using pre-set parameters.

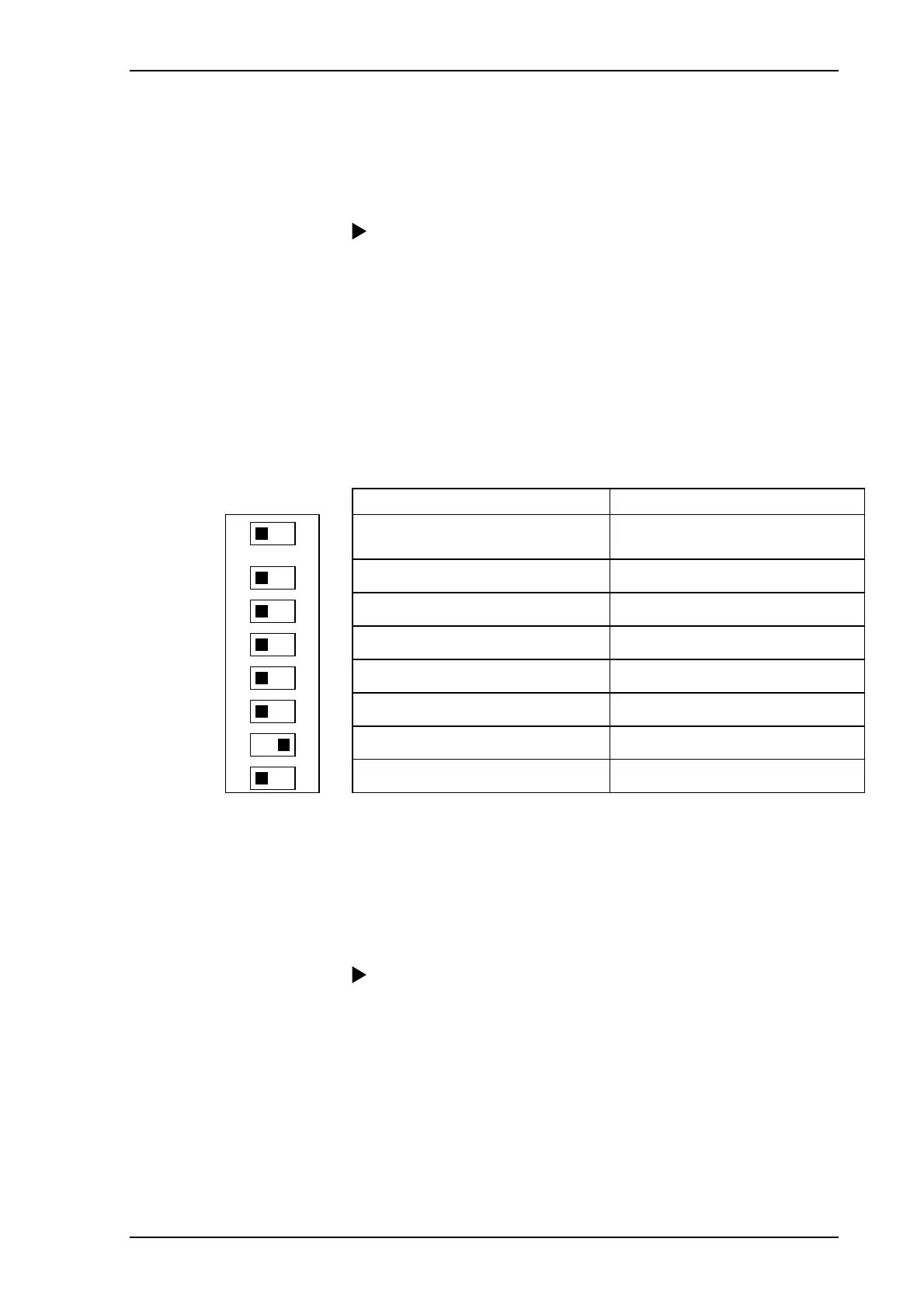

off on off on
1
Outdoor sensor connected Outdoor sensor from another
TAC 2000
2
No reference sensor Reference sensor connected
3
- -
4
- -
5
- -
6
- -
7
- -
8
Normal operation Resetting controller
Testing inputs and outputs
To test inputs and outputs, you need to read off and set parameters
using the operator panel. Skip any tests which are not relevant to your
installation.
Procedure for testing inputs and outputs:
1. Check that all the temperatures are reasonable. Follow the
instructions in chapter 4.
2. Ensure that the controller is in the “timed operation” operating
mode. There is a description of how to set the operating mode in
chapter 4.
3 Close input X2 (extended daytime operation) to measurement
neutral (M) and check that the clock and the flashing sun appear
in the display window.
