12 SYSTEM BALANCING
12.1 About SelfSensing ProBalance
The pump is equipped with SelfSensing ProBalance
TM
technology. SelfSensing ProBalance
TM
technology is a
revolutionary system balancing method that utilizes the
VFD’s SelfSensing capabilities to enable the user to
accomplish easy do-it-yourself system balancing.
This guide provides a method to reset the control curve
previously discussed in Section 10.2. The goal is to
move the adjusted operating point at design flow so that
it falls on the actual system resistance curve (Point C in
Figure 12-3).

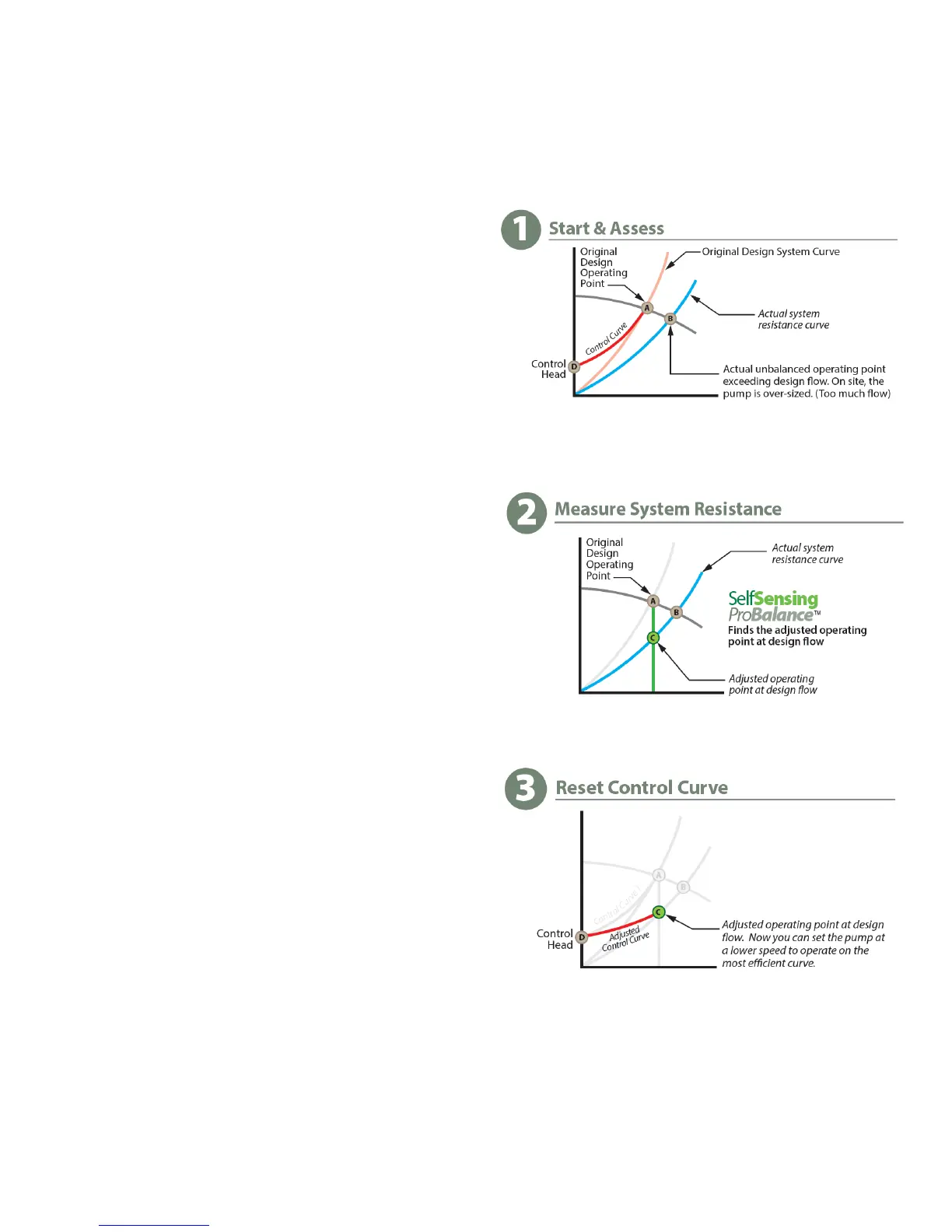

12.1.1 A Visual Guide to Balancing
Below is a graphical guide and overview of the balancing
process.
Figure 12-1: Start and Assess
For information about the step above, see sections 11.3
and 11.4.
Figure 12-2: Measure System Resistance
For information about the step above, see section 12.3.1.
Figure 12-3: Reset Control Curve
For information about the step above, see section 12.3.2.
