6.4 ADDING ADDITIONAL VENUE ITEMS

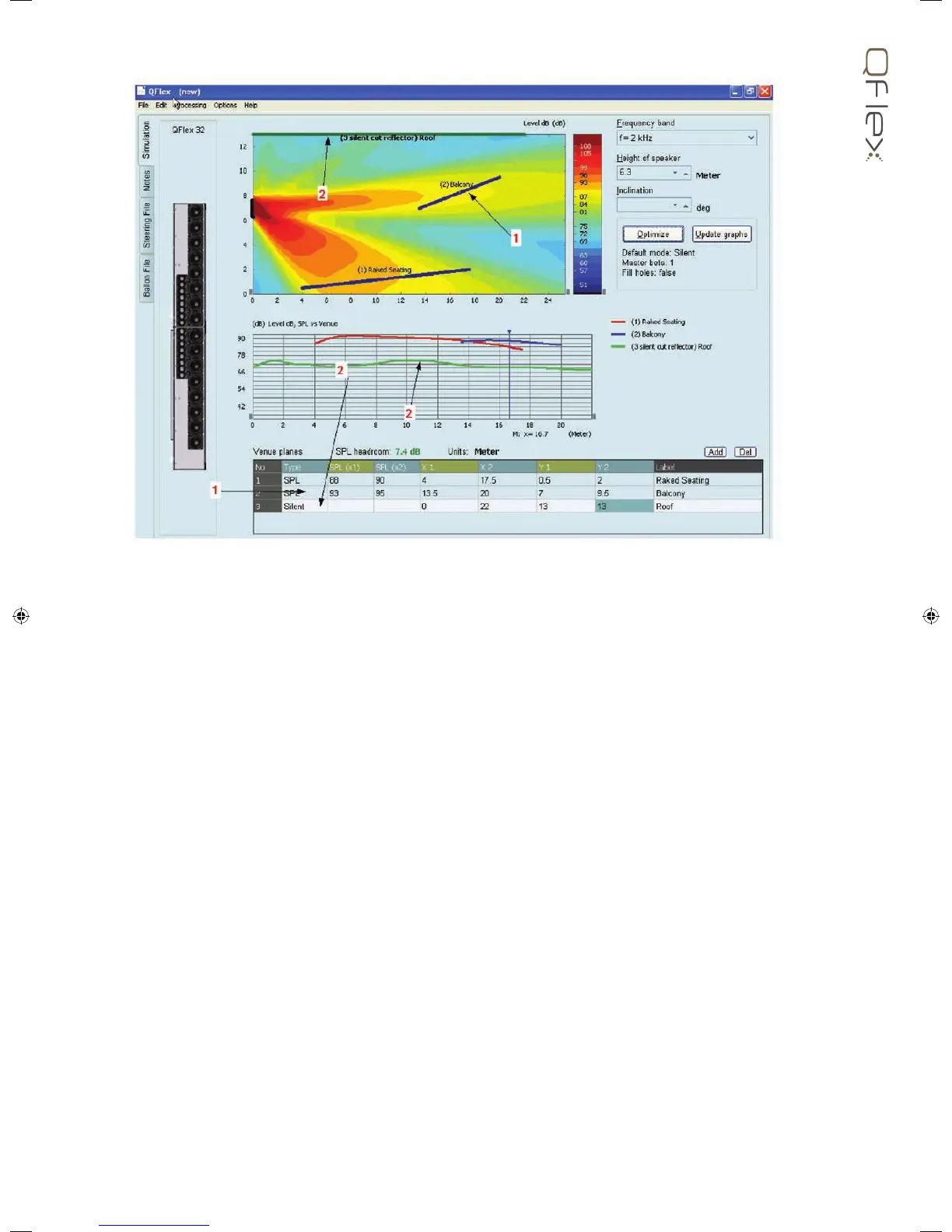

1. Here we have added a second venue plane, in this case a balcony. BeamEngine will automatically target the second
venue plane (no need to specify opening angles or steering angles). Note that the intensity of the second beam has
been manually increased to mach the SPL of the rst venue plane. Both beams can be independently manipulated in
this way. Additional venue planes can be added as necessary.
2. By specifying a ‘Silent’ venue plane, in this example placing it on the roof, you can view the amount of ‘out of beam
attenuation’ at any point in the venue. “Reector” is labeled a surface if it normally points downwards, i.e. it is part of
the ceiling. “Cut” is labeled a surface if it is illuminated by the speaker only partly.
