Tannoy Qflex

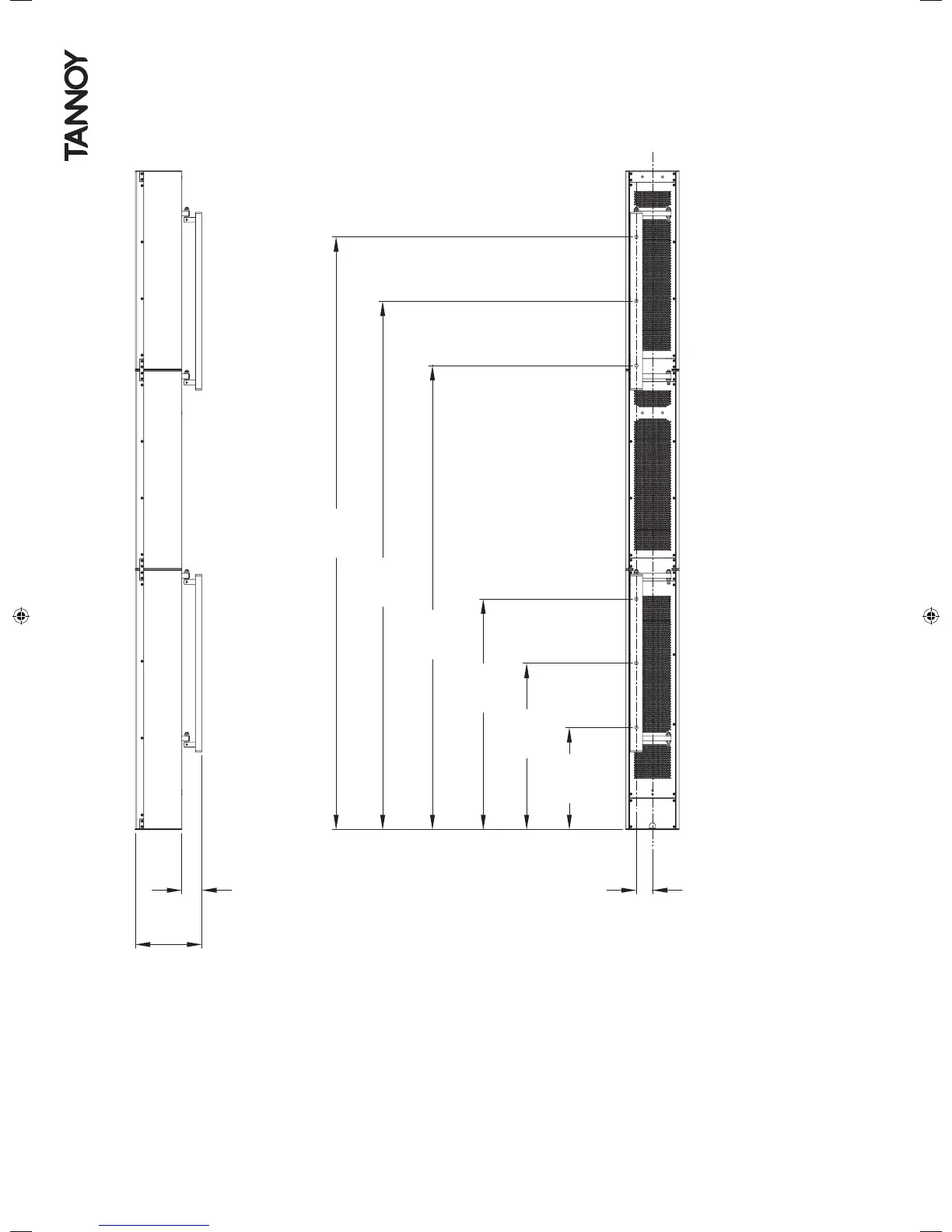

10.6 WALL BRACKET MOUNTING CENTRES - QFLEX 40
QFlex must be wall mounted with the separately ordered mounting kit. The Wall bracket should be tted to the wall rst.
When you are satised with the mounting locations, x the bracket to the wall using the instructions supplied with the
bracket and ensuring that the installation complies with all local regulations.
QFlex 40
171.5
[6.75"]
150.0
[5.91"]
2126.0
[83.70"]
214.5
[8.44"]
64.5
[2.54"]
329.5
[12.97"]
537.0
[21.14"]
744.5
[29.31"]
1498.0
[58.98"]
1705.5
[67.15"]
1913.0
[75.31"]
52.0
[2.05"]
