6.7 BALLOON DATA
EASE™ and CATT Acoustic™
Where more than one QFlex array is deployed in an installation it may be necessary or demanded to carry out a more
resolute acoustical analysis of the room. To properly evaluate QFlex coverage in 3D you can export a conguration le
from BeamEngine which can be used in Ease™ and CATT Acoustic™

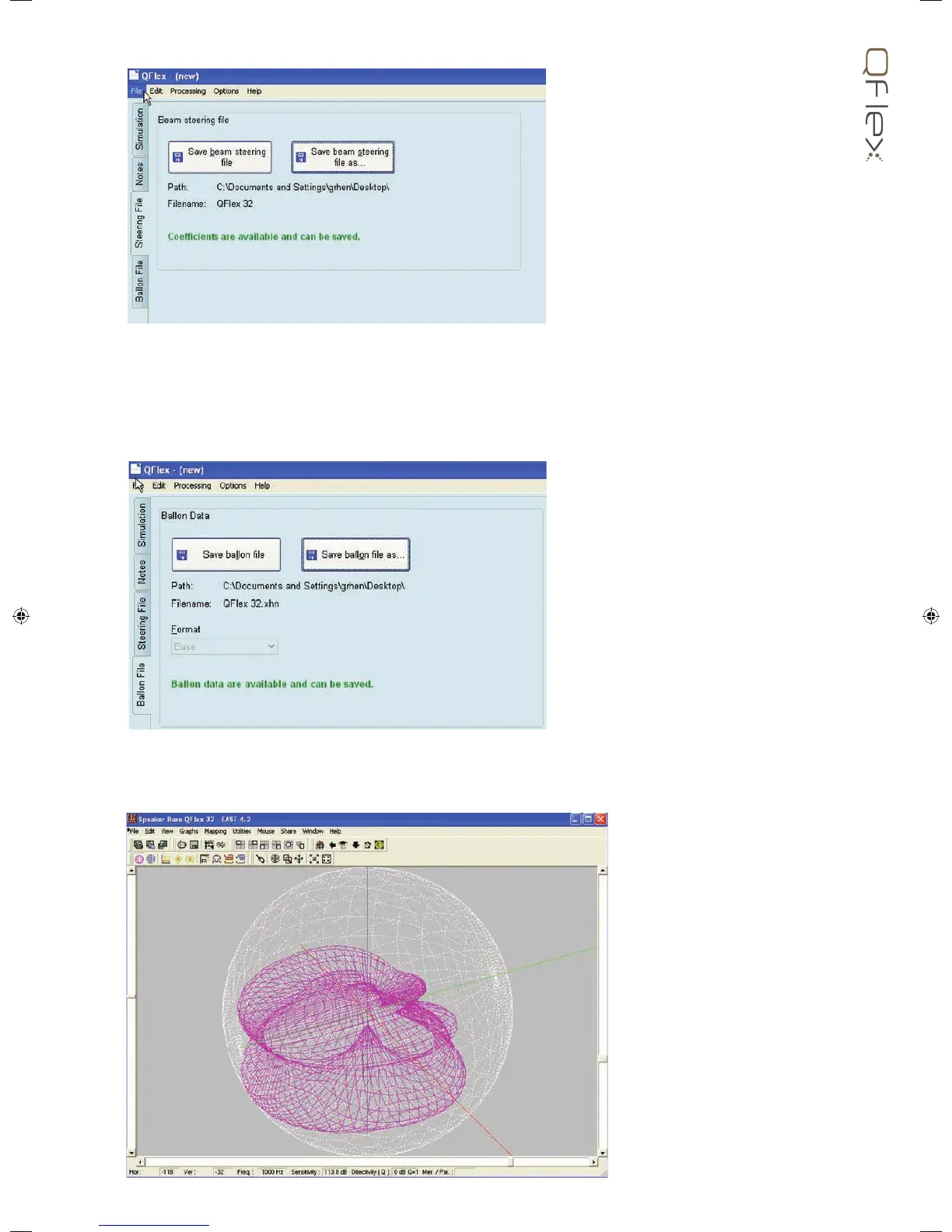

Click on the ‘Balloon File’ tab.
The name of the le automatically defaults to the QFlex model you are using. In this case ‘QFlex32.xhn’ This name can
be modied. The le is saved in ASCII format and can be imported into the third party programme and the resultant
balloon data viewed.
