10 ASSEMBLY INSTRUCTIONS
10.1 QFLEX 8 & QFLEX 16 ASSEMBLY

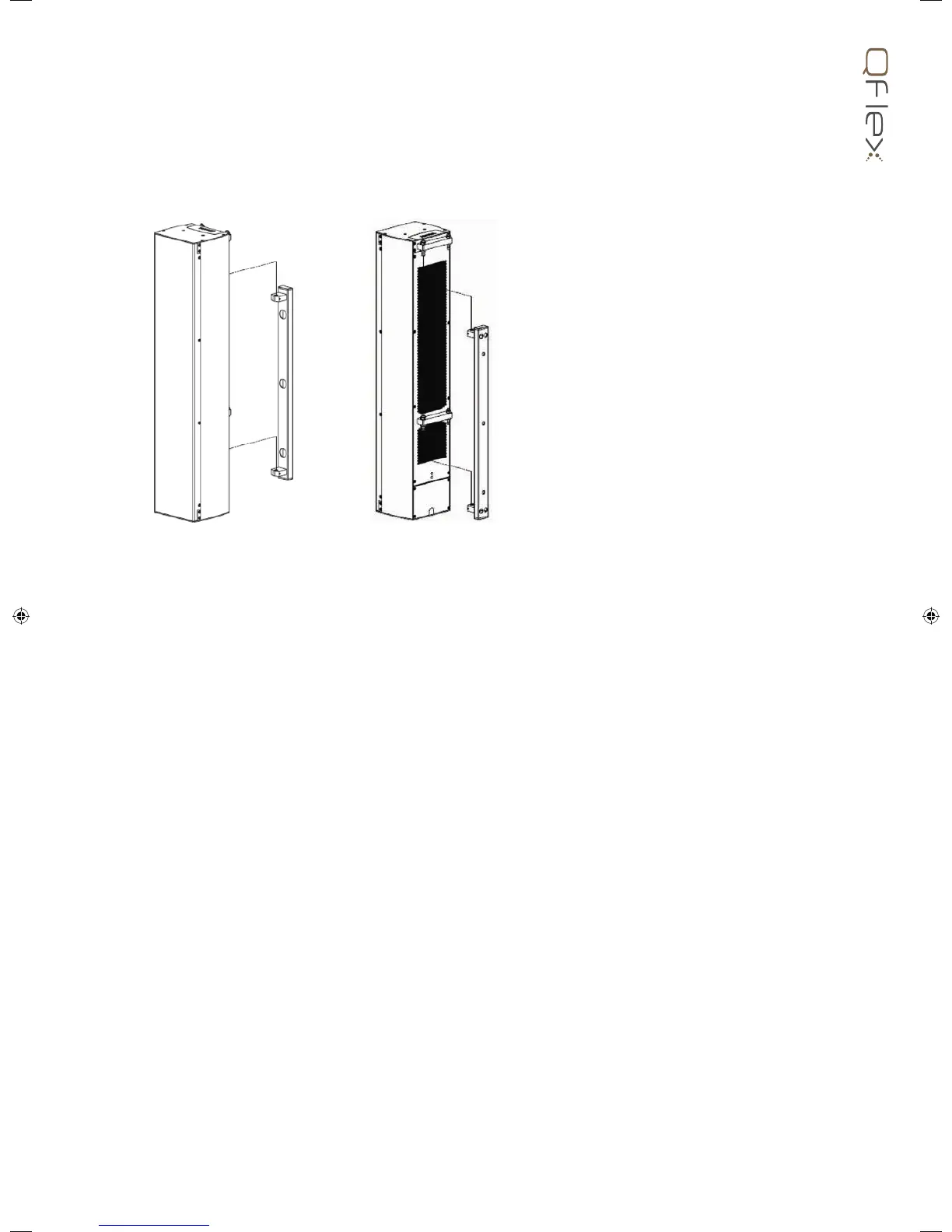

With a QFlex 8 and QFlex 16 all you need to do is remove the loudspeaker from the box and x the wall bracket as
shown below. The wall bracket can be hinged on the left or right pivot points. 3mm Allen grub screws allow the QFlex to
be locked at the desired horizontal angle.
Having the hinge points on either side of the QFlex column allow the loudspeaker to be rotated at 90 degrees to the
mounting structure allowing easy access to the input connector panel.
The installer must ensure that the mounting surface is capable of safely and securely supporting the loudspeaker. Seek
help from architects, structural engineers or other specialists if in any doubt.
