11 SYSTEM CONNECTIVITY
NOTE, QFlex is a professional product intended for installation by properly qualied and certicated personnel.
Cable Management
All connections (AC, Network, and Signal) are accessed at the bottom of the QFlex column. This allows for neat,
unobtrusive cable management in your installation. The connectors will not be visible when installation is complete.
Connections are accessed by the removal of the lower rear access plate on a QFlex master which will require the
use of a Philips screwdriver.

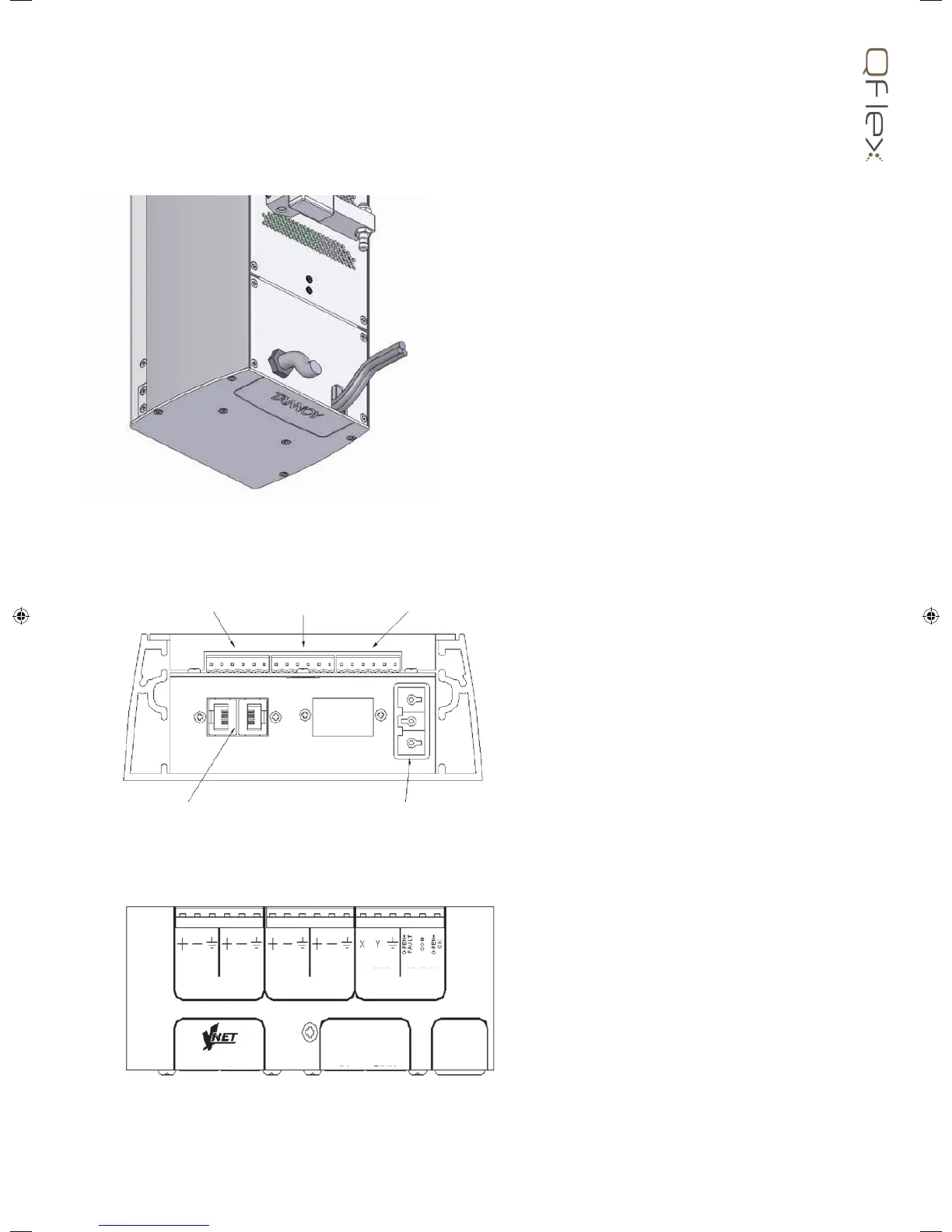

With the plate removed the connector areas look like this
END VIEW
TOP VIEW
AUDIO IN
AUDIO LINK CONTROL
A
B
A
B
MODE STATUS
IN LINK
IN LINK
DIGITAL
AUDIO
POWER
100-230v
50-60 Hz
1kW MAX
MAINS IN
VNET
IN & LINK
SYSTEM
AUDIO A&B
LINK
AUDIO A&B
IN
