2. Install the beater driveshaft through the rear shell
bearing in the freezing cylinder and engage the
square end firmly into the driveshaft coupling. Make
sure the driveshaft fits into the drive coupling without
binding. (
See Figure 6-4.)

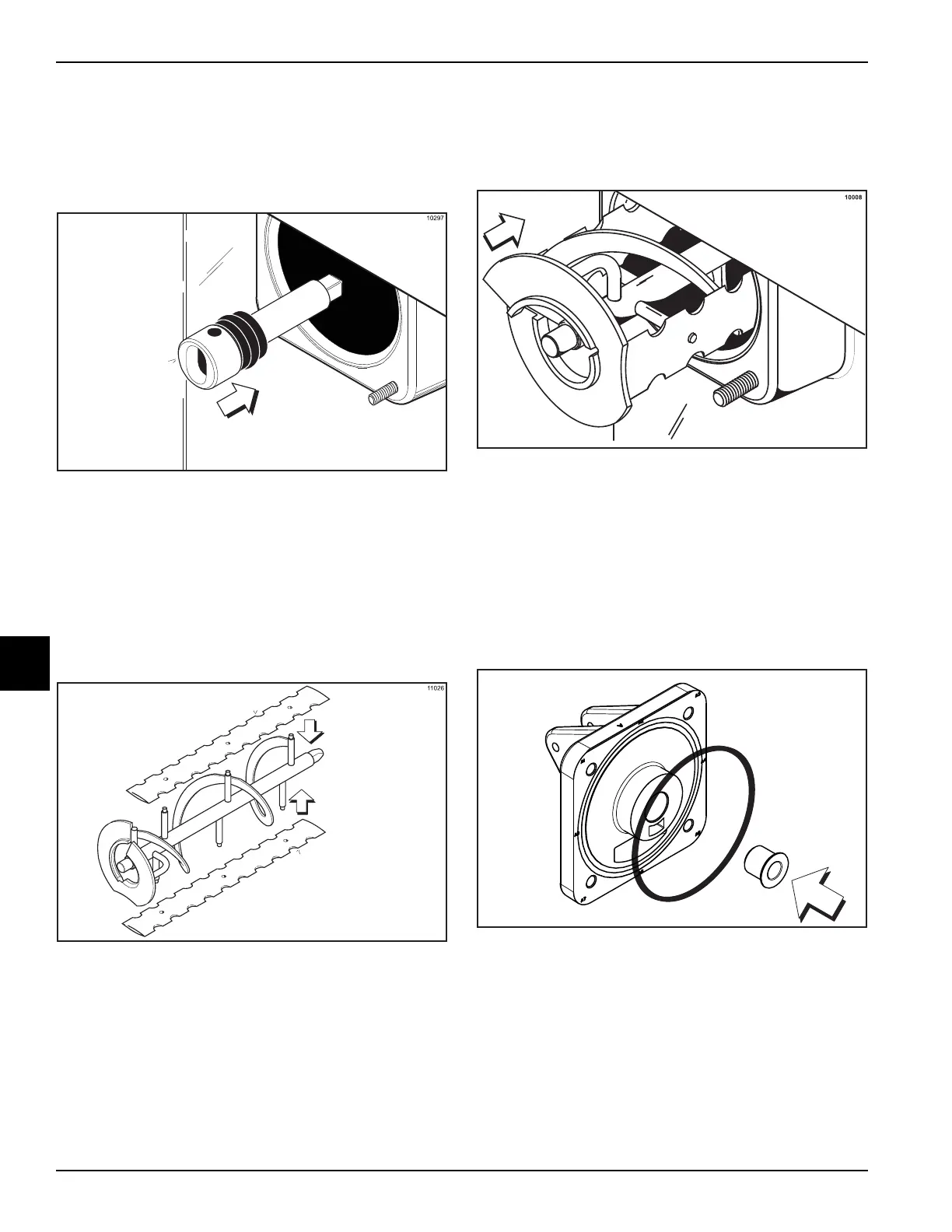

Figure 6-4
3. Check scraper blades for any nicks or signs of wear.
If any nicks are present, replace the blades.
Note: Scraper blades should be replaced every 
6 months.
4. If blades are in good condition, place each scraper
blade over the holding pins on the beater assembly.
(
See Figure 6-5.)
Figure 6-5
Note: The holes in the scraper blade must fit over
the pins to prevent damage.
5. Hold the blades on the beater assembly. Insert the
back of the beater assembly into the freezing cylinder
and connect the drive hole with the driveshaft.

(See Figure 6-6.)
Figure 6-6
Note: When properly seated, the beater will not
protrude beyond the front of the freezing cylinder.
6. Place the freezer door O-ring into the groove on the
back of the freezer door. Do not lubricate the

O-ring. Lubricate the outside diameter of the front
bearing. Slide the front bearing into the door hub.
(
See Figure 6-7.)
Figure 6-7
7. Install the freezer door. Position the freezer door on
the four studs on the front of the freezing cylinder.
Install the handscrews. Tighten equally in a
crisscross pattern to ensure the door is snug. Do not
overtighten. (
See Figure 6-8.)
